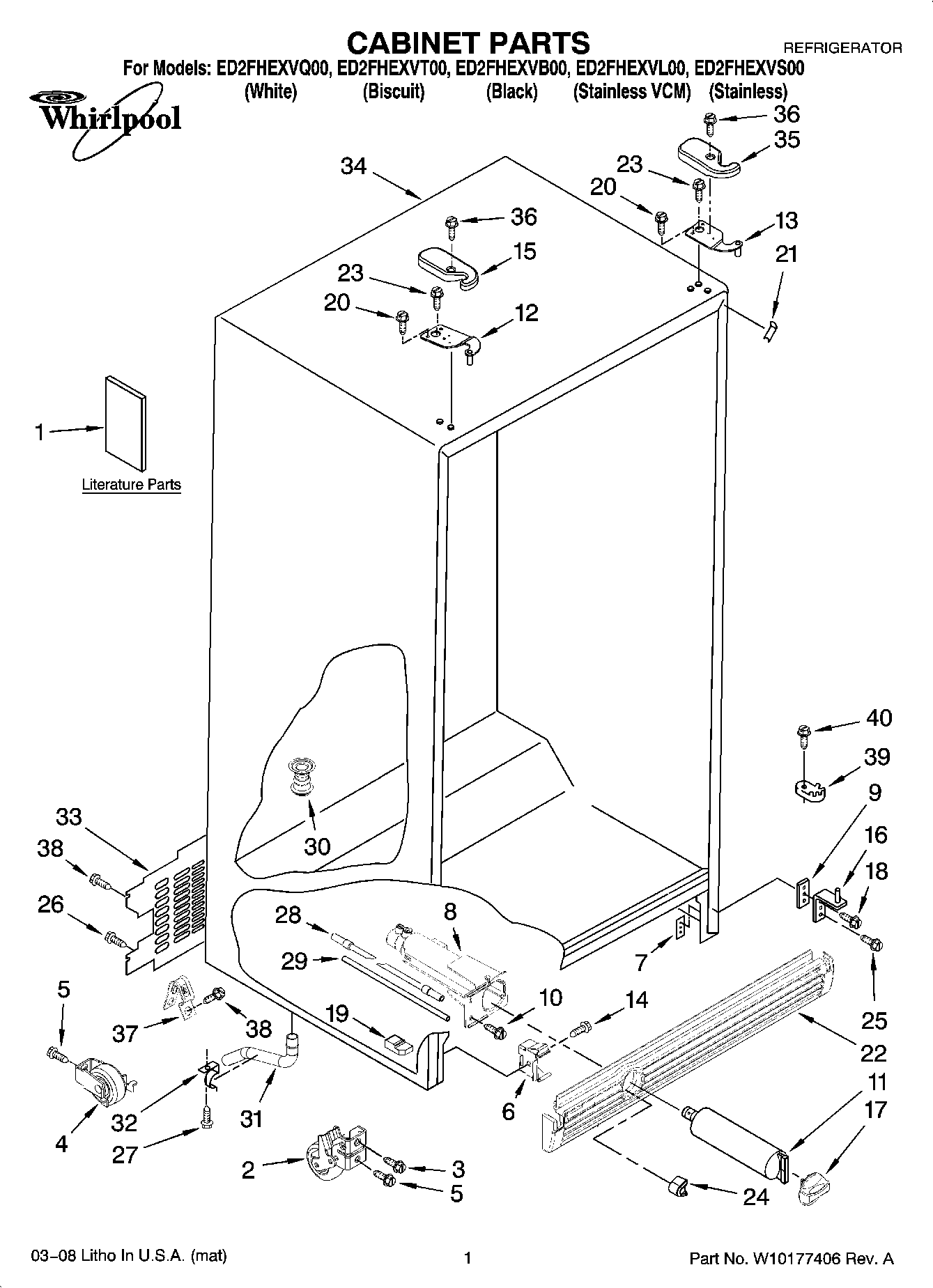

ED2FHEXVS00 01 – CABINET PARTS

ED2FHEXVS00 01 – CABINET PARTS

Written by

in

ED2FHEXVS00 01 – CABINET PARTS

Products

Position	Product
1	Energy Label
1	Service & Wiring Sheet
1	INSTRUCTION SHEET (DOOR REMOVAL)
1	Modular Icemaker Service Sheet
1	Use & Care Guide
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2304249 Whirlpool Refrigerator Plate
8	WPW10121138 Whirlpool Refrigerator Water Filter Housing
9	WP2209697 Whirlpool Refrigerator Shim
10	WP489500 Whirlpool Refrigerator Screw
11	FILTER 3-SINGLE TEAL
12	WP2203770 Whirlpool Refrigerator Door Hinge
13	WP2203771 Whirlpool Refrigerator Door Hinge
14	WP489128 Whirlpool Refrigerator Screw
15	WP2203407B Whirlpool Refrigerator Cover
15	2203407T Whirlpool Refrigerator Cover
15	WP2203407W Whirlpool Refrigerator Cover
16	8201707 Whirlpool Door Hinge
17	WP2260518B Whirlpool Water Filter Cap
17	Cap, Water Filter (Biscuit)
17	WP2260518W Whirlpool Refrigerator Filter Cap
18	WP489497 Whirlpool Screw
19	Block, Housing Support
20	W10853301 Whirlpool Refrigerator Screw
21	WPW10283959 Whirlpool Refrigerator Filler
21	W10283958 Whirlpool Refrigerator Filler
21	W11252732 Whirlpool Refrigerator Filler
22	Grille (Black)
22	Grille (White)
22	Grille (Biscuit)
24	WP2260503B Whirlpool Refrigerator Button
24	2260503W Whirlpool Refrigerator Button
25	W10856122 Whirlpool Refrigerator Screw
26	WP488488 Whirlpool Refrigerator Screw
27	WP489464 Whirlpool Refrigerator Screw
28	WP2304697 Whirlpool Refrigerator Water Tube
29	WPW10350006 Whirlpool Refrigerator Water Tube
30	W11566763 Whirlpool Fitting
31	WP1108438 Whirlpool Refrigerator Extension
32	WP1108439 Whirlpool Refrigerator Clip
33	WP2188756 Whirlpool Refrigerator Unit Cover
34	Cabinet, (Not A Serviceable Part)
35	Hinge Cover (Biscuit)
35	WP2203408B Whirlpool Refrigerator Cover
35	WP2203408W Whirlpool Refrigerator Cover
36	WP8281227 Whirlpool Screw
37	549193 Whirlpool Refrigerator Power Clamp
39	WPW10329686 Whirlpool Door Cam Black
40	WP489483 Whirlpool Screw
