ED2FHEXVS02 08 – FREEZER DOOR PARTS

ED2FHEXVS02 08 – FREEZER DOOR PARTS

Written by

in

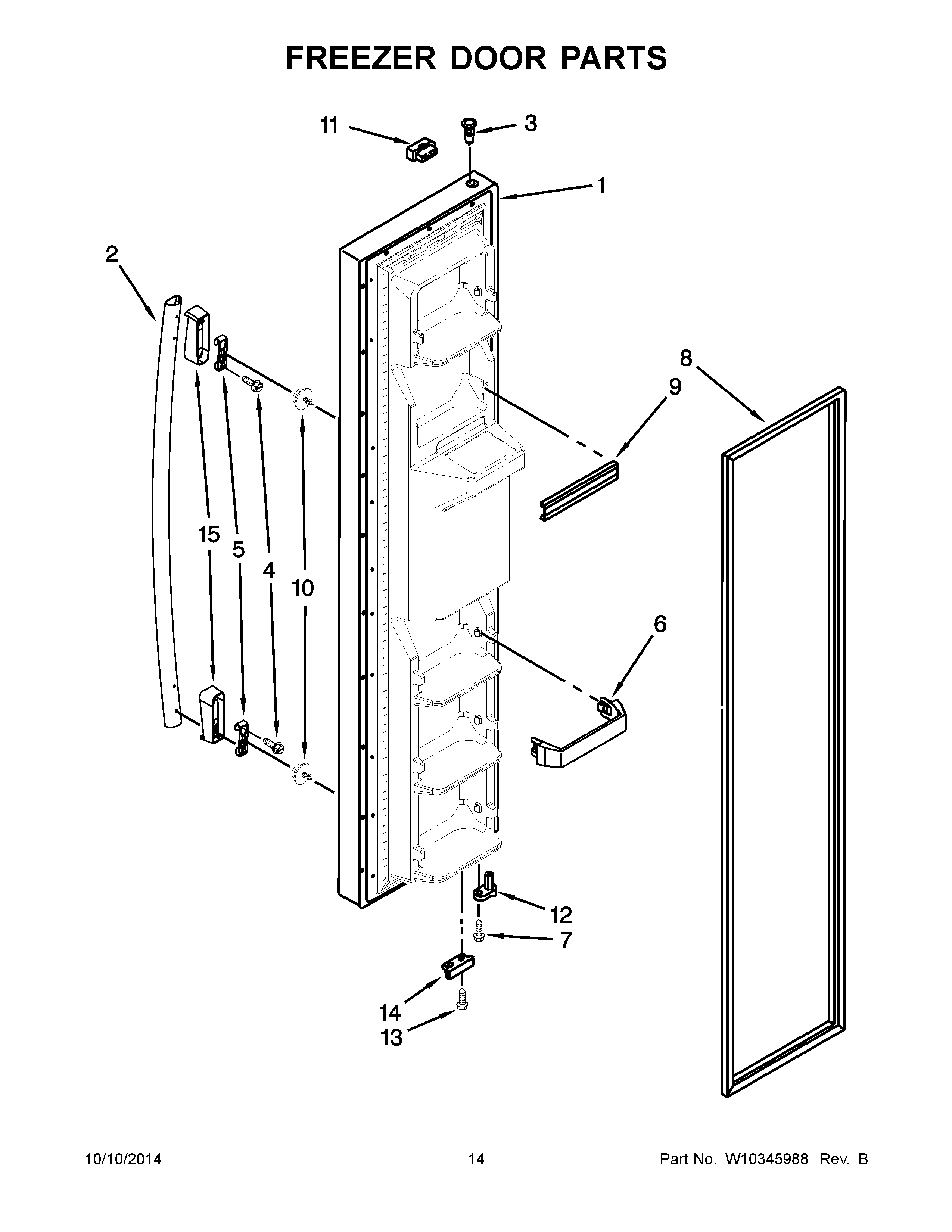

ED2FHEXVS02 08 – FREEZER DOOR PARTS

Products

PositionProduct
1DOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS)
2WPW10257118K Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4W10267047 Whirlpool Screw
5WP2255411 Whirlpool Refrigerator Clip
6WP2309717 Whirlpool Refrigerator Door Trim
7WP3400012 Whirlpool Refrigerator Screw
82159080 Whirlpool Refrigerator Door Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WPW10288153 Whirlpool Refrigerator Screw
11WP2154473 Whirlpool Refrigerator Connector
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop (Black)
15End Cap (Apollo Grey)
