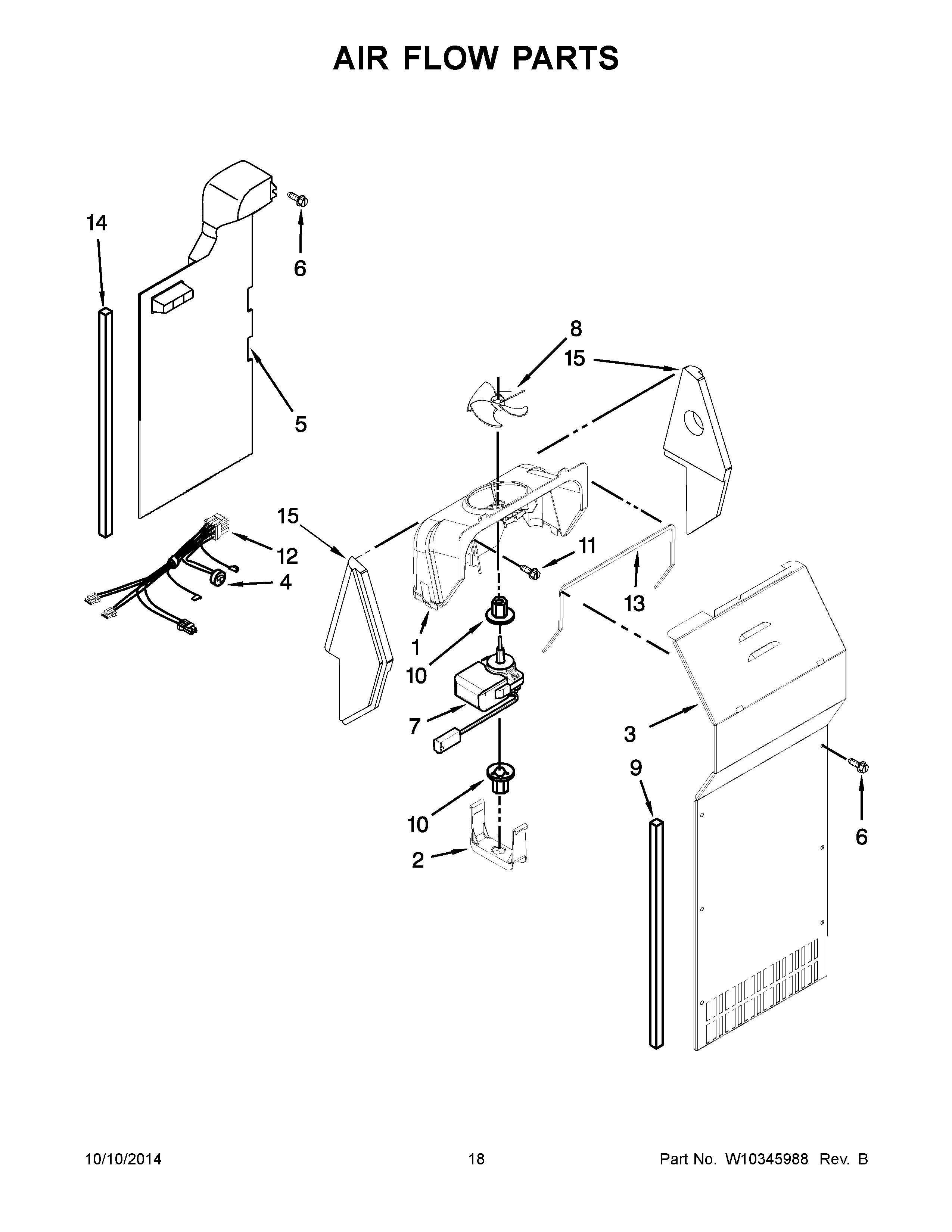

ED2FHEXVS02 10 – AIR FLOW PARTS

ED2FHEXVS02 10 – AIR FLOW PARTS

Written by

in

ED2FHEXVS02 10 – AIR FLOW PARTS

Products

PositionProduct
1W11254898 Whirlpool Refrigerator Scroll Fan
2W11700295 Whirlpool Refrigerator Retainer
34388357 Whirlpool Refrigerator Evaporator Cover
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5W10166220 Whirlpool Refrigerator Air Duct
64389654 Whirlpool Screw
7WPW10236142 Whirlpool Evaporator Fan Motor
8WP2169142 Whirlpool Fan Blade
9WP2304241 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
11WP489478 Whirlpool Refrigerator Screw
12W11225843 Whirlpool Refrigerator Wire Harness
13WP2155789 Whirlpool Refrigerator Gasket
144388500 Whirlpool Refrigerator Gasket
15A4388358 Whirlpool Refrigerator Support Bracket
