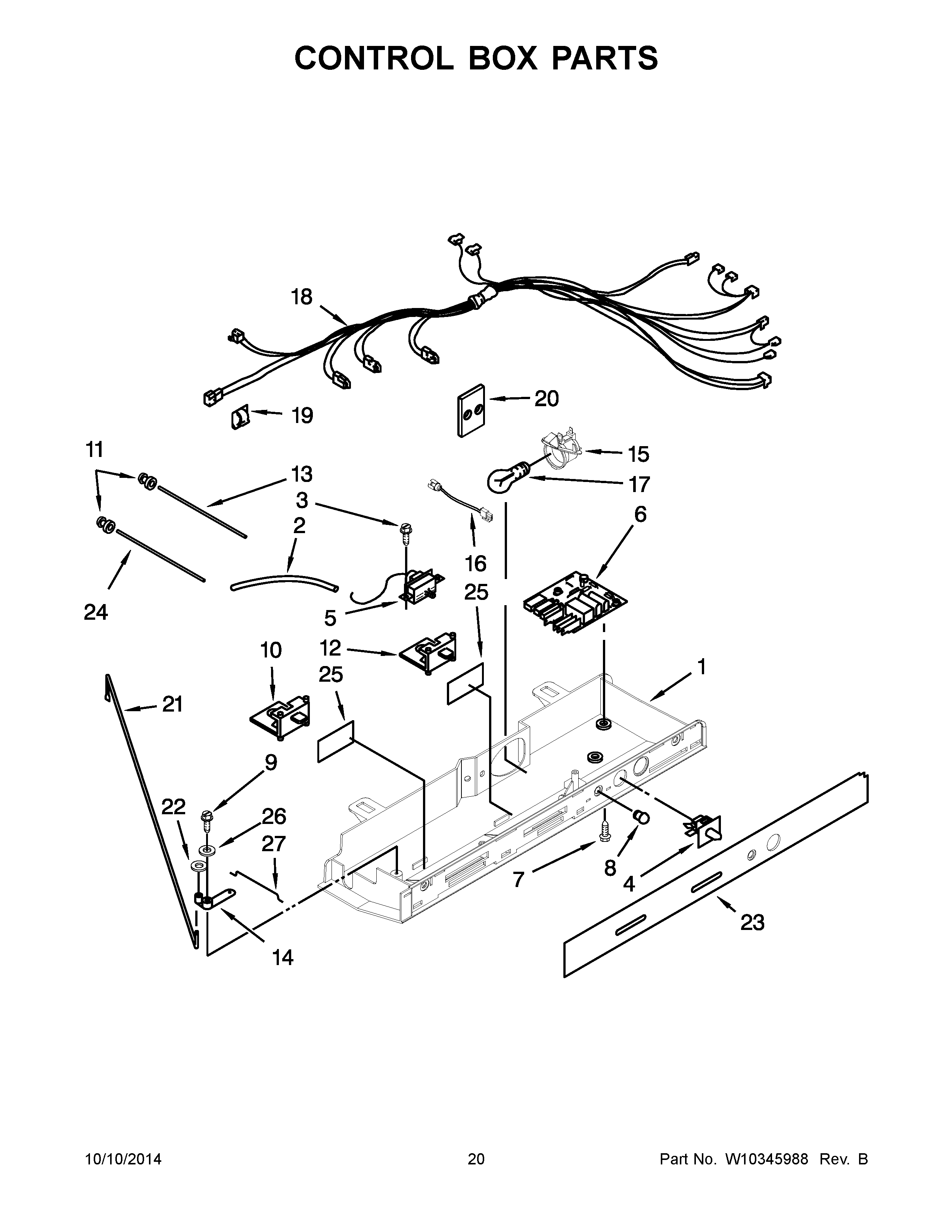

ED2FHEXVS02 11 – CONTROL BOX PARTS

Products

Position	Product
1	Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2315562 Whirlpool Refrigerator Thermostat
6	WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7	489392 Whirlpool Refrigerator Screw
8	COVER, LIGHT LENS
9	627068 Whirlpool Refrigerator Screw
10	2181741 Whirlpool Refrigerator Slide
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
13	Fiber Optic
14	2161306 Whirlpool Refrigerator Arm Pivot
15	4387478 Whirlpool Refrigerator Light Socket
16	W10853646 Whirlpool Indicator Light
17	RANGE ONLY 40W 120V APPL BULB
18	2311632 Whirlpool Refrigerator Wire Harness
19	WP1115374 Whirlpool Refrigerator Clip
20	2172931 Whirlpool Refrigerator Shield
21	2161308 Whirlpool Refrigerator Rod
22	Fastener, Push-On
23	ESCUTCHEON, CONTROL BOX
24	Light Bar (FC)
25	Window
26	489203 Whirlpool Refrigerator Washer
27	2161307 Whirlpool Refrigerator Rod
