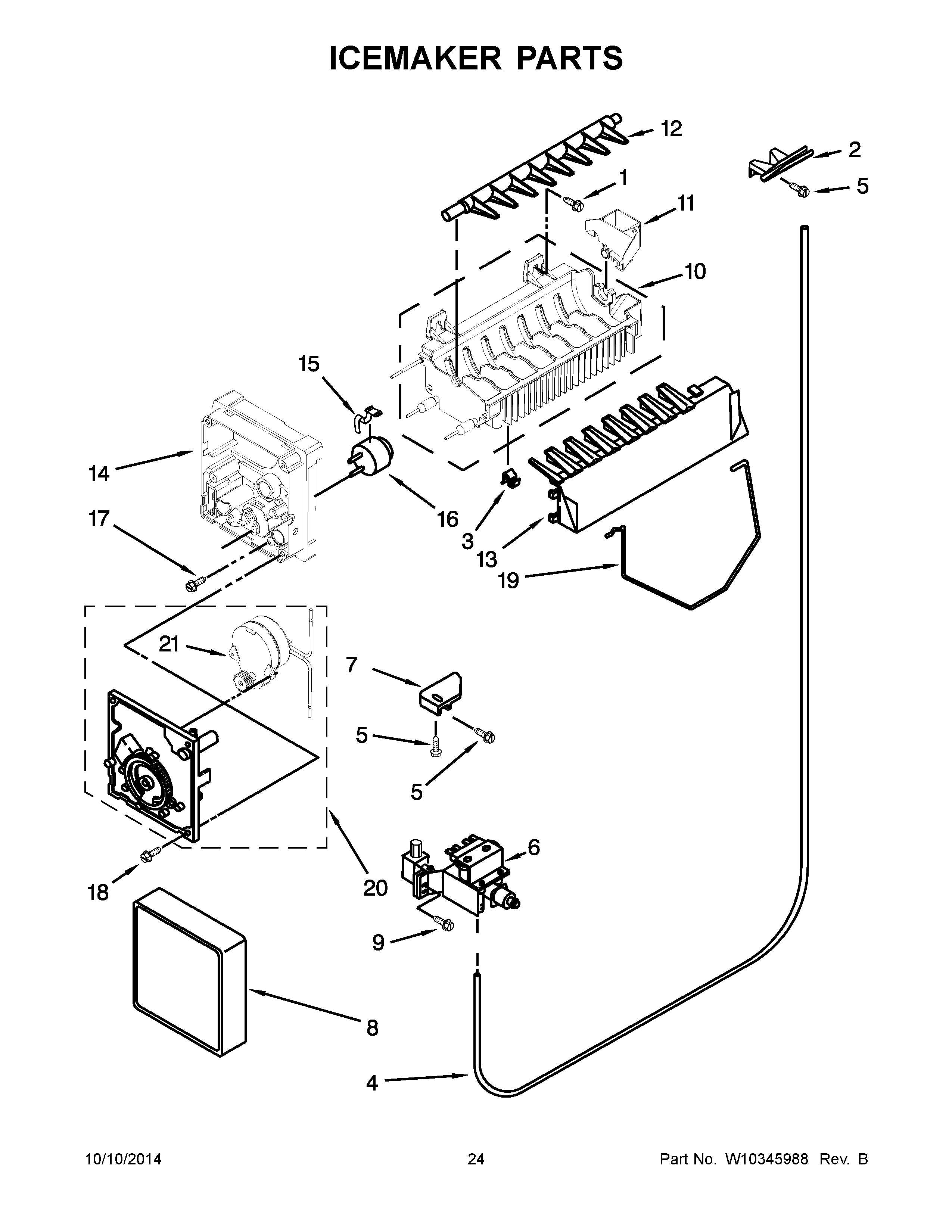

ED2FHEXVS02 13 – ICEMAKER PARTS

ED2FHEXVS02 13 – ICEMAKER PARTS

Written by

in

ED2FHEXVS02 13 – ICEMAKER PARTS

Products

PositionProduct
1489136 Whirlpool Refrigerator Screw
2W11505385 Whirlpool Refrigerator Chute
3WP628379 Whirlpool Refrigerator Clip
4W10823511 Whirlpool Refrigerator Water Tube
5WP489478 Whirlpool Refrigerator Screw
6W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
7W11500948 Whirlpool Refrigerator Bracket
8WPW10289690 Whirlpool Ice Maker Cover
9WPW10141625 Whirlpool Refrigerator Screw Assembly
10WPW10190929 Whirlpool Refrigerator Ice Maker Mold
11W10122561 Whirlpool Refrigerator Cup Fill
12WP627843 Whirlpool Refrigerator Ejector Arm
13WPW10122563 Whirlpool Refrigerator Stripper Arm
14WP2195914 Whirlpool Refrigerator Ice Maker Housing
15WP2315522 Whirlpool Refrigerator Clip
16WP627985 Whirlpool Icemaker Cycling Thermostat
178533917 Whirlpool Refrigerator Screw
18WP681249 Whirlpool Screw Assembly
19W11342242 Whirlpool Refrigerator Ice Level Arm
208201515 Whirlpool Refrigerator Motor and Gear Module Kit
21CABINET (NOT A SERVICEABLE PART)
100WPW10190965 Whirlpool Refrigerator Ice Maker Assembly
