ED2FHEXVS03 01 – CABINET PARTS
Written by
in

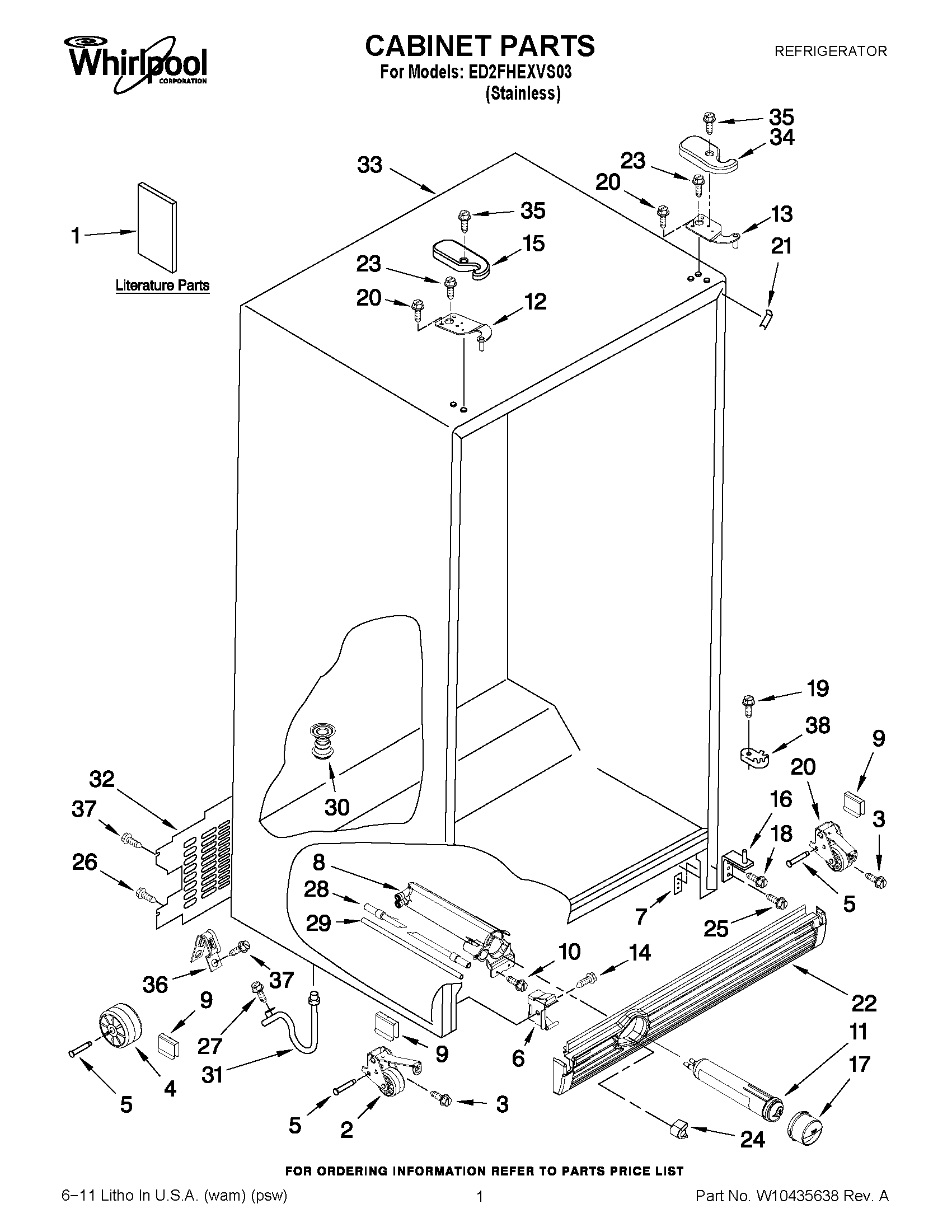

ED2FHEXVS03 01 – CABINET PARTS
Products
Position
Product
1
Energy Label
1
USE & CARE GUIDE
1
Service & Wiring Sheet
1
Modular Icemaker Service Sheet
1
INSTRUCTION SHEET (DOOR REMOVAL)
2
WPW10304660 Whirlpool Wheel Assembly
3
WP489427 Whirlpool Refrigerator Screw
4
WPW10475495 Whirlpool Roller Assembly
5
W11594405 Whirlpool Axle
6
WP2155013 Whirlpool Refrigerator Clip
7
WP2304249 Whirlpool Refrigerator Plate
8
WPW10121138 Whirlpool Refrigerator Water Filter Housing
9
WP2174706 Whirlpool Refrigerator Pin Hitch
10
WP489500 Whirlpool Refrigerator Screw
11
FILTER 3-SINGLE TEAL
12
HINGE TOP (FC)
13
HINGE TOP (RC)
14
WP489128 Whirlpool Refrigerator Screw
15
WP2203407B Whirlpool Refrigerator Cover
16
HINGE BOTTOM
17
WP2260518B Whirlpool Water Filter Cap
18
WP489497 Whirlpool Screw
19
WP489483 Whirlpool Screw
20
WPW10304659 Whirlpool Wheel Assembly
21
W11252732 Whirlpool Refrigerator Filler
22
GRILLE (BLACK)
24
WP2260503B Whirlpool Refrigerator Button
25
W10856122 Whirlpool Refrigerator Screw
26
WP488488 Whirlpool Refrigerator Screw
27
WP489464 Whirlpool Refrigerator Screw
28
TUBE, FILTER INLET
29
WPW10350006 Whirlpool Refrigerator Water Tube
30
W11566763 Whirlpool Fitting
31
W11512417 Whirlpool Drain Connector
32
WP2188756 Whirlpool Refrigerator Unit Cover
33
CABINET (NOT A SERVICEABLE PART)
34
WP2203408B Whirlpool Refrigerator Cover
35
WP8281227 Whirlpool Screw
36
549193 Whirlpool Refrigerator Power Clamp
38
WPW10329686 Whirlpool Door Cam Black
←
