ED2FTGXKQ01 09 – UNIT

ED2FTGXKQ01 09 – UNIT

Written by

in

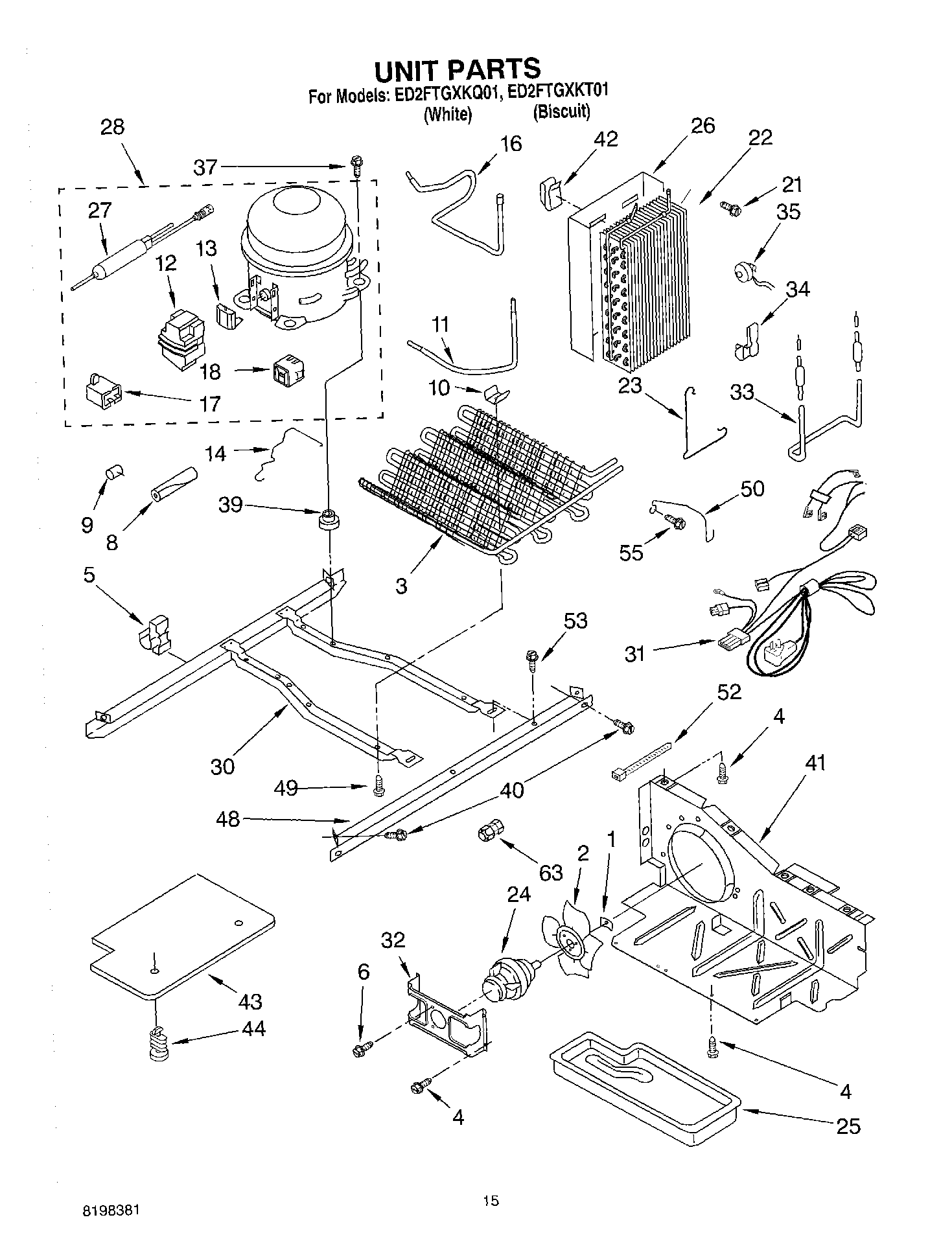

ED2FTGXKQ01 09 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	681390 Whirlpool Refrigerator Screw
8	SLEEVE
9	WP2158826 Whirlpool Refrigerator Dampener
10	W10683556 Whirlpool Refrigerator Clip
11	Tube, Condenser to Heat Loop
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	OVERLOAD
14	2223313 Whirlpool Clip
16	2205764 Whirlpool Refrigerator Tube
17	WP4387764 Whirlpool Run Capacitor
18	8201786 Whirlpool Relay and Overload Start Kit
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clamp
24	W10822259 Whirlpool Refrigerator Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Heat Shield
27	W10843121 Whirlpool Refrigerator Tube
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	W10309990 Whirlpool Refrigerator Compressor
30	2304903 Whirlpool Refrigerator Frame
31	Unit, Harness
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323197 Whirlpool Refrigerator Heater
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37	SCREW
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
39	W11661108 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
43	Unit Cover, Bottom
44	489396 Whirlpool Refrigerator Clip
48	Unit Mounting Rail
49	W11544659 Whirlpool Refrigerator Screw
50	Guard, Fan
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
63	876764 Whirlpool Refrigerator Primary Valve
63	978026 Whirlpool Refrigerator Primary Valve
63	VALVE, ACCESS (1/2“)
63	VALVE, ACCESS (5/8“)
63	978030 Whirlpool Refrigerator Valve
63	WP978025 Whirlpool Refrigerator Valve
63	978027 Whirlpool Refrigerator Primary Valve
63	WP4373559 Whirlpool Fitting
