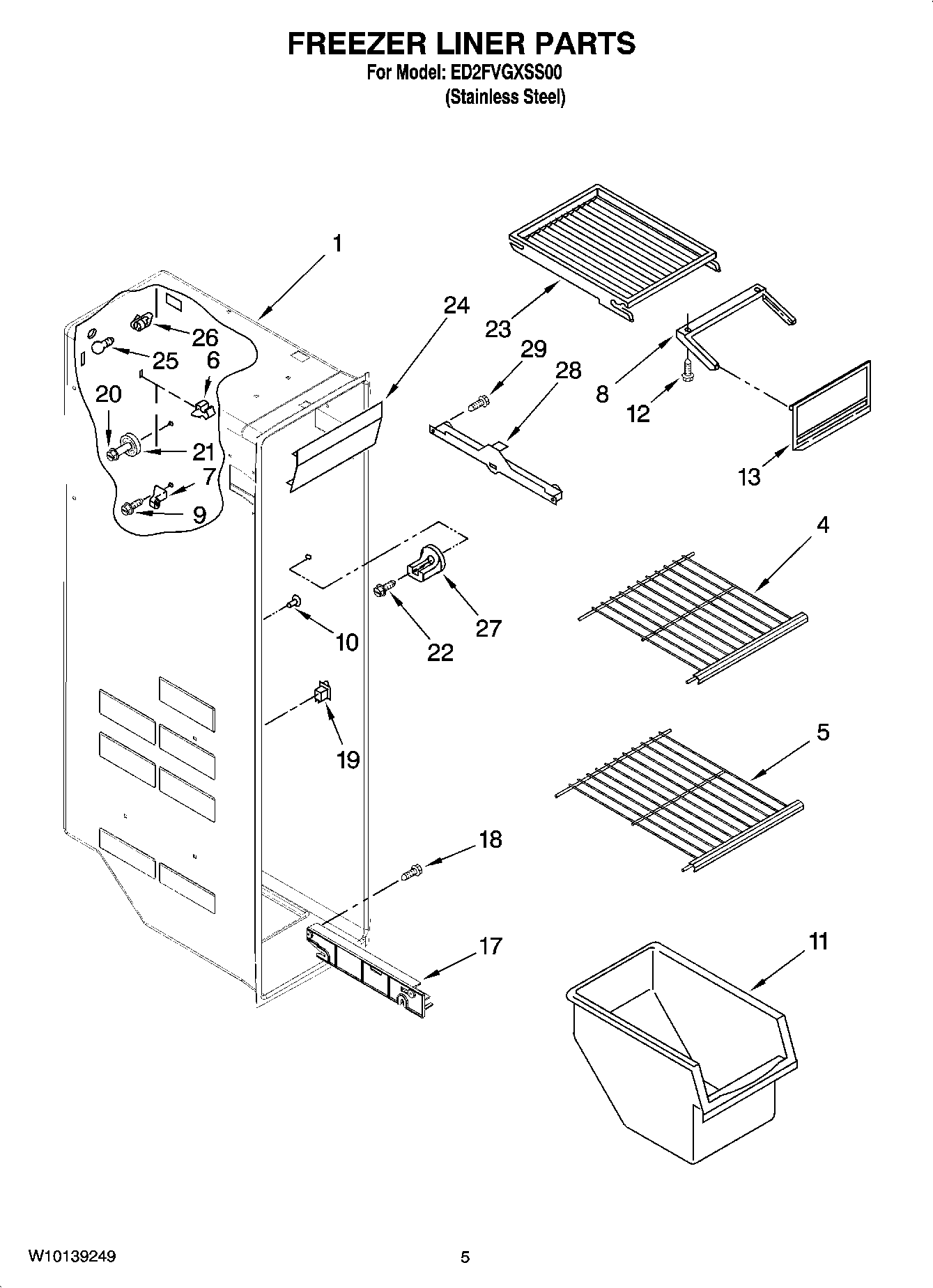

ED2FVGXSS00 04 – FREEZER LINER PARTS

ED2FVGXSS00 04 – FREEZER LINER PARTS

Written by

in

ED2FVGXSS00 04 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Seviceable Part)
4WP2174249K Whirlpool Refrigerator Wire Shelf
5Shelf (2)
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Slide, Ice Door
10Grommet
11Bin, Freezer
12WP489478 Whirlpool Refrigerator Screw
132171712 Whirlpool Refrigerator Ice Door
17Slide, Basket (Left Side)
17WP2261449 Whirlpool Refrigerator Track
18W10759522 Whirlpool Screw
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20WP3400806 Whirlpool Screw
21WP2196483 Whirlpool Refrigerator Shelf Stud
22W10142289 Whirlpool Air Conditioner Screw
23Shelf, Top Compartment
24WP2171706 Whirlpool Refrigerator Light Lens
25RANGE ONLY 40W 120V APPL BULB
264387478 Whirlpool Refrigerator Light Socket
27Stud, Rear
28W10845585 Whirlpool Refrigerator Track
28W10845583 Whirlpool Refrigerator Track
29718257 Whirlpool Dishwasher Screw
