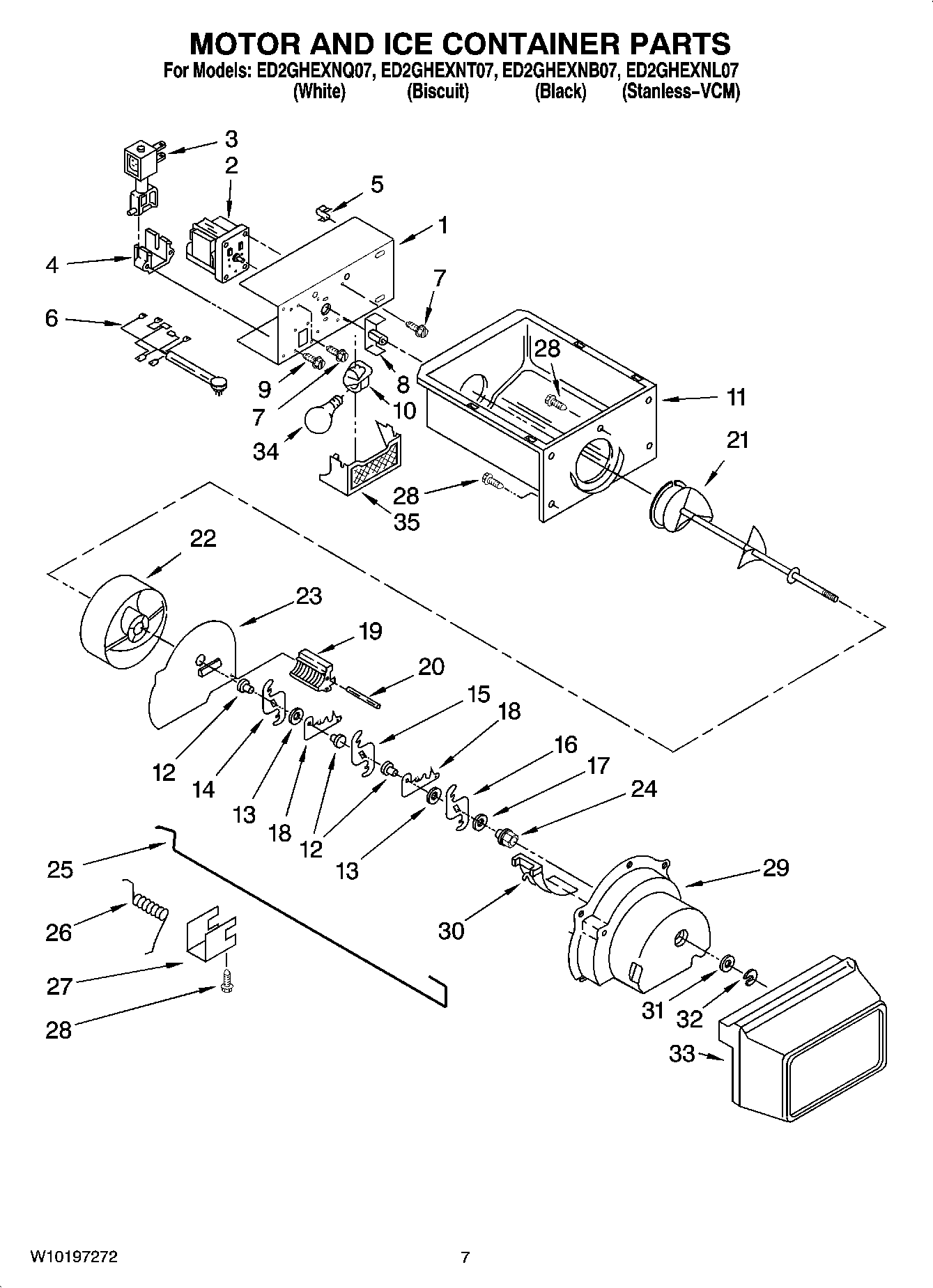

ED2GHEXNB07 05 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1Bracket, Motor
2WPW10317991 Whirlpool Refrigerator Motor
3WP2152713 Whirlpool Refrigerator Solenoid
4W10850503 Whirlpool Refrigerator Guide
5WP1115374 Whirlpool Refrigerator Clip
62311639 Whirlpool Refrigerator Dispenser Wiring Harness
7WP489399 Whirlpool Refrigerator Screw
8COUPLING AUGER MOTOR
9WP489478 Whirlpool Refrigerator Screw
104387478 Whirlpool Refrigerator Light Socket
11WP2196089 Whirlpool Refrigerator Container
12WP1119005 Whirlpool Refrigerator Spacer
13WP1119007 Whirlpool Refrigerator Spacer
14W10278731 Whirlpool Refrigerator Blade
15W10278732 Whirlpool Refrigerator Blade
16W10278733 Whirlpool Refrigerator Blade
17WP489235 Whirlpool Refrigerator Washer
18Blade, Fixed (2)
192157405 Whirlpool Refrigerator Blade Block
20489229 Whirlpool Refrigerator Roll Pin
21W10422851 Whirlpool Ice Maker Bucket Auger
224388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
23W10852691 Whirlpool Refrigerator Baffle
24WP1119018 Whirlpool Refrigerator Bearing
25W11596045 Whirlpool Refrigerator Control Arm
261119020 Whirlpool Refrigerator Spring
271119021 Whirlpool Refrigerator Clip
28WP488787 Whirlpool Refrigerator Screw
29WPW10185018 Whirlpool Refrigerator Housing
30WP1119017 Whirlpool Refrigerator Deflector
31489234 Whirlpool Refrigerator Washer
32WP489236 Whirlpool Refrigerator Ring
33Front Cover, Ice Container
34RANGE ONLY 40W 120V APPL BULB
35WP2171706 Whirlpool Refrigerator Light Lens
100WPW10312301 Whirlpool Refrigerator Ice Container
