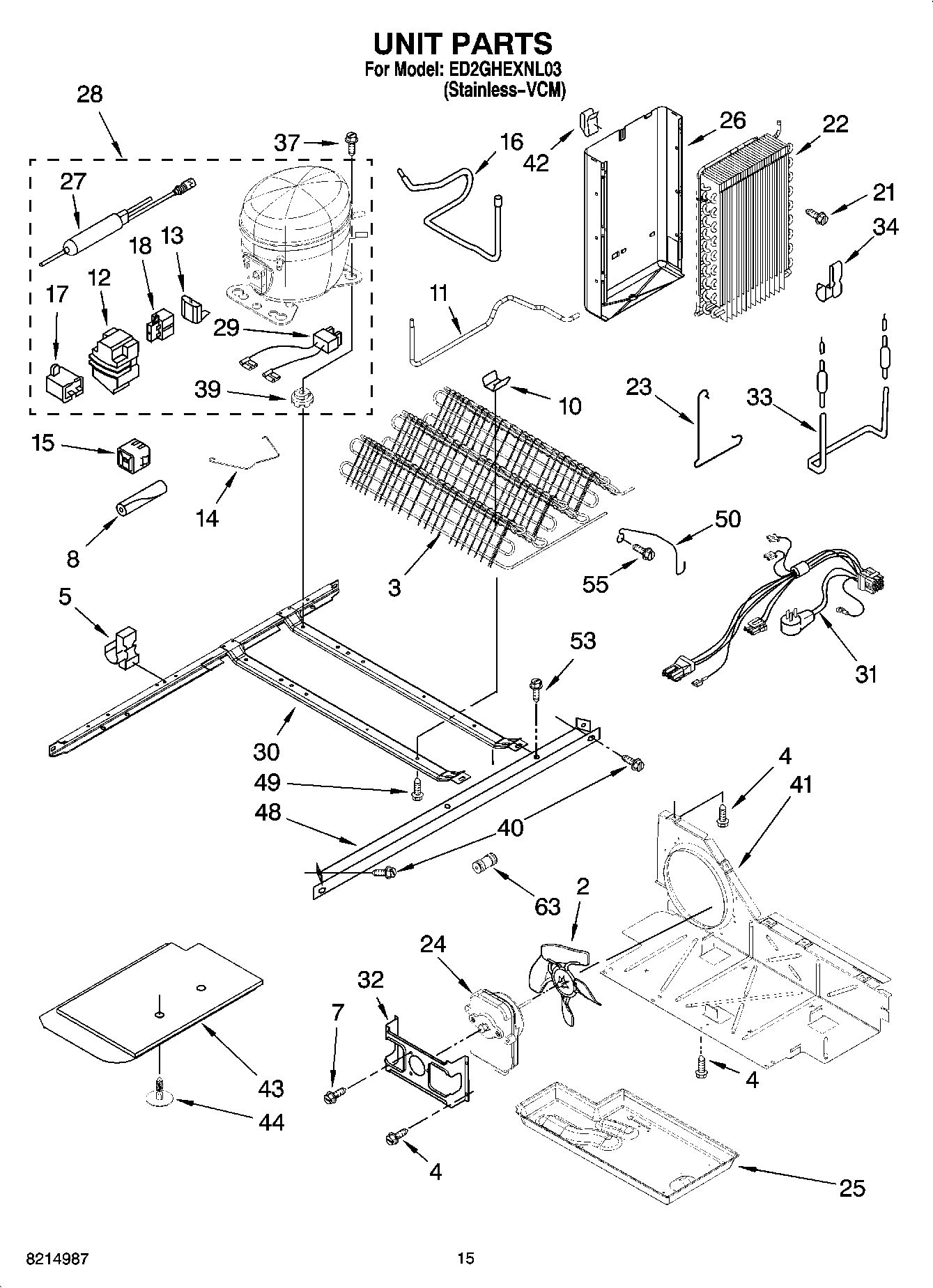

ED2GHEXNL03 09 – UNIT PARTSadmin2025-04-26T11:03:54+00:00ED2GHEXNL03 09 – UNIT PARTS ProductsPositionProduct2W11458267 Whirlpool Refrigerator Fan Blade32324712 Whirlpool Refrigerator Condenser4WP489464 Whirlpool Refrigerator Screw5Clip, Wire & Tube7WP8533993 Whirlpool Refrigerator Screw8SLEEVE10W10683556 Whirlpool Refrigerator Clip112261599 Whirlpool Refrigerator Tube12WP2162358 Whirlpool Refrigerator Terminal Cover13WP2187145 Whirlpool Refrigerator Overload142255009 Whirlpool Retainer15WP2188831 Whirlpool Refrigerator Start Device162220642 Whirlpool Refrigerator Tube17WPW10662129 Whirlpool Refrigerator Run Capacitor17WP65889-4 Whirlpool Refrigerator Capacitor18W10920279 Whirlpool Refrigerator Start Relay21WP489478 Whirlpool Refrigerator Screw22WP2188822 Whirlpool Refrigerator Evaporator23Clamp24WP2188874 Whirlpool Refrigerator Condenser Motor25WPW10614158 Whirlpool Refrigerator Evaporator Tray26Heat Shield27WPW10143759 Whirlpool Dryer Filter28W10309990 Whirlpool Refrigerator Compressor29WP2172890 Whirlpool Refrigerator Wire302304903 Whirlpool Refrigerator Frame31WPW10309395 Whirlpool Refrigerator Wire Harness32WP2181929 Whirlpool Refrigerator Bracket33WP2323197 Whirlpool Refrigerator Heater34W11623163 Whirlpool Refrigerator Clip39WP4387558 Whirlpool Refrigerator Compressor Grommet39876811 Whirlpool Grommet40489340 Whirlpool Refrigerator Screw41W10896764 Whirlpool Refrigerator Air Baffle42Clip, Heat Shield43W11115203 Whirlpool Control Panel44489396 Whirlpool Refrigerator Clip48Unit Mounting Rail49W11544659 Whirlpool Refrigerator Screw50Guard, Fan53WP489427 Whirlpool Refrigerator Screw55WPW10141625 Whirlpool Refrigerator Screw Assembly63VALVE, ACCESS (5/8``)63Following Parts Not Illustrated and Optional Parts Not Included63876764 Whirlpool Refrigerator Primary Valve63978027 Whirlpool Refrigerator Primary Valve63978030 Whirlpool Refrigerator Valve63WP978025 Whirlpool Refrigerator Valve63VALVE, ACCESS (1/2``)63978026 Whirlpool Refrigerator Primary Valve63WP4373559 Whirlpool Fitting63REFRIGERANT CHARGE 5.0 oz
