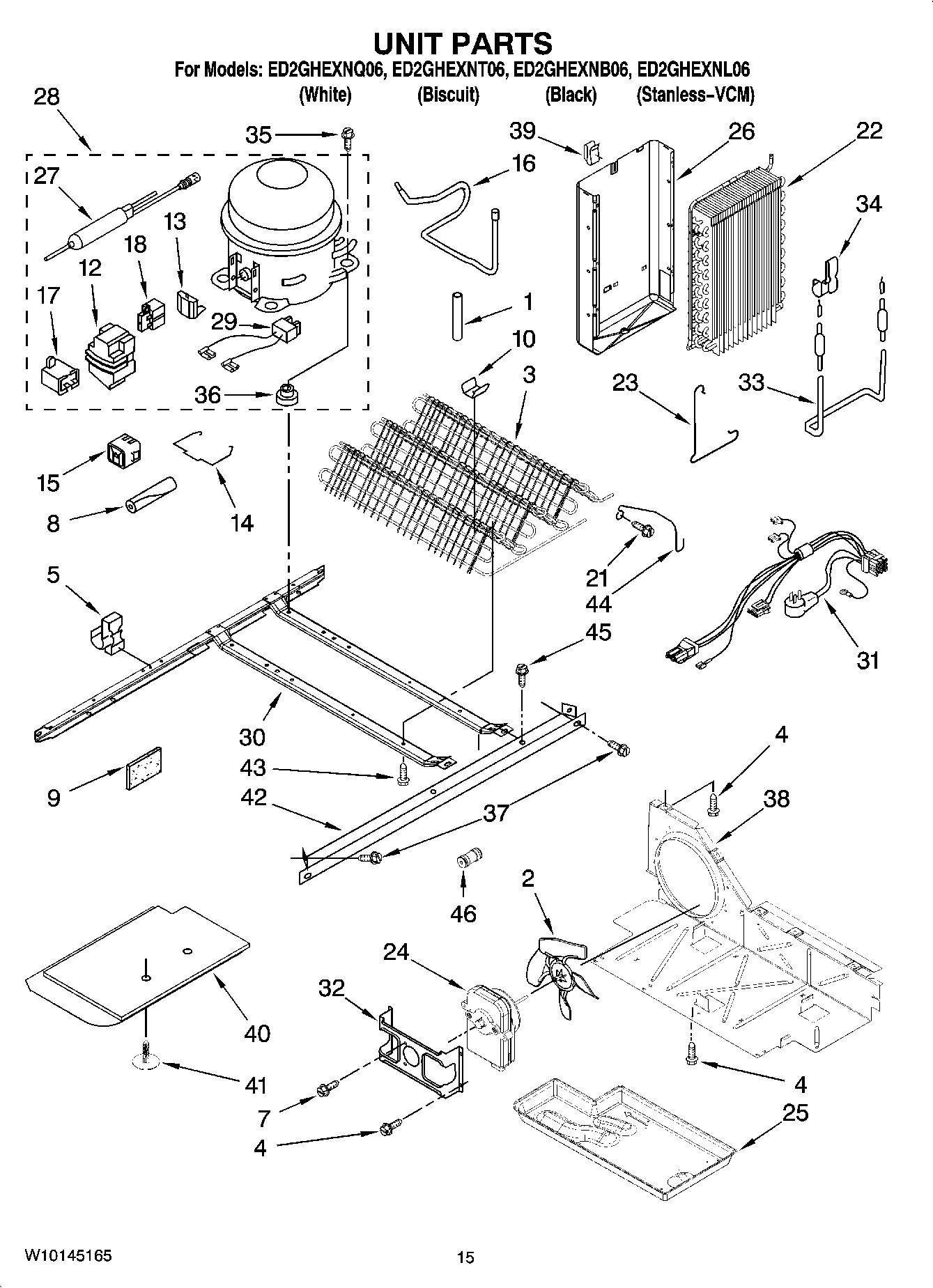

ED2GHEXNL06 09 – UNIT PARTS

ED2GHEXNL06 09 – UNIT PARTS

Written by

in

ED2GHEXNL06 09 – UNIT PARTS

Products

Position	Product
1	Bushing, Compressor
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
7	WP8533993 Whirlpool Refrigerator Screw
8	SLEEVE
9	W11553819 Whirlpool Refrigerator Insulation
10	W10683556 Whirlpool Refrigerator Clip
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2187145 Whirlpool Refrigerator Overload
14	2212996 Whirlpool Refrigerator Retainer
15	WP2188831 Whirlpool Refrigerator Start Device
16	2220642 Whirlpool Refrigerator Tube
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
17	WP65889-4 Whirlpool Refrigerator Capacitor
18	W10920279 Whirlpool Refrigerator Start Relay
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clamp
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Heat Shield
27	WPW10143759 Whirlpool Dryer Filter
27	W10843121 Whirlpool Refrigerator Tube
28	W10355489 Whirlpool Refrigerator Compressor
29	WP2172890 Whirlpool Refrigerator Wire
30	2304903 Whirlpool Refrigerator Frame
31	WPW10309395 Whirlpool Refrigerator Wire Harness
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323197 Whirlpool Refrigerator Heater
34	W11623163 Whirlpool Refrigerator Clip
36	876811 Whirlpool Grommet
36	WP4387558 Whirlpool Refrigerator Compressor Grommet
37	489340 Whirlpool Refrigerator Screw
38	W10896764 Whirlpool Refrigerator Air Baffle
39	Clip, Heat Shield
40	W11115203 Whirlpool Control Panel
41	489396 Whirlpool Refrigerator Clip
42	Unit Mounting Rail
43	W11544659 Whirlpool Refrigerator Screw
44	Guard, Fan
45	WP489427 Whirlpool Refrigerator Screw
46	VALVE, ACCESS (5/8“)
46	WPW10334458 Whirlpool Refrigerator Connector
46	Following Parts Not
46	978026 Whirlpool Refrigerator Primary Valve
46	978027 Whirlpool Refrigerator Primary Valve
46	978030 Whirlpool Refrigerator Valve
46	WP978025 Whirlpool Refrigerator Valve
46	VALVE, ACCESS (1/2“)
46	876764 Whirlpool Refrigerator Primary Valve
46	WPL ARI30417A1
