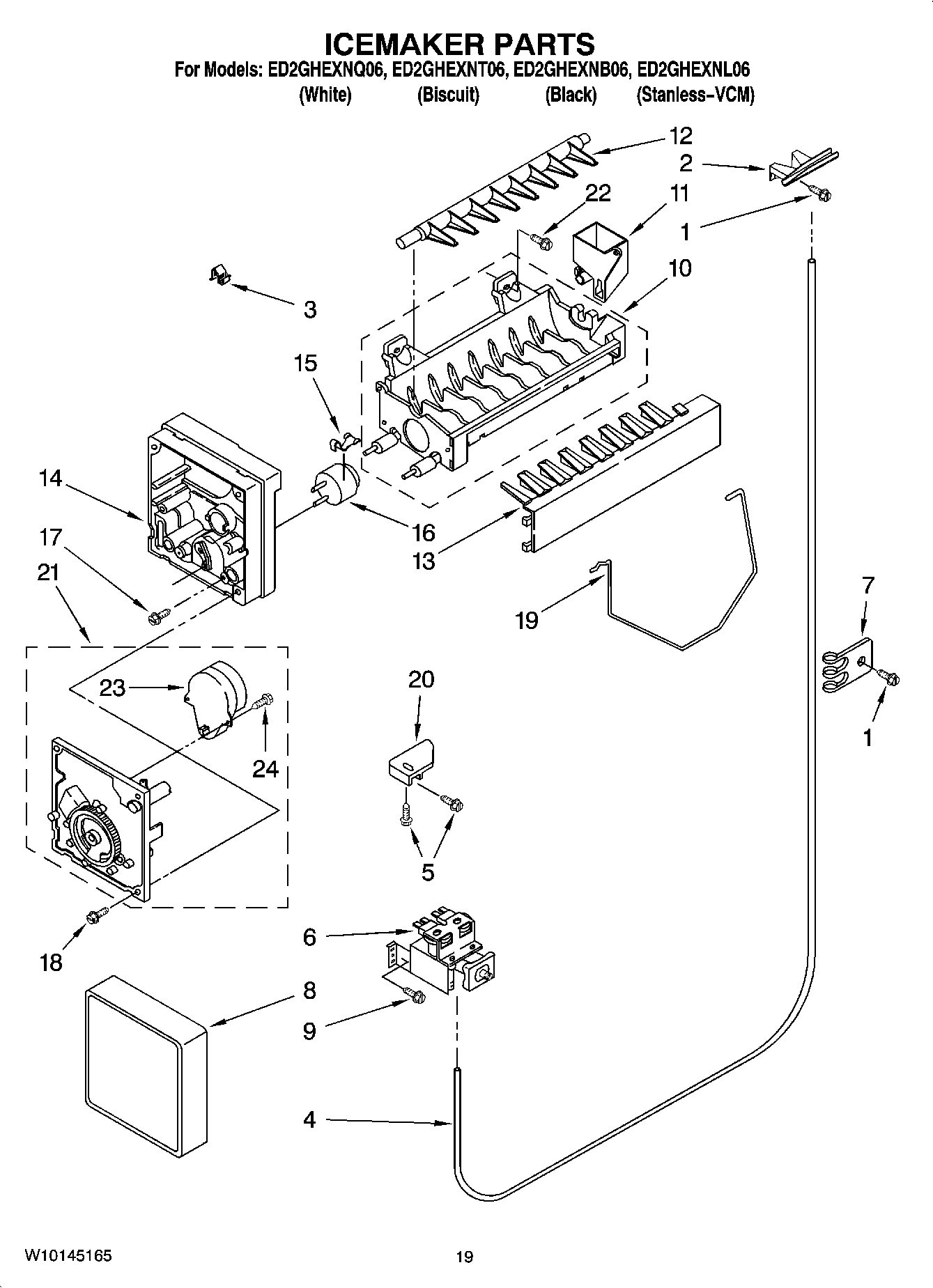

ED2GHEXNQ06 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

ED2GHEXNQ06 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

ED2GHEXNQ06 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI30502A8
Enamel, Black (1 Qt. Uncut)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
TAPE, VINYL (3/4 X 108“)
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
WP542638 Whirlpool Refrigerator Grease
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
WPL 799833
8171357 Whirlpool Spray Nozzle
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
WPL ARI30501A8
Important: The spray pain
PAINT, TOUCH-UP (1/2oz.)
PAINT, PRESSURIZED SPRAY (12 oz.)
4210463RW Whirlpool Refrigerator Coil Brush
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
PAINT, BULK (1 QT. GRAPHITE)
833938 Whirlpool Refrigerator Terminal
4392901 Whirlpool Biscuit Spray Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
212643 Whirlpool Refrigerator Permagum Sealer
350930 Whirlpool White Spray Paint
WPL ARI30503A1
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
2W11505385 Whirlpool Refrigerator Chute
3WP628379 Whirlpool Refrigerator Clip
4W10823511 Whirlpool Refrigerator Water Tube
5WP489478 Whirlpool Refrigerator Screw
6W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
7WP488366 Whirlpool Refrigerator Clamp
8WPW10289690 Whirlpool Ice Maker Cover
9WPW10141625 Whirlpool Refrigerator Screw Assembly
10WPW10190929 Whirlpool Refrigerator Ice Maker Mold
11W10122561 Whirlpool Refrigerator Cup Fill
12WP627843 Whirlpool Refrigerator Ejector Arm
13WP2182124 Whirlpool Refrigerator Stripper Arm
14WP2195914 Whirlpool Refrigerator Ice Maker Housing
15WP2315522 Whirlpool Refrigerator Clip
16WP627985 Whirlpool Icemaker Cycling Thermostat
178533917 Whirlpool Refrigerator Screw
18WP681249 Whirlpool Screw Assembly
19W11342242 Whirlpool Refrigerator Ice Level Arm
20W11500948 Whirlpool Refrigerator Bracket
22WP488163 Whirlpool Refrigerator Screw
238201515 Whirlpool Refrigerator Motor and Gear Module Kit
24489136 Whirlpool Refrigerator Screw
100Complete Icemaker Assembly
