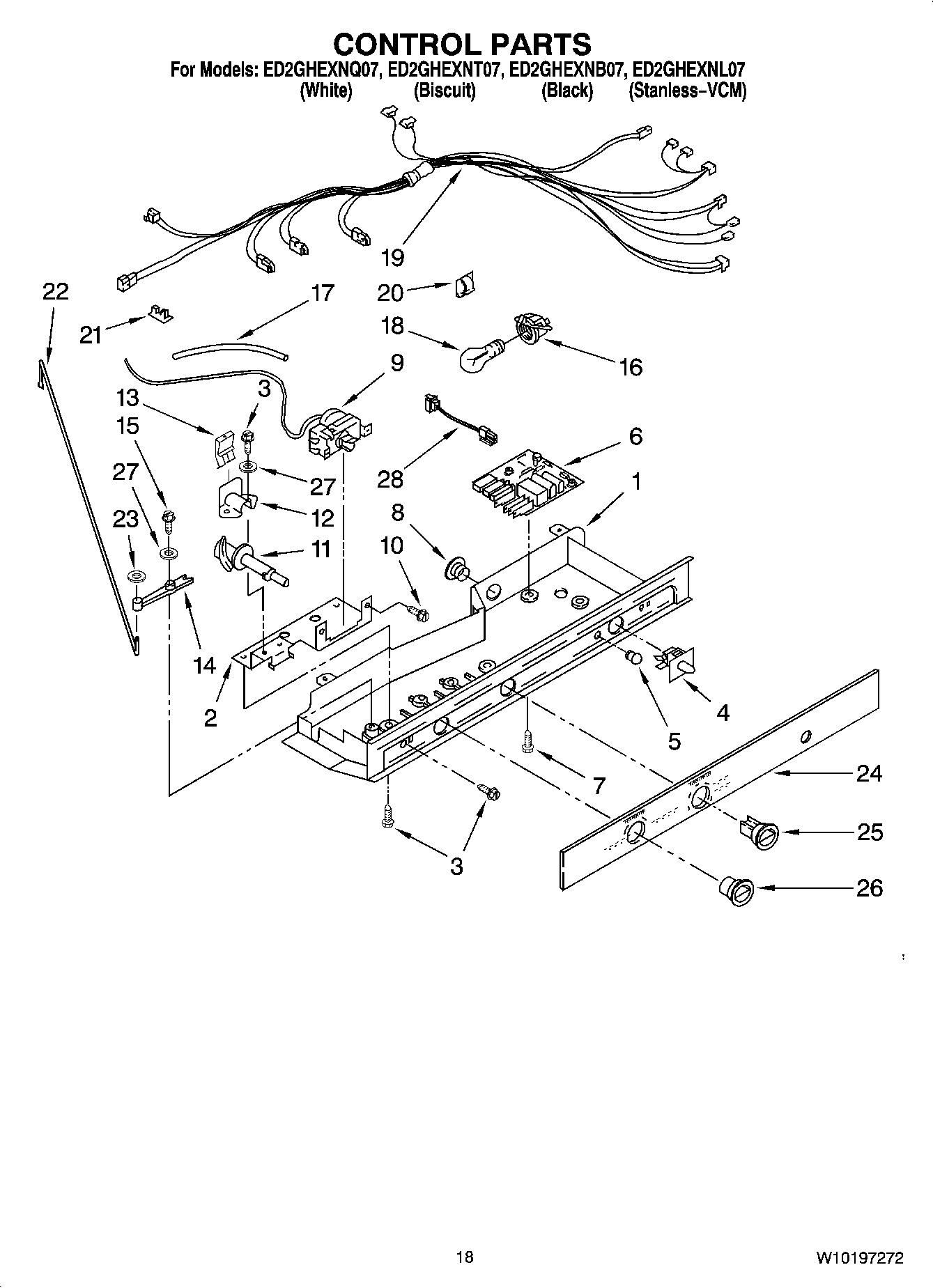

ED2GHEXNQ07 11 – CONTROL PARTS
Written by
in
ED2GHEXNQ07 11 – CONTROL PARTS
Products
Position
Product
1
Control Box
2
Mounting Bracket
3
WP3196557 Whirlpool Screw
4
WP2149705 Whirlpool Refrigerator Door Switch
5
COVER, LIGHT LENS
6
WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7
489392 Whirlpool Refrigerator Screw
8
940014 Whirlpool Refrigerator Primary Button Plug
9
WP2198202 Whirlpool Refrigerator Temperature Thermostat
10
WP965173 Whirlpool Dishwasher Screw
11
WP2182195 Whirlpool Refrigerator Cam
12
1110560 Whirlpool Refrigerator Bearing
13
WP2196062 Whirlpool Refrigerator Clip
14
Pivot Arm
15
627068 Whirlpool Refrigerator Screw
16
4387478 Whirlpool Refrigerator Light Socket
17
WP2196003 Whirlpool Refrigerator Bar Riser
18
RANGE ONLY 40W 120V APPL BULB
19
Control Box Harness
20
WP1115374 Whirlpool Refrigerator Clip
21
CLIP, WIRING
22
Connecting Rod
23
Fastener, Push-On
24
Escutcheon, Control Box
25
2182111 Whirlpool Refrigerator Thermal Knob
26
Knob, Air Control
27
489203 Whirlpool Refrigerator Washer
28
W10853646 Whirlpool Indicator Light
←
