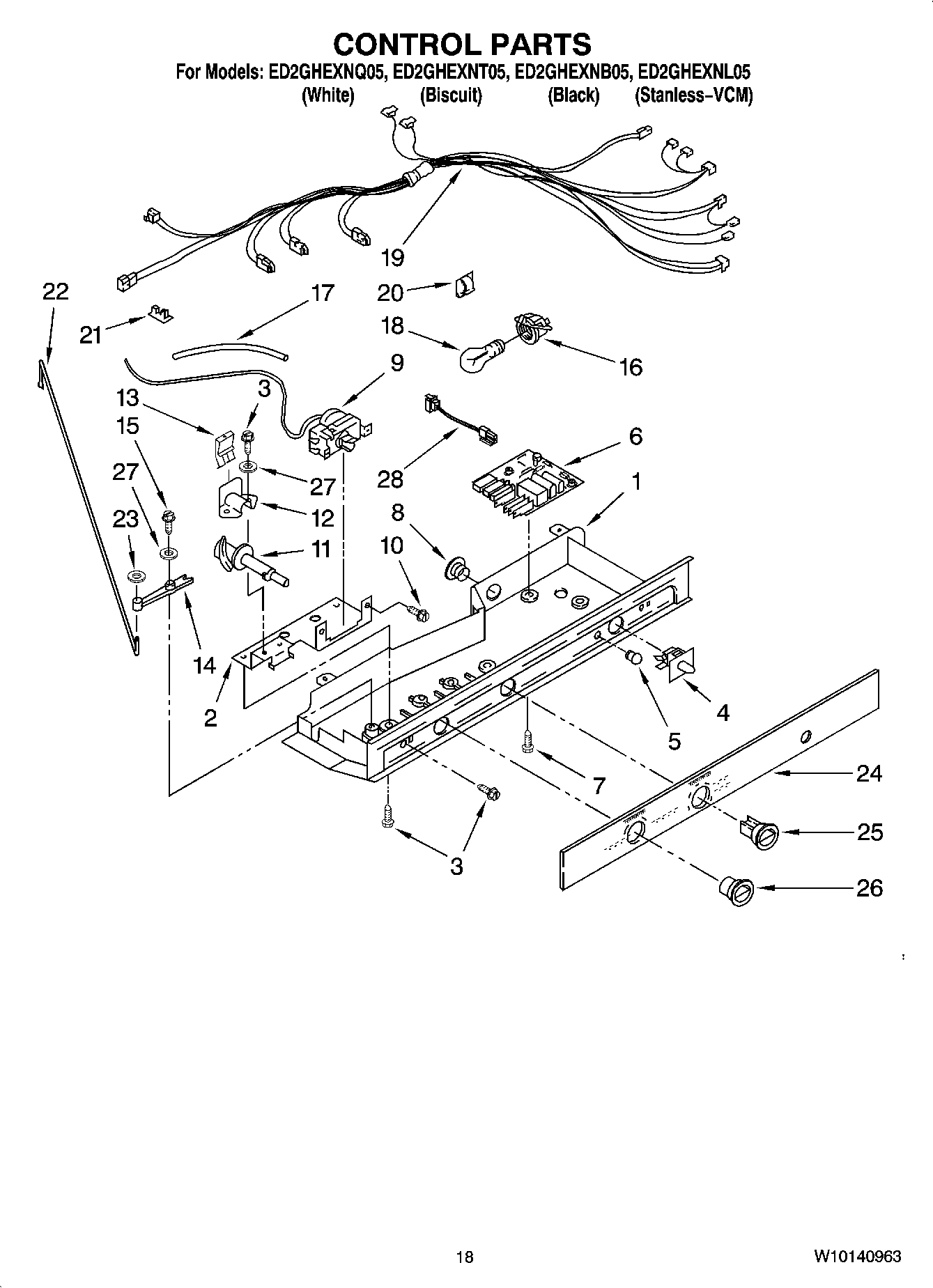

ED2GHEXNT05 11 – CONTROL PARTSadmin2025-04-26T11:06:04+00:00ED2GHEXNT05 11 – CONTROL PARTS ProductsPositionProduct1Control Box2Mounting Bracket3WP3196557 Whirlpool Screw4WP2149705 Whirlpool Refrigerator Door Switch5COVER, LIGHT LENS6WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core7489392 Whirlpool Refrigerator Screw8940014 Whirlpool Refrigerator Primary Button Plug9WP2198202 Whirlpool Refrigerator Temperature Thermostat10WP965173 Whirlpool Dishwasher Screw11WP2182195 Whirlpool Refrigerator Cam121110560 Whirlpool Refrigerator Bearing13WP2196062 Whirlpool Refrigerator Clip14Pivot Arm15627068 Whirlpool Refrigerator Screw164387478 Whirlpool Refrigerator Light Socket17WP2196003 Whirlpool Refrigerator Bar Riser18RANGE ONLY 40W 120V APPL BULB192311632 Whirlpool Refrigerator Wire Harness20WP1115374 Whirlpool Refrigerator Clip21CLIP, WIRING22Connecting Rod23Fastener, Push-On24Escutcheon, Control Box252182111 Whirlpool Refrigerator Thermal Knob26Knob, Air Control27489203 Whirlpool Refrigerator Washer28W10853646 Whirlpool Indicator Light
