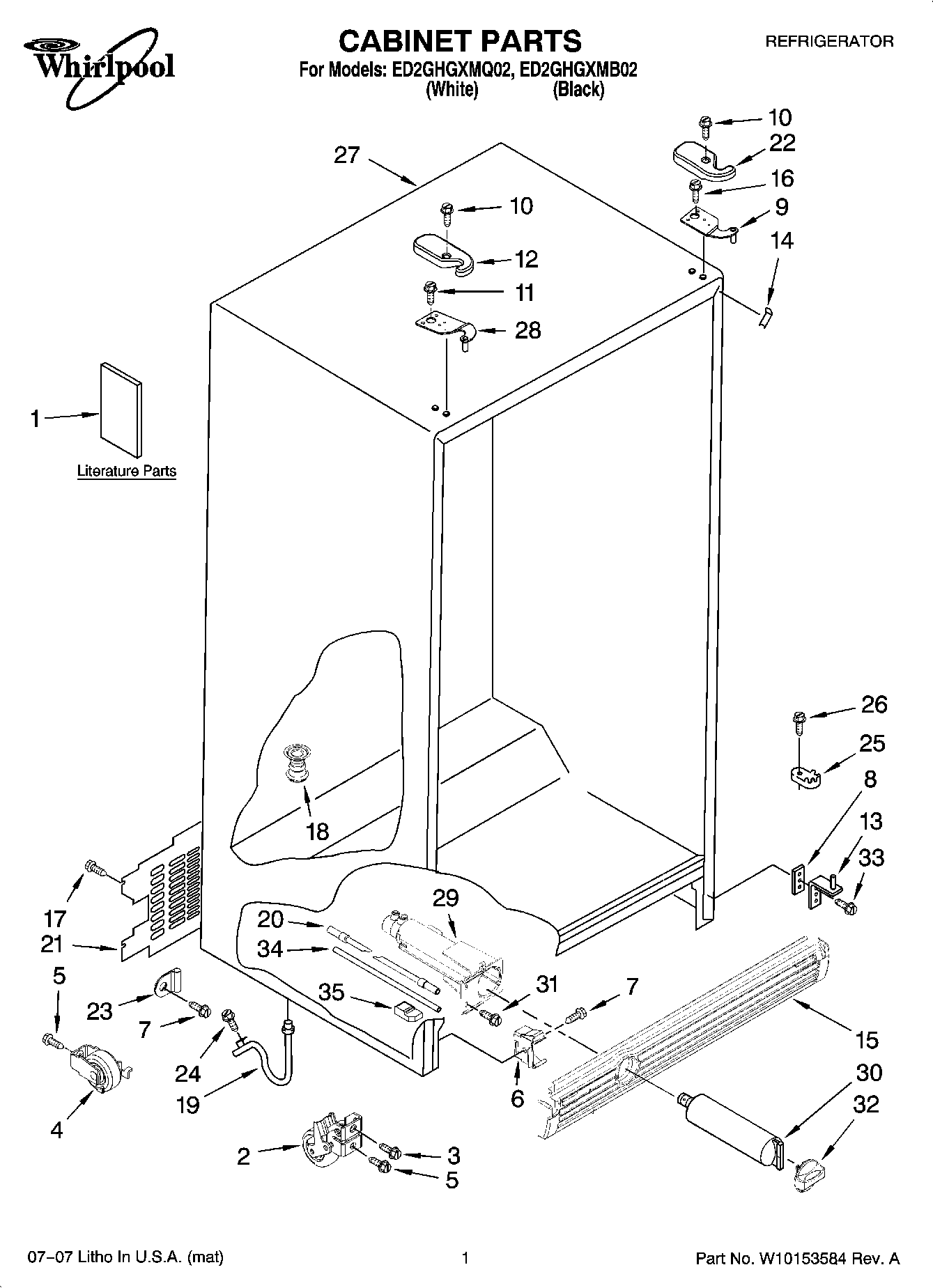

ED2GHGXMB02 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Use & Care Guide
1	Modular Icemaker Service Sheet
1	Service & Wiring Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2209697 Whirlpool Refrigerator Shim
9	WP2203771 Whirlpool Refrigerator Door Hinge
10	WP8281227 Whirlpool Screw
11	WP489128 Whirlpool Refrigerator Screw
12	WP2203407B Whirlpool Refrigerator Cover
12	WP2203407W Whirlpool Refrigerator Cover
13	8201707 Whirlpool Door Hinge
14	Filler, Wrapper (Black)
14	Filler, Wrapper (White)
15	W10802713 Whirlpool Refrigerator Grille
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	WP1108438 Whirlpool Refrigerator Extension
20	WPW10350006 Whirlpool Refrigerator Water Tube
21	WP2188756 Whirlpool Refrigerator Unit Cover
22	WP2203408W Whirlpool Refrigerator Cover
22	WP2203408B Whirlpool Refrigerator Cover
23	549193 Whirlpool Refrigerator Power Clamp
25	WPW10329686 Whirlpool Door Cam Black
26	WP489483 Whirlpool Screw
27	Cabinet, (Not A Serviceable Part)
28	WP2203770 Whirlpool Refrigerator Door Hinge
29	WP2186443 Whirlpool Water Filter Housing
30	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
31	WP489500 Whirlpool Refrigerator Screw
32	WP2186494B Whirlpool Refrigerator Filter Cap
32	WP2186494W Whirlpool Water Filter Cap
33	WP489497 Whirlpool Screw
34	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
35	Block, Housing Support
