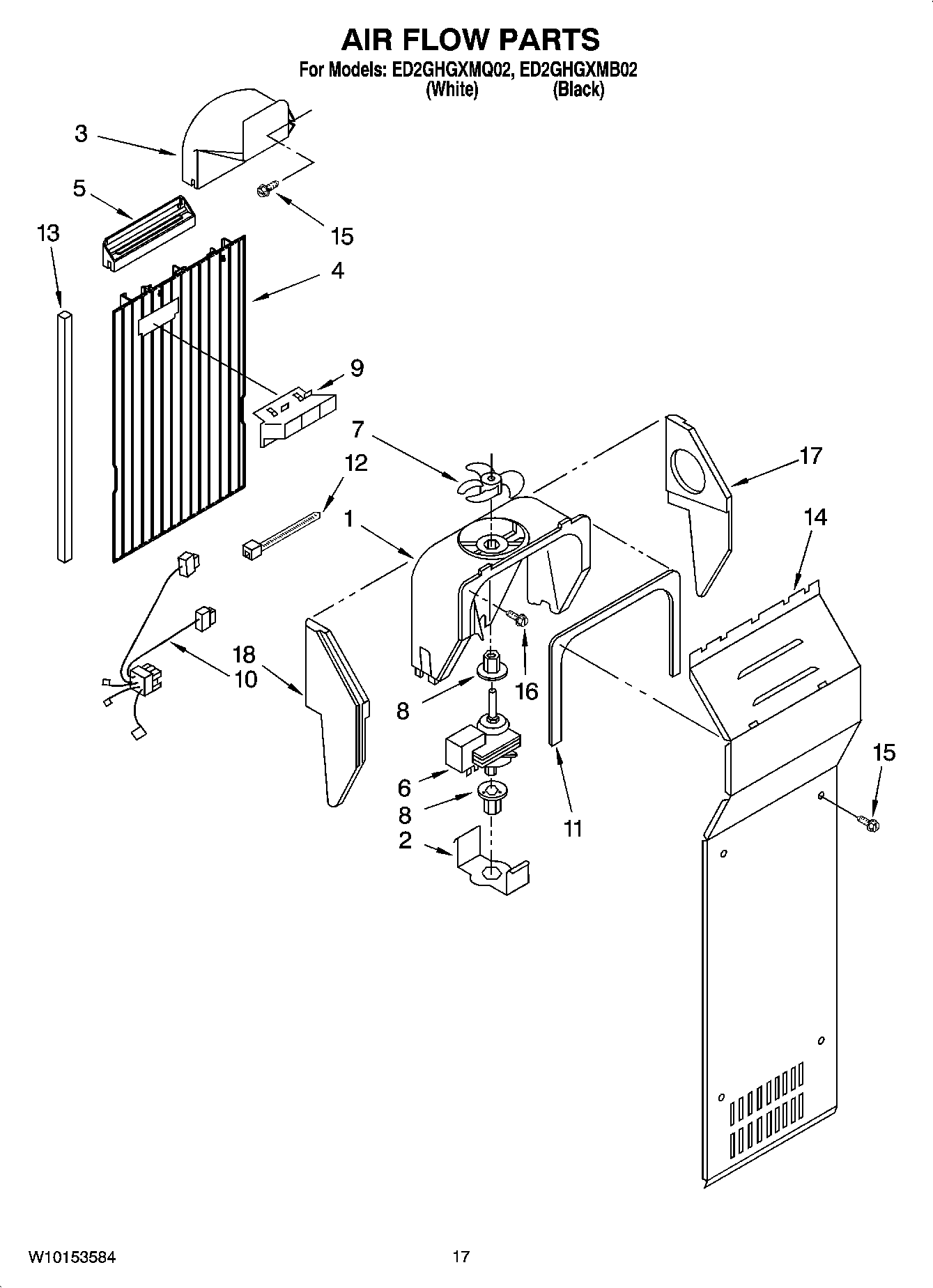

ED2GHGXMB02 10 – AIR FLOW PARTS

Products

Position	Product
1	W11254898 Whirlpool Refrigerator Scroll Fan
2	WP2155590 Whirlpool Refrigerator Retainer
3	Air Scoop
4	4388357 Whirlpool Refrigerator Evaporator Cover
5	Diffuser, Air Duct
6	4389144 Whirlpool Refrigerator Evaporator Fan Motor
7	WP2169142 Whirlpool Fan Blade
8	WP2176759 Whirlpool Refrigerator Grommet
9	2182146 Whirlpool Refrigerator Duct
10	W11234406 Whirlpool Refrigerator Wire Harness
11	WP2155789 Whirlpool Refrigerator Gasket
12	WPW10339879 Whirlpool Wire Tie
13	4388500 Whirlpool Refrigerator Gasket
15	SCREW
16	WP489478 Whirlpool Refrigerator Screw
17	4388358 Whirlpool Refrigerator Support Bracket
