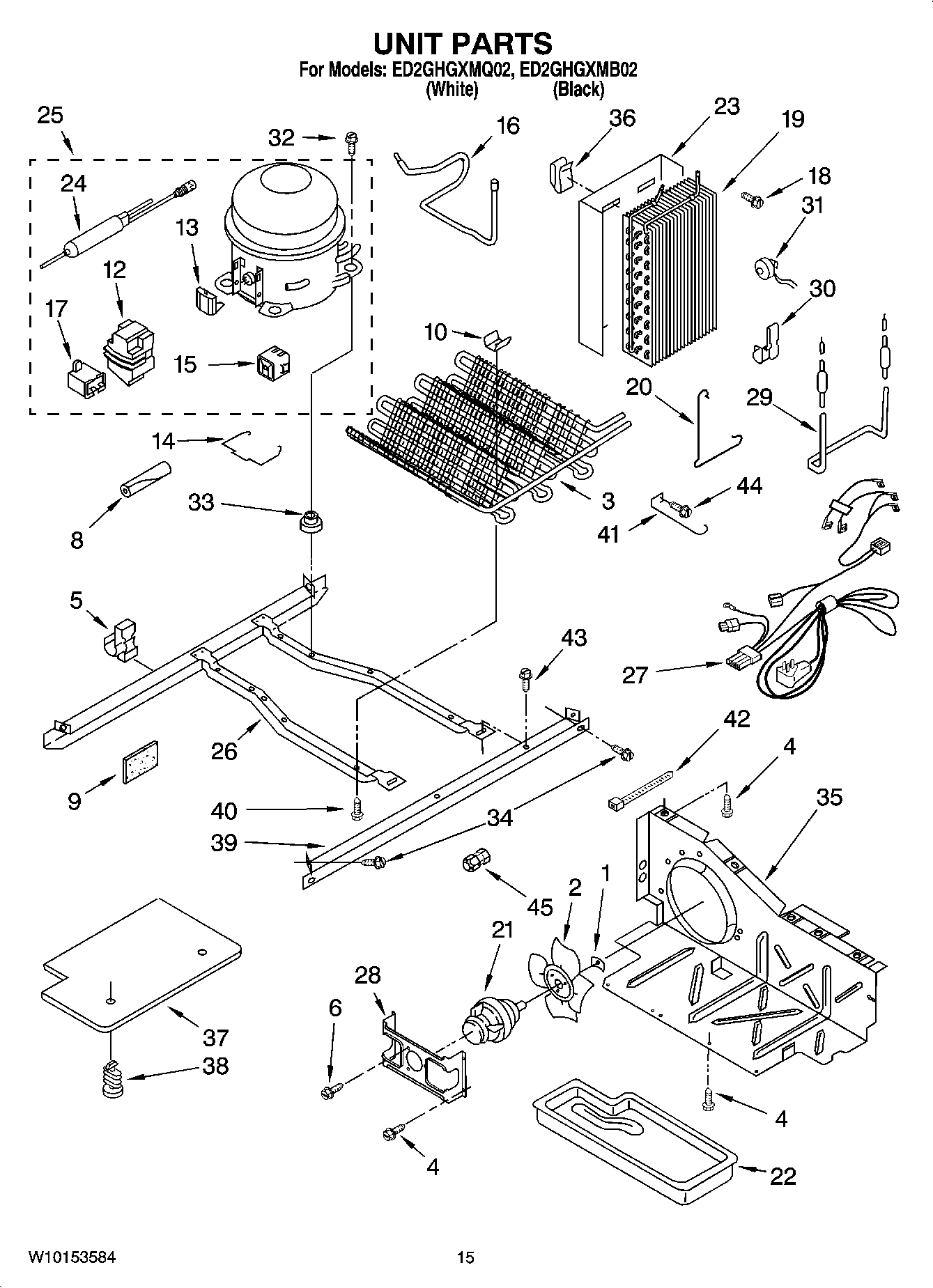

ED2GHGXMQ02 09 – UNIT PARTS

Products

Position	Product
1	Bushing, Compressor
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	681390 Whirlpool Refrigerator Screw
8	SLEEVE
9	W11553819 Whirlpool Refrigerator Insulation
10	W10683556 Whirlpool Refrigerator Clip
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	OVERLOAD
14	2212996 Whirlpool Refrigerator Retainer
15	WP2188831 Whirlpool Refrigerator Start Device
16	2220642 Whirlpool Refrigerator Tube
17	WP65889-4 Whirlpool Refrigerator Capacitor
17	WP4387764 Whirlpool Run Capacitor
18	WP489478 Whirlpool Refrigerator Screw
19	WP2188822 Whirlpool Refrigerator Evaporator
20	Clamp
21	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
22	WPW10614158 Whirlpool Refrigerator Evaporator Tray
23	2217195 Whirlpool Refrigerator Shield
24	WPW10143759 Whirlpool Dryer Filter
24	W10843121 Whirlpool Refrigerator Tube
25	W10355489 Whirlpool Refrigerator Compressor
26	2304903 Whirlpool Refrigerator Frame
27	Unit, Harness
28	WP2181929 Whirlpool Refrigerator Bracket
29	WP2323197 Whirlpool Refrigerator Heater
30	W11623163 Whirlpool Refrigerator Clip
31	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
33	WP4387558 Whirlpool Refrigerator Compressor Grommet
33	876811 Whirlpool Grommet
34	489340 Whirlpool Refrigerator Screw
35	W10896764 Whirlpool Refrigerator Air Baffle
36	Clip, Heat Shield
37	W11115203 Whirlpool Control Panel
38	489396 Whirlpool Refrigerator Clip
39	Unit Mounting Rail
40	W11544659 Whirlpool Refrigerator Screw
41	Guard, Fan
42	WPW10339879 Whirlpool Wire Tie
43	WP489427 Whirlpool Refrigerator Screw
44	WPW10141625 Whirlpool Refrigerator Screw Assembly
45	Following Parts Not Illustrated and Optional Parts No
45	VALVE, ACCESS (5/8“)
45	WPW10334458 Whirlpool Refrigerator Connector
45	978026 Whirlpool Refrigerator Primary Valve
45	978027 Whirlpool Refrigerator Primary Valve
45	978030 Whirlpool Refrigerator Valve
45	WP978025 Whirlpool Refrigerator Valve
45	VALVE, ACCESS (1/2“)
45	876764 Whirlpool Refrigerator Primary Valve
45	WPL ARI30651A8
