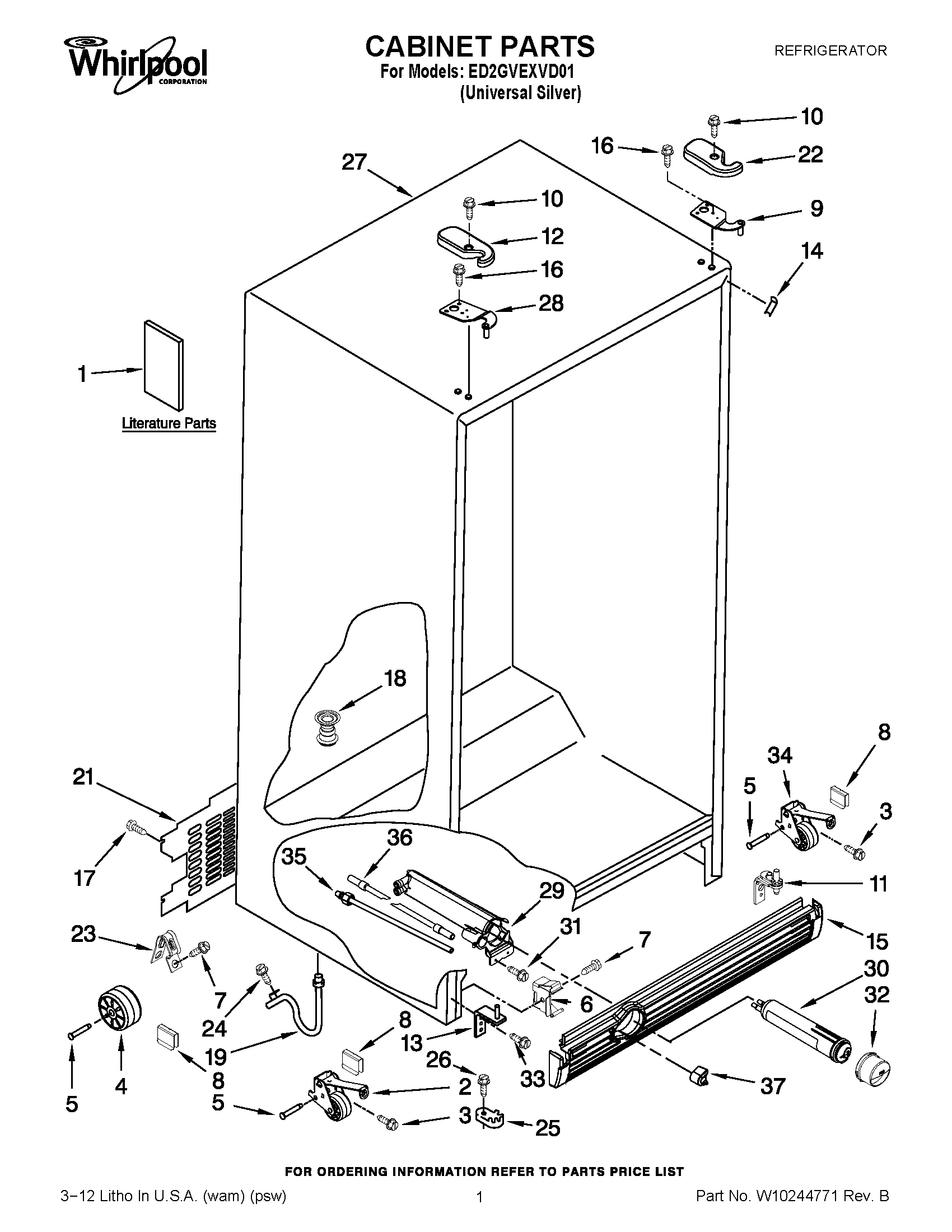

ED2GVEXVD01 01 – CABINET PARTS

ED2GVEXVD01 01 – CABINET PARTS

Written by

in

ED2GVEXVD01 01 – CABINET PARTS

Products

PositionProduct
1USE & CARE GUIDE
1Energy Guide
1Modular Icemaker Service Sheet
1Instruction Sheet, Door Removal
1Service & Wiring Sheet
2WPW10304660 Whirlpool Wheel Assembly
3W10803534 Whirlpool Screw
4WPW10475495 Whirlpool Roller Assembly
5W11594405 Whirlpool Axle
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8WP2174706 Whirlpool Refrigerator Pin Hitch
9HINGE TOP (RC)
10WP8281227 Whirlpool Screw
11HINGE BOTTOM RC
12WP2203407B Whirlpool Refrigerator Cover
13HINGE BOTTOM
14W11252732 Whirlpool Refrigerator Filler
15GRILLE (BLACK)
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19W11512417 Whirlpool Drain Connector
21WP2188756 Whirlpool Refrigerator Unit Cover
22WP2203408B Whirlpool Refrigerator Cover
23549193 Whirlpool Refrigerator Power Clamp
25WPW10329686 Whirlpool Door Cam Black
26WP489483 Whirlpool Screw
27CABINET (NOT A SERVICEABLE PART)
28HINGE TOP (FC)
29WPW10121138 Whirlpool Refrigerator Water Filter Housing
30FILTER 3-SINGLE TEAL
31WP489500 Whirlpool Refrigerator Screw
32WP2260518B Whirlpool Water Filter Cap
33WP489497 Whirlpool Screw
34WPW10304659 Whirlpool Wheel Assembly
35WPW10350006 Whirlpool Refrigerator Water Tube
36TUBE, FILTER INLET
37WP2260503B Whirlpool Refrigerator Button
