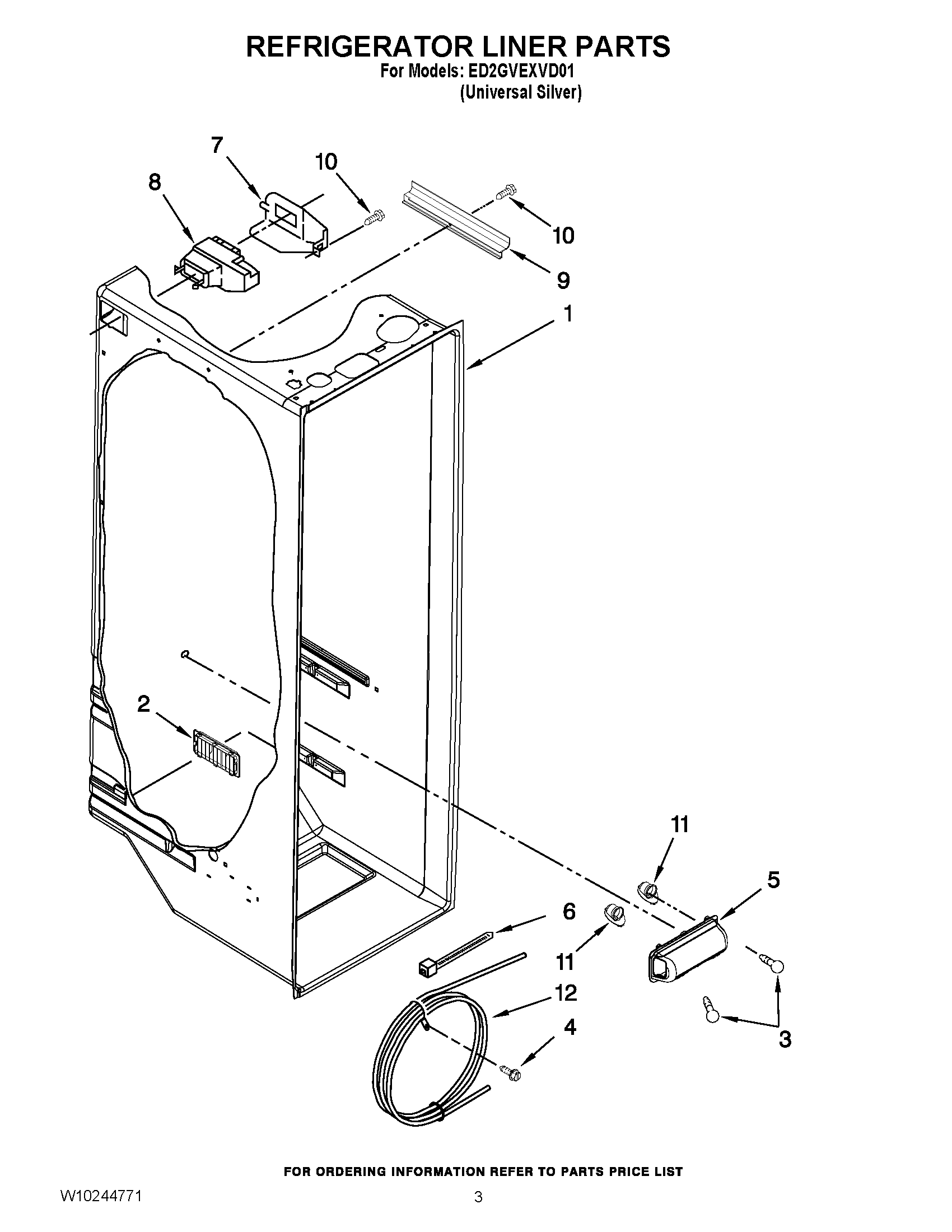

ED2GVEXVD01 02 – REFRIGERATOR LINER PARTS

ED2GVEXVD01 02 – REFRIGERATOR LINER PARTS

Written by

in

ED2GVEXVD01 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2Louver
3W11679940 Whirlpool Refrigerator Light Bulb Assembly
4Screw (2)
5W11239891 Whirlpool Refrigerator Light Lens
6WPW10339879 Whirlpool Wire Tie
72152019 Whirlpool Refrigerator Cover
8WPW10151374 Whirlpool Refrigerator Diffuser
9W10252495 Whirlpool Refrigerator Wire Cover
10W10759522 Whirlpool Screw
114387478 Whirlpool Refrigerator Light Socket
12RESERVOIR
