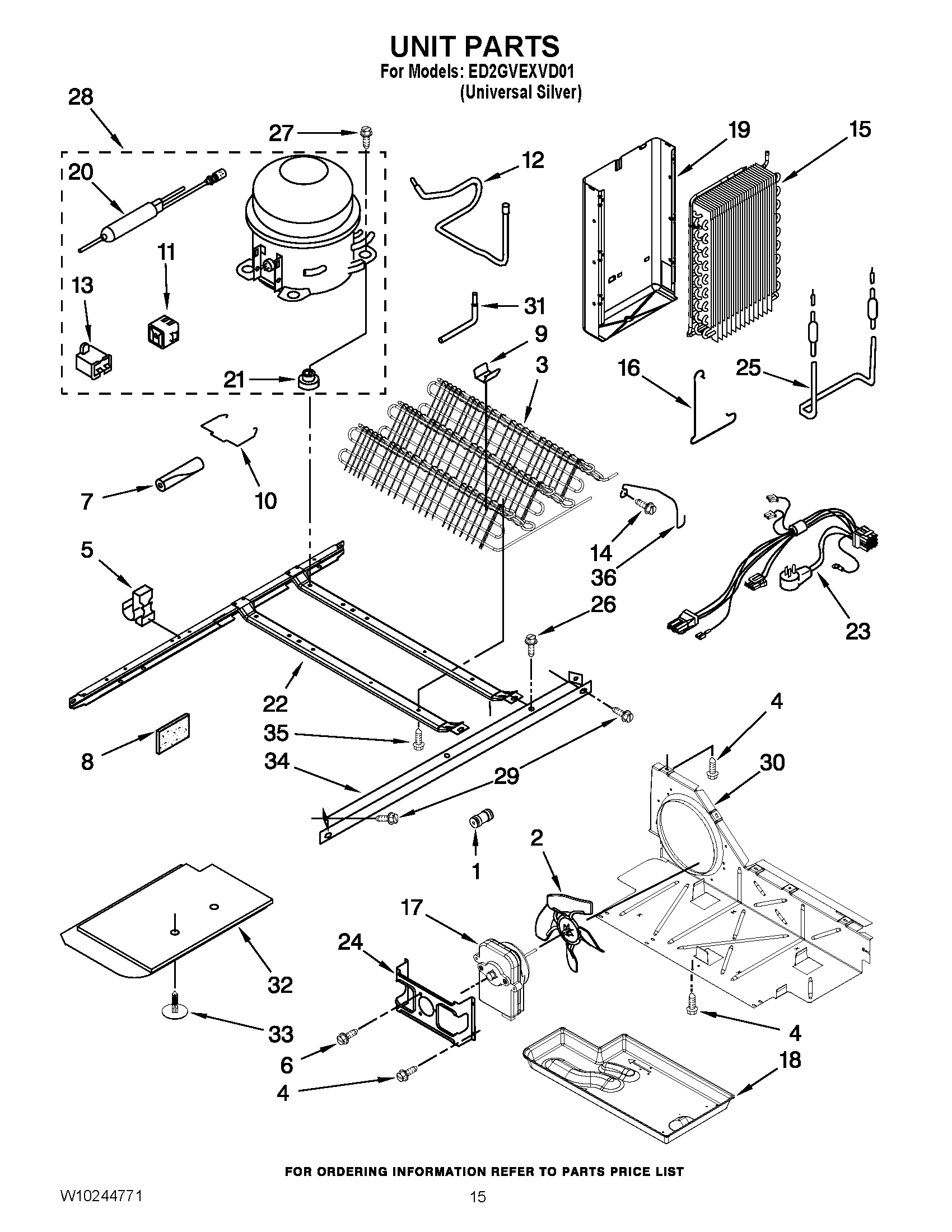

ED2GVEXVD01 09 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10334458 Whirlpool Refrigerator Connector
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	SLEEVE
8	W11553819 Whirlpool Refrigerator Insulation
9	W10683556 Whirlpool Refrigerator Clip
10	2212996 Whirlpool Refrigerator Retainer
11	WPW10240344 Whirlpool Refrigerator Start Device
11	WP2188831 Whirlpool Refrigerator Start Device
12	2220642 Whirlpool Refrigerator Tube
13	WP65889-4 Whirlpool Refrigerator Capacitor
14	WP489478 Whirlpool Refrigerator Screw
15	WP2188822 Whirlpool Refrigerator Evaporator
16	Clamp
17	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
18	WPW10614158 Whirlpool Refrigerator Evaporator Tray
19	WPW10194474 Whirlpool Refrigerator Shield
20	WPW10143759 Whirlpool Dryer Filter
21	876811 Whirlpool Grommet
21	W11661108 Whirlpool Grommet
22	2304903 Whirlpool Refrigerator Frame
23	UNIT, HARNESS (INCLUDES POWER CORD)
24	WP2181929 Whirlpool Refrigerator Bracket
25	WP2323197 Whirlpool Refrigerator Heater
26	WP489427 Whirlpool Refrigerator Screw
28	W10355489 Whirlpool Refrigerator Compressor
29	489340 Whirlpool Refrigerator Screw
30	BAFFLE, AIR
31	W10858105 Whirlpool Refrigerator Tube
32	W11115203 Whirlpool Control Panel
33	489396 Whirlpool Refrigerator Clip
34	W10207512 Whirlpool Rail Unit
35	W11544659 Whirlpool Refrigerator Screw
36	Guard, Fan
