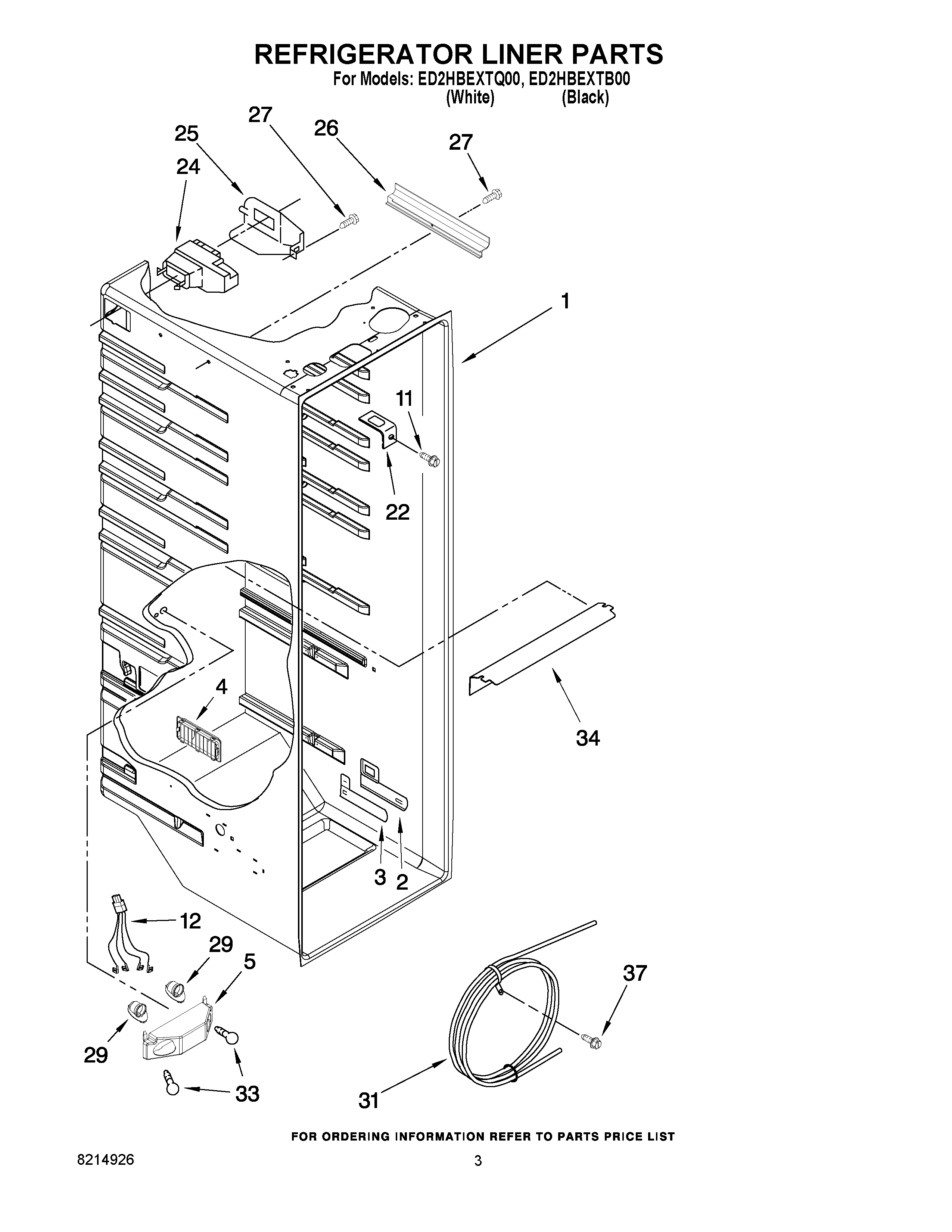

ED2HBEXTQ00 02 – REFRIGERATOR LINER PARTS

ED2HBEXTQ00 02 – REFRIGERATOR LINER PARTS

Written by

in

ED2HBEXTQ00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5Bracket, Dual Crisper Light
11WP488488 Whirlpool Refrigerator Screw
122311637 Whirlpool Refrigerator Wire Harness
22WP2256085 Whirlpool Refrigerator Retainer
24WPW10151374 Whirlpool Refrigerator Diffuser
252152019 Whirlpool Refrigerator Cover
262150331 Whirlpool Refrigerator Wire Cover
27W10759522 Whirlpool Screw
294387478 Whirlpool Refrigerator Light Socket
31WP2256126 Whirlpool Refrigerator Reservoir
33W11679940 Whirlpool Refrigerator Light Bulb Assembly
34Light Lens
37Screw (2)
