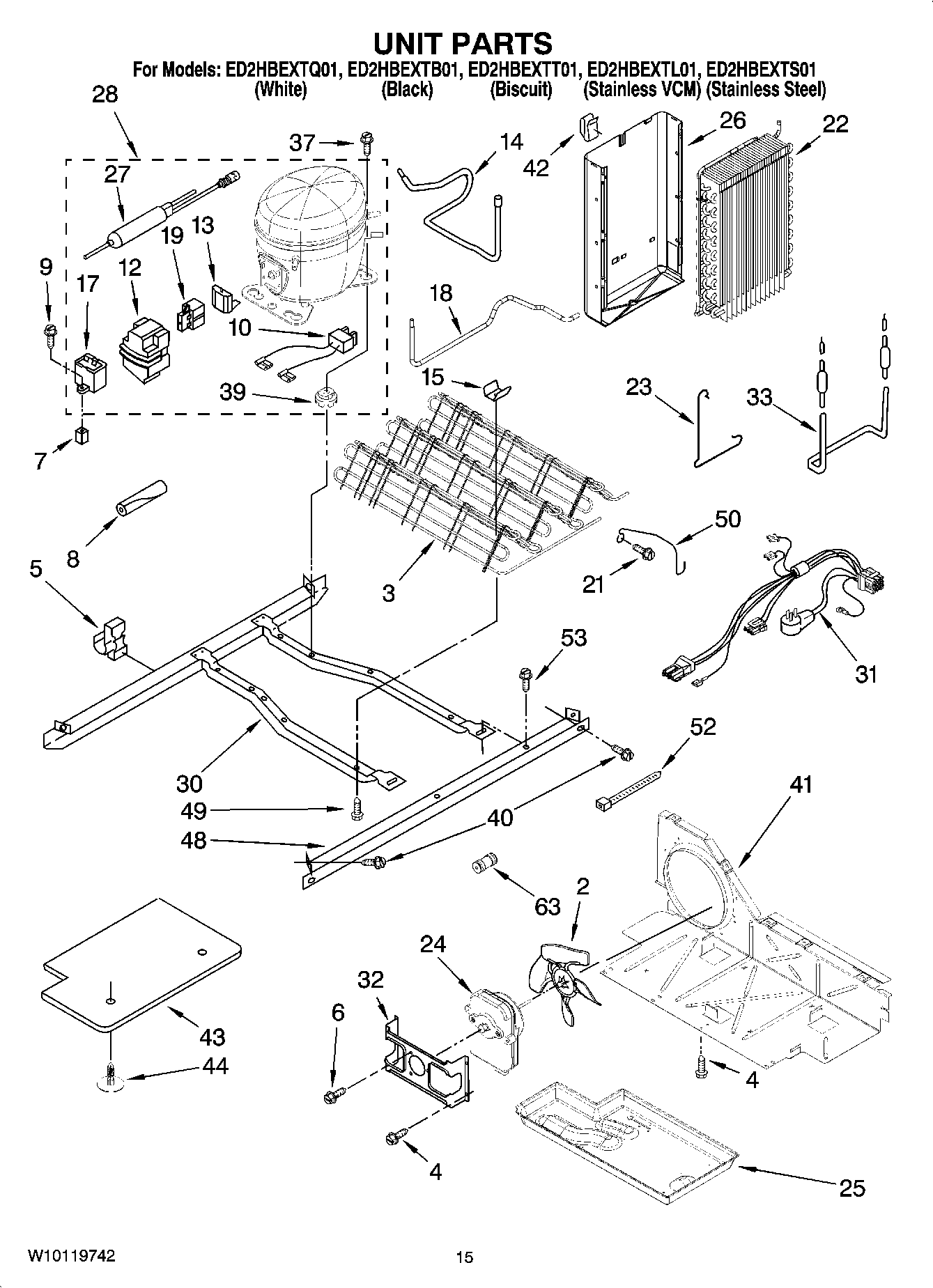

ED2HBEXTT01 09 – UNIT PARTSadmin2025-04-26T11:02:36+00:00ED2HBEXTT01 09 – UNIT PARTS ProductsPositionProduct2W11458267 Whirlpool Refrigerator Fan Blade32324712 Whirlpool Refrigerator Condenser4WP489464 Whirlpool Refrigerator Screw5Clip, Wire & Tube6WP8533993 Whirlpool Refrigerator Screw7Screw Grommet8SLEEVE9W11693756 Whirlpool Screw Assembly10WP2172890 Whirlpool Refrigerator Wire102311653 Whirlpool Refrigerator Jumper Wire122217635 Whirlpool Term Cover12WP2162358 Whirlpool Refrigerator Terminal Cover13WP2187145 Whirlpool Refrigerator Overload132162216 Whirlpool Refrigerator Overload142220642 Whirlpool Refrigerator Tube15W10683556 Whirlpool Refrigerator Clip17WPW10662129 Whirlpool Refrigerator Run Capacitor17WP65889-4 Whirlpool Refrigerator Capacitor182261599 Whirlpool Refrigerator Tube19W10920279 Whirlpool Refrigerator Start Relay19WP10097204 Whirlpool Start Relay21WP489478 Whirlpool Refrigerator Screw22WP2188822 Whirlpool Refrigerator Evaporator23Clamp24WP2188874 Whirlpool Refrigerator Condenser Motor25WPW10614158 Whirlpool Refrigerator Evaporator Tray262217195 Whirlpool Refrigerator Shield27WPW10143759 Whirlpool Dryer Filter27W10843121 Whirlpool Refrigerator Tube28W10309990 Whirlpool Refrigerator Compressor302304903 Whirlpool Refrigerator Frame312311733 Whirlpool Refrigerator Wire Harness32WP2181929 Whirlpool Refrigerator Bracket33WP2323197 Whirlpool Refrigerator Heater39WP4387558 Whirlpool Refrigerator Compressor Grommet39876811 Whirlpool Grommet40489340 Whirlpool Refrigerator Screw41W10896764 Whirlpool Refrigerator Air Baffle42Clip, Heat Shield43Unit Cover, Bottom44489396 Whirlpool Refrigerator Clip48Unit Mounting Rail49W11544659 Whirlpool Refrigerator Screw50Guard, Fan52WPW10339879 Whirlpool Wire Tie53WP489427 Whirlpool Refrigerator Screw63VALVE, ACCESS (5/8``)63Following Parts Not Illustrated and Optional Parts Not63978026 Whirlpool Refrigerator Primary Valve63978027 Whirlpool Refrigerator Primary Valve63978030 Whirlpool Refrigerator Valve63WP978025 Whirlpool Refrigerator Valve63VALVE, ACCESS (1/2``)63876764 Whirlpool Refrigerator Primary Valve63WP4373559 Whirlpool Fitting63WPL ARI30829A7
