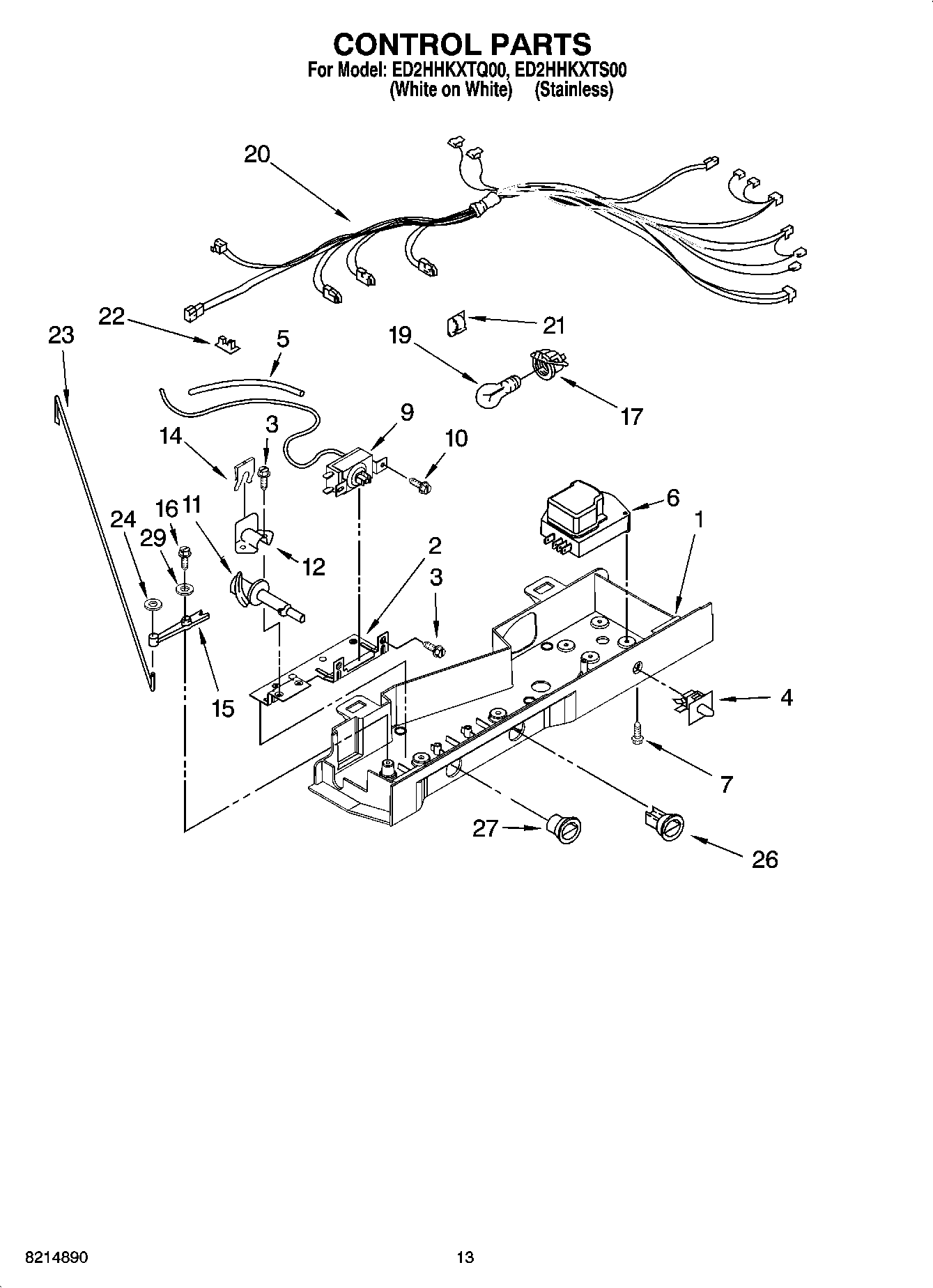

ED2HHKXTQ00 09 – CONTROL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	CLEANER, (STAINLESS STEEL)
	W11729596 Whirlpool Ice Maker Field Install Kit
	WPL 799833
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	TAPE, VINYL (3/4 X 108“)
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
	WP503695 Whirlpool Refrigerator Sealer
	833938 Whirlpool Refrigerator Terminal
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	ACCESSORIES
	Miscellaneous
	WP505587 Whirlpool Refrigerator Sealer
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	TORX SCREW WRENCH
1	Control Box
2	2311611 Whirlpool Refrigerator Bracket
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2196003 Whirlpool Refrigerator Bar Riser
6	W10822278 Whirlpool Defrost Timer
7	489392 Whirlpool Refrigerator Screw
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
10	WP965173 Whirlpool Dishwasher Screw
11	WP2182195 Whirlpool Refrigerator Cam
12	1110560 Whirlpool Refrigerator Bearing
14	WP2196062 Whirlpool Refrigerator Clip
15	Pivot Arm
16	627068 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
19	RANGE ONLY 40W 120V APPL BULB
20	2311636 Whirlpool Refrigerator Wire Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	2311631 Whirlpool Refrigerator Rod
24	Fastener, Push-On
26	W10723843 Whirlpool Refrigerator Thermostat Knob
27	2311615 Whirlpool Refrigerator Knob
29	489203 Whirlpool Refrigerator Washer
