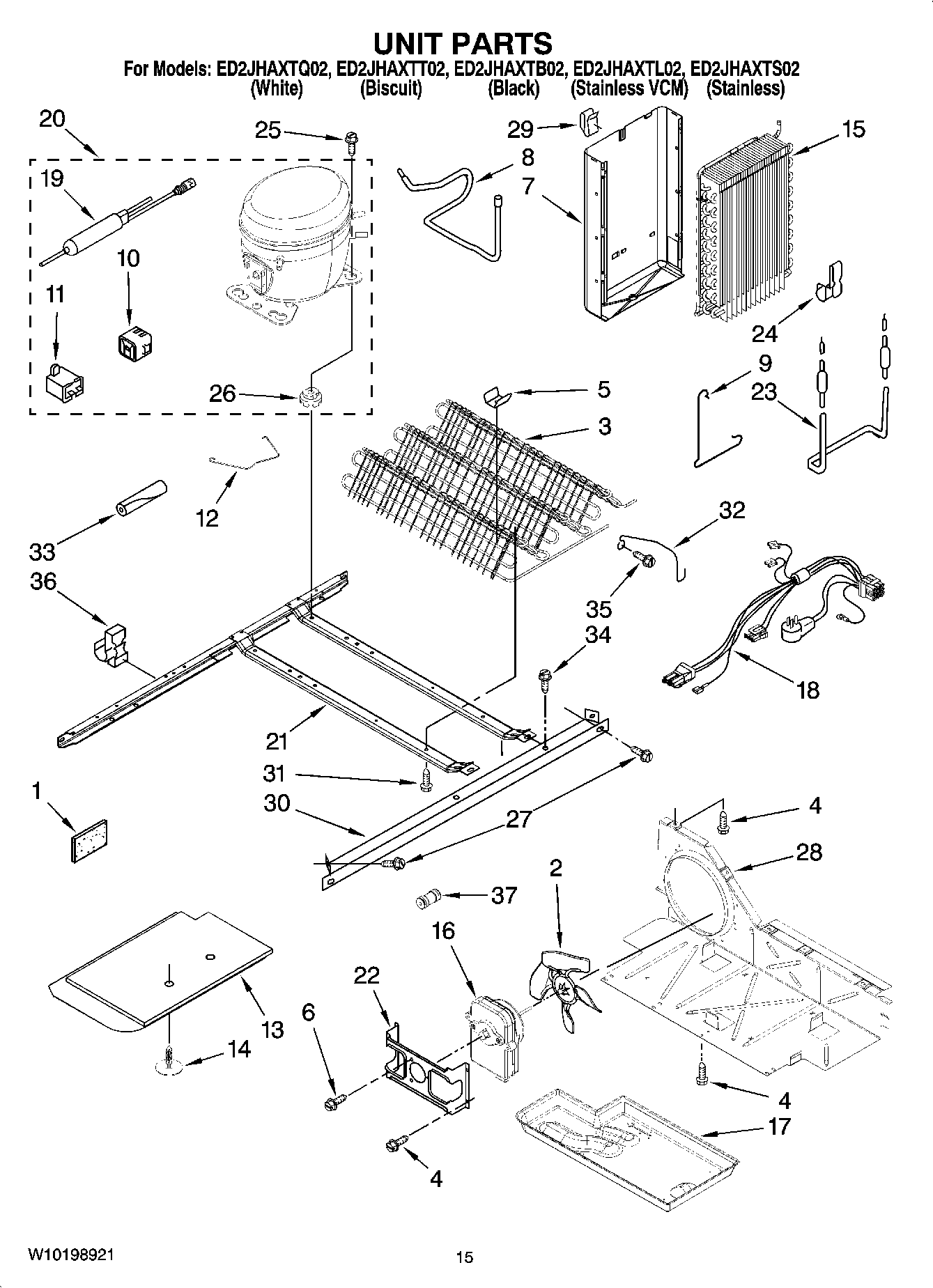

ED2JHAXTL02 09 – UNIT PARTSadmin2025-04-26T11:04:28+00:00ED2JHAXTL02 09 – UNIT PARTS ProductsPositionProductVALVE, ACCESS (1/2``)REFRIGERANT CHARGE 5.0 oz. (R-134)WP978025 Whirlpool Refrigerator Valve978030 Whirlpool Refrigerator Valve978027 Whirlpool Refrigerator Primary Valve978026 Whirlpool Refrigerator Primary Valve876764 Whirlpool Refrigerator Primary ValveVALVE, ACCESS (5/8``)Following Parts Not Illustrated and Optional Parts Not Included1W11553819 Whirlpool Refrigerator Insulation2W11458267 Whirlpool Refrigerator Fan Blade32324712 Whirlpool Refrigerator Condenser4WP489464 Whirlpool Refrigerator Screw5W10683556 Whirlpool Refrigerator Clip6WP8533993 Whirlpool Refrigerator Screw72217195 Whirlpool Refrigerator Shield82205764 Whirlpool Refrigerator Tube9Clamp10W10896198 Whirlpool Refrigerator Start Device11WPW10662129 Whirlpool Refrigerator Run Capacitor122223314 Whirlpool Refrigerator Clip13W11115203 Whirlpool Control Panel14489396 Whirlpool Refrigerator Clip15WP2188822 Whirlpool Refrigerator Evaporator16WP2188874 Whirlpool Refrigerator Condenser Motor17WPW10614158 Whirlpool Refrigerator Evaporator Tray18WPW10309395 Whirlpool Refrigerator Wire Harness19WPW10143759 Whirlpool Dryer Filter20W10139462 Whirlpool Refrigerator Compressor212304903 Whirlpool Refrigerator Frame22WP2181929 Whirlpool Refrigerator Bracket23WP2323197 Whirlpool Refrigerator Heater24W11623163 Whirlpool Refrigerator Clip26876811 Whirlpool Grommet26WP4387558 Whirlpool Refrigerator Compressor Grommet27489340 Whirlpool Refrigerator Screw28W10896764 Whirlpool Refrigerator Air Baffle29Clip, Heat Shield30Unit Mounting Rail31W11544659 Whirlpool Refrigerator Screw32Guard, Fan33SLEEVE34WP489427 Whirlpool Refrigerator Screw35WP489478 Whirlpool Refrigerator Screw36Clip, Wire & Tube37WPW10334458 Whirlpool Refrigerator Connector
