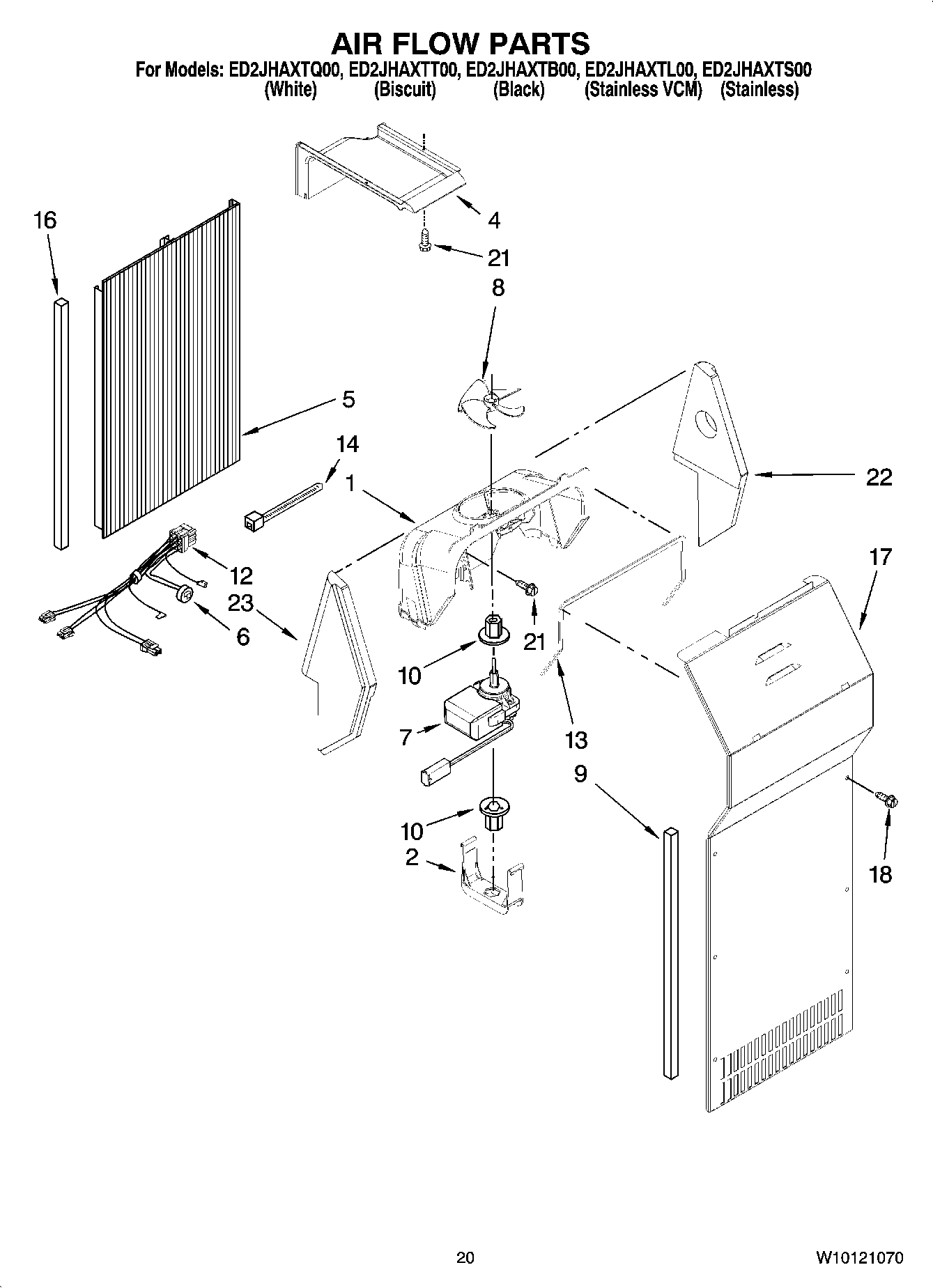

ED2JHAXTQ00 12 – AIR FLOW PARTS, OPTIONAL PARTS (NOT INCLUDED)

ED2JHAXTQ00 12 – AIR FLOW PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

ED2JHAXTQ00 12 – AIR FLOW PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
Miscellaneous
Torx Key
WP542638 Whirlpool Refrigerator Grease
TORX SCREW WRENCH
799344 Whirlpool Refrigerator Paint
212643 Whirlpool Refrigerator Permagum Sealer
72017 Whirlpool Appliance Touch-Up Paint White
350942 Whirlpool Spray Paint
833938 Whirlpool Refrigerator Terminal
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
1W11254898 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
42313359 Whirlpool Refrigerator Air Duct
5Air Duct Freezer
6WPW10225581 Whirlpool Refrigerator Defrost Thermostat
7MOTOR-EVAP
8WP2169142 Whirlpool Fan Blade
9WP2304241 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
122310237 Whirlpool Refrigerator Wire Harness
13WP2155789 Whirlpool Refrigerator Gasket
14WPW10339879 Whirlpool Wire Tie
164388500 Whirlpool Refrigerator Gasket
17Cover, Evaporator (Includes 9)
184389654 Whirlpool Screw
21WP489478 Whirlpool Refrigerator Screw
224388358 Whirlpool Refrigerator Support Bracket
