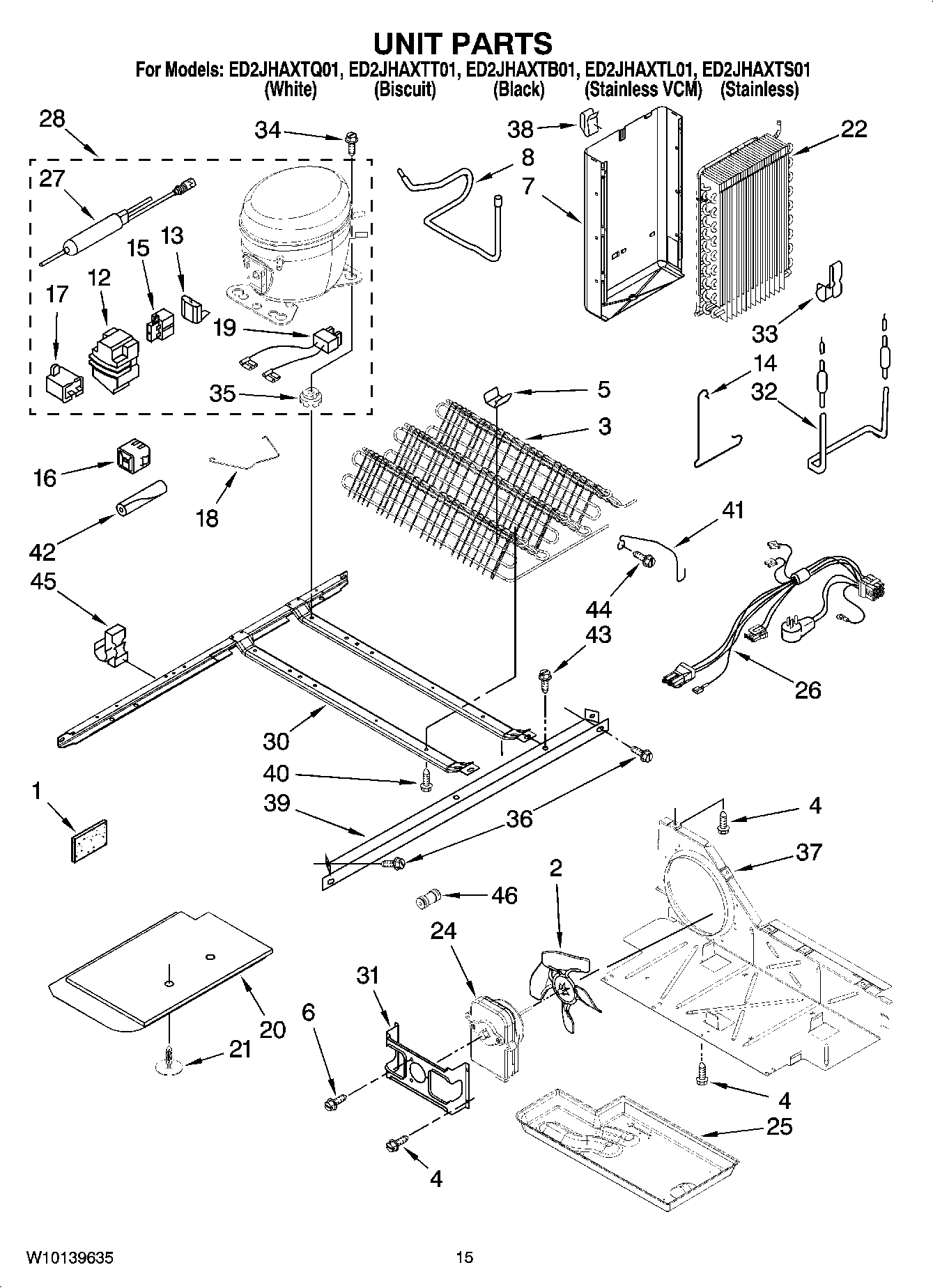

ED2JHAXTQ01 09 – UNIT PARTS

Products

Position	Product
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	2217195 Whirlpool Refrigerator Shield
8	2205764 Whirlpool Refrigerator Tube
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2187145 Whirlpool Refrigerator Overload
14	Clamp
15	W10920279 Whirlpool Refrigerator Start Relay
16	W10896198 Whirlpool Refrigerator Start Device
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	2223314 Whirlpool Refrigerator Clip
19	WP2172890 Whirlpool Refrigerator Wire
20	W11115203 Whirlpool Control Panel
21	489396 Whirlpool Refrigerator Clip
22	WP2188822 Whirlpool Refrigerator Evaporator
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	WPW10309395 Whirlpool Refrigerator Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
27	W10843121 Whirlpool Refrigerator Tube
28	W10139462 Whirlpool Refrigerator Compressor
30	2304903 Whirlpool Refrigerator Frame
31	WP2181929 Whirlpool Refrigerator Bracket
32	WP2323197 Whirlpool Refrigerator Heater
33	W11623163 Whirlpool Refrigerator Clip
35	876811 Whirlpool Grommet
35	WP4387558 Whirlpool Refrigerator Compressor Grommet
36	489340 Whirlpool Refrigerator Screw
37	W10896764 Whirlpool Refrigerator Air Baffle
38	Clip, Heat Shield
39	Unit Mounting Rail
40	W11544659 Whirlpool Refrigerator Screw
41	Guard, Fan
42	SLEEVE
43	WP489427 Whirlpool Refrigerator Screw
44	WP489478 Whirlpool Refrigerator Screw
45	Clip, Wire & Tube
46	Following Parts Not Illustrated and Optional Parts Not Included
46	VALVE, ACCESS (5/8“)
46	978026 Whirlpool Refrigerator Primary Valve
46	978027 Whirlpool Refrigerator Primary Valve
46	978030 Whirlpool Refrigerator Valve
46	WP978025 Whirlpool Refrigerator Valve
46	VALVE, ACCESS (1/2“)
46	876764 Whirlpool Refrigerator Primary Valve
46	WP4373559 Whirlpool Fitting
46	REFRIGERANT CHAR
