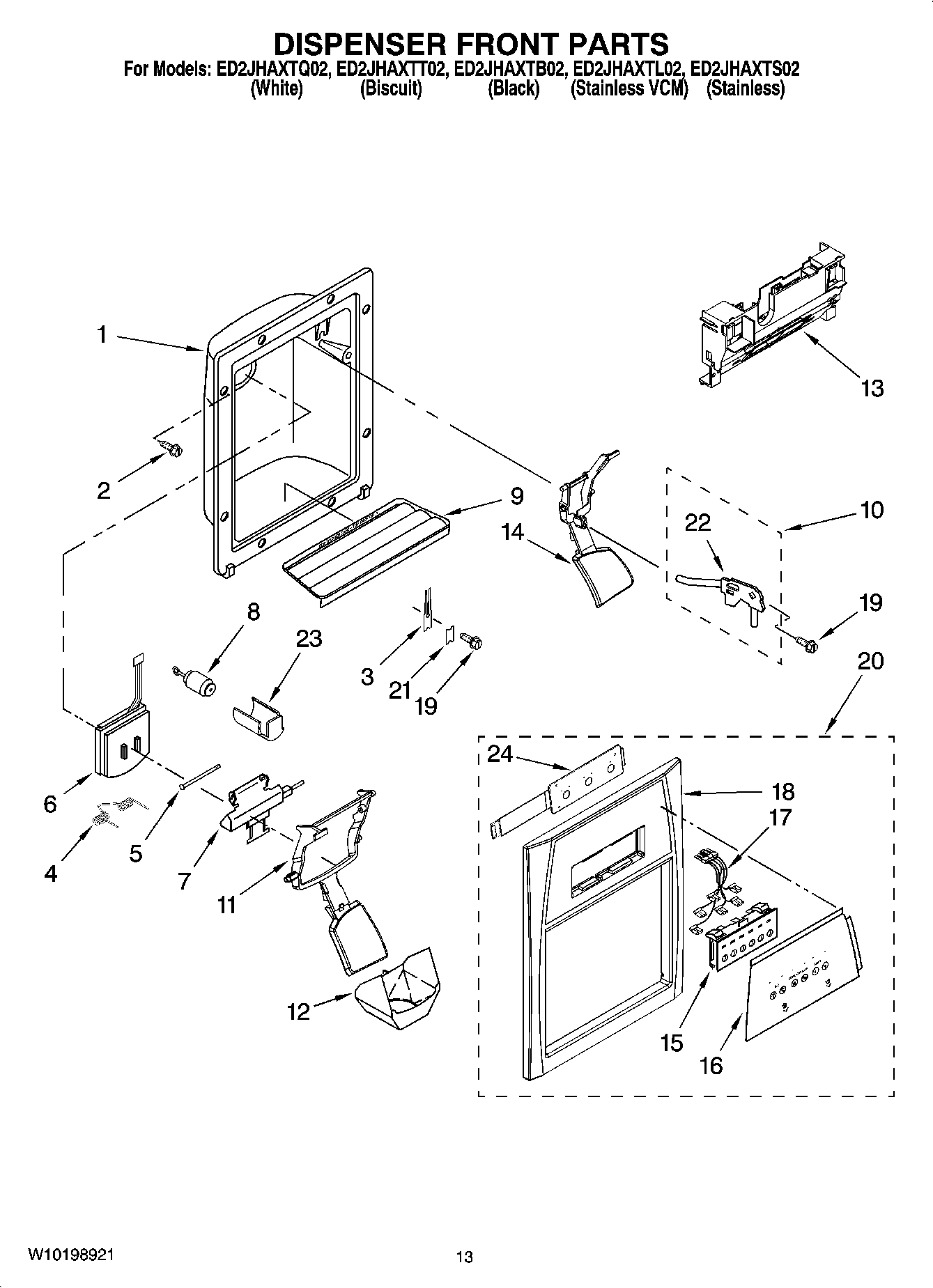

ED2JHAXTQ02 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	WP2206671B Whirlpool Refrigerator Grille
9	Grille, Overflow (Biscuit)
9	WP2206671W Whirlpool Refrigerator Grille
10	8201537 Whirlpool Water Tubing Assembly
11	Lever, Ice Dispenser (Biscuit)
11	WP2255431W Whirlpool Refrigerator Dispenser Arm
11	WP2255431B Whirlpool Refrigerator Dispenser Arm
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	Bracket, Control
14	WP2255432B Whirlpool Refrigerator Dispenser Arm
14	WP2255432T Whirlpool Refrigerator Dispenser Arm
14	WP2255432W Whirlpool Refrigerator Dispenser Arm
15	Switch Assembly (Not Available, Order 20)
16	Overlay, Front Cover (Not Available, Order 20)
17	W10683539 Whirlpool Refrigerator Dispensing Harness
18	Front Cover, Housing (Not Available, Order 20)
19	WP3400906 Whirlpool Refrigerator Screw
20	Front Cover Assembly (Includes Items 15, 16 & 18) (Black)
20	Front Cover Assembly (Includes Items 15, 16 & 18) (Biscuit)
20	Front Cover Assembly (Includes Items 15, 16 & 18) (White)
21	WP2195051 Whirlpool Refrigerator Clip
22	WP2304673 Whirlpool Refrigerator Bracket
23	Sleeve, Delay Mechanism
24	2305571 Whirlpool Gasket Assembly
