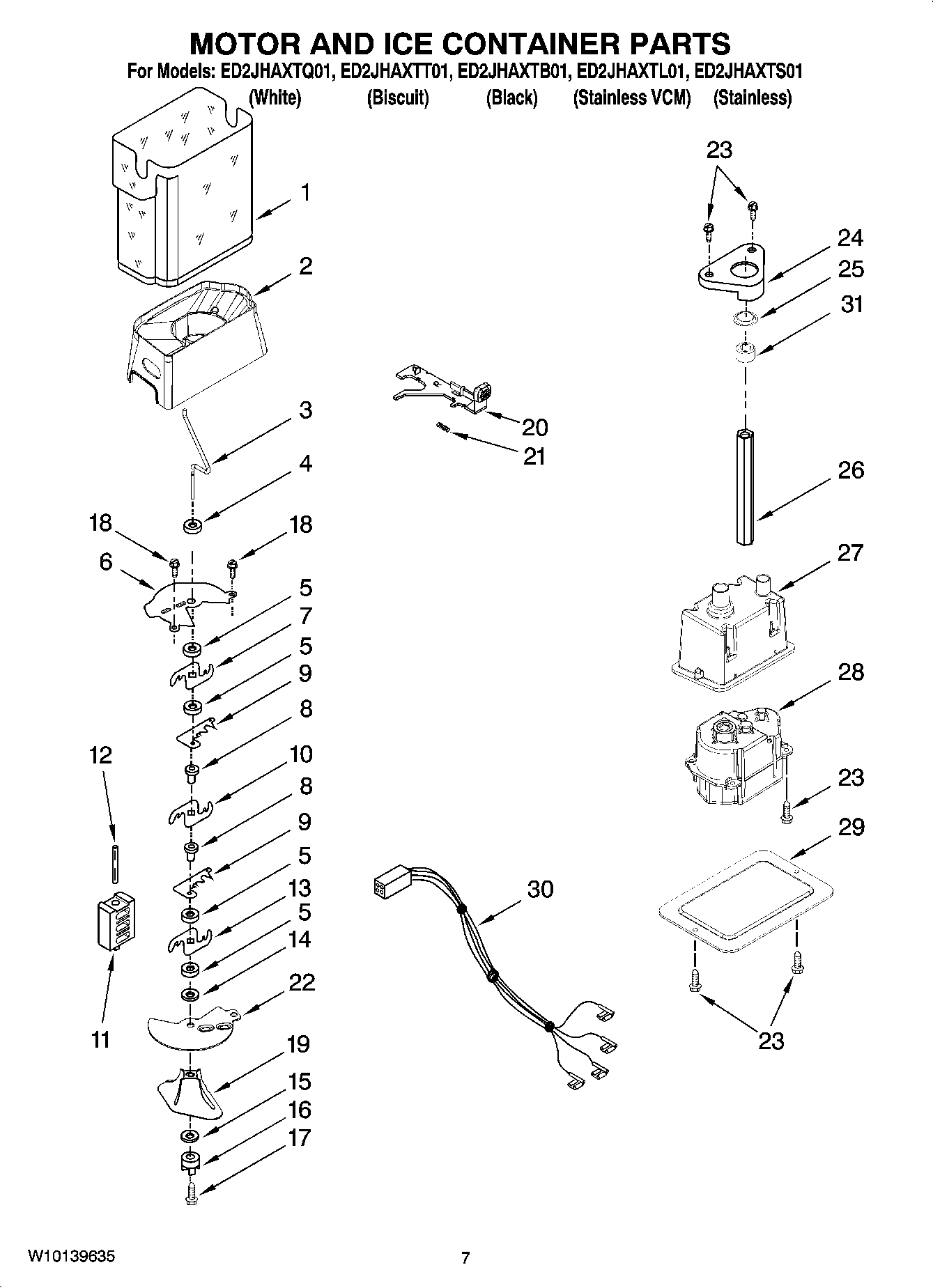

ED2JHAXTS01 05 – MOTOR AND ICE CONTAINER PARTS

ED2JHAXTS01 05 – MOTOR AND ICE CONTAINER PARTS

Written by

in

ED2JHAXTS01 05 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1Ice Bin
2Crusher Bin
3Auger
4Washer
5WP1119007 Whirlpool Refrigerator Spacer
6Cover, Crusher
7W10278733 Whirlpool Refrigerator Blade
8WP1119005 Whirlpool Refrigerator Spacer
9Blade, Fixed
10W10278732 Whirlpool Refrigerator Blade
112317239 Whirlpool Refrigerator Blade Block
12489229 Whirlpool Refrigerator Roll Pin
13W10278731 Whirlpool Refrigerator Blade
14WP489235 Whirlpool Refrigerator Washer
15WP2198661 Whirlpool Refrigerator Washer
16W11629923 Whirlpool Coupling
17WP8281164 Whirlpool Refrigerator Screw
18WP3400065 Whirlpool Refrigerator Screw
192317243 Whirlpool Refrigerator Wiper
20Latch, Bin
21WP2198608 Whirlpool Refrigerator Spring
222317250 Whirlpool Refrigerator Divider
23WP8281163 Whirlpool Refrigerator Screw
24WP2188919 Whirlpool Refrigerator Holder
25WP2198628 Whirlpool Door Seal
26WP2188917 Whirlpool Drive Shaft
27Enclosure, Motor
28W10271509 Whirlpool Refrigerator Ice Maker Auger Motor
29Cover
30W10683539 Whirlpool Refrigerator Dispensing Harness
31WP2315559 Whirlpool Motor Coupling
100Ice Container (Complete)
