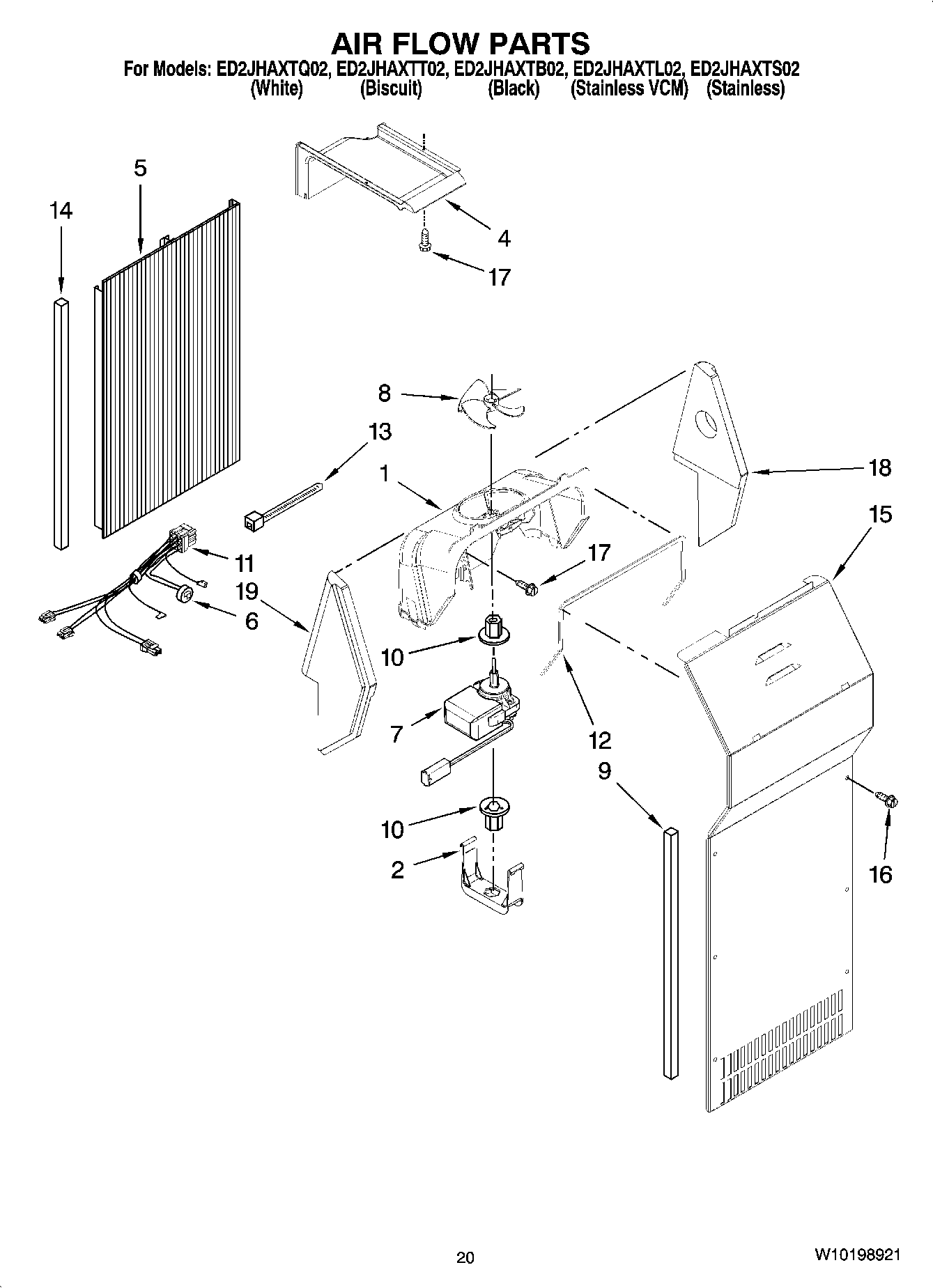

ED2JHAXTS02 12 – AIR FLOW PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	W10134625 Whirlpool Refrigerator Touch-Up Paint Apollo Grey
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
	Miscellaneous
	Torx Key
	WP542638 Whirlpool Refrigerator Grease
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	TORX SCREW WRENCH
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	WP503695 Whirlpool Refrigerator Sealer
	833938 Whirlpool Refrigerator Terminal
	WP505587 Whirlpool Refrigerator Sealer
1	W11254898 Whirlpool Refrigerator Scroll Fan
2	WP2155590 Whirlpool Refrigerator Retainer
4	2313359 Whirlpool Refrigerator Air Duct
5	Air Duct Freezer
6	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
7	4389144 Whirlpool Refrigerator Evaporator Fan Motor
8	WP2169142 Whirlpool Fan Blade
9	WP2304241 Whirlpool Refrigerator Gasket
10	WP2176759 Whirlpool Refrigerator Grommet
11	W11234406 Whirlpool Refrigerator Wire Harness
12	WP2155789 Whirlpool Refrigerator Gasket
13	WPW10339879 Whirlpool Wire Tie
14	4388500 Whirlpool Refrigerator Gasket
15	Cover, Evaporator (Includes 9)
16	4389654 Whirlpool Screw
17	WP489478 Whirlpool Refrigerator Screw
18	4388358 Whirlpool Refrigerator Support Bracket
