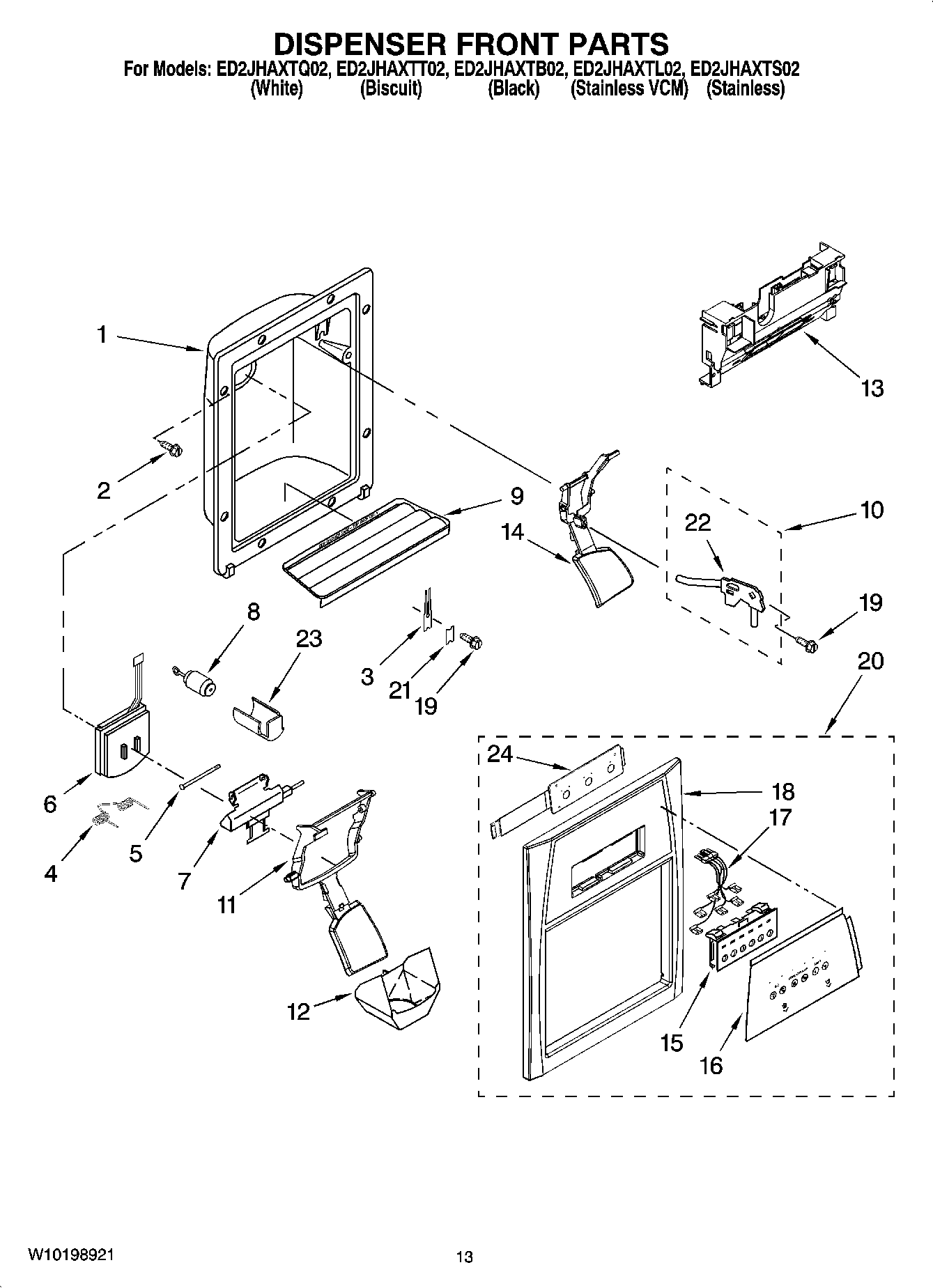

ED2JHAXTT02 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1Housing Dispenser (Not Serviced)
2WP3196557 Whirlpool Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9WP2206671B Whirlpool Refrigerator Grille
9Grille, Overflow (Biscuit)
9WP2206671W Whirlpool Refrigerator Grille
108201537 Whirlpool Water Tubing Assembly
11Lever, Ice Dispenser (Biscuit)
11WP2255431W Whirlpool Refrigerator Dispenser Arm
11WP2255431B Whirlpool Refrigerator Dispenser Arm
12WP2180224 Whirlpool Dispenser Funnel Guide
13Bracket, Control
14WP2255432B Whirlpool Refrigerator Dispenser Arm
14WP2255432T Whirlpool Refrigerator Dispenser Arm
14WP2255432W Whirlpool Refrigerator Dispenser Arm
15Switch Assembly (Not Available, Order 20)
16Overlay, Front Cover (Not Available, Order 20)
17W10683539 Whirlpool Refrigerator Dispensing Harness
18Front Cover, Housing (Not Available, Order 20)
19WP3400906 Whirlpool Refrigerator Screw
20Front Cover Assembly (Includes Items 15, 16 & 18) (Black)
20Front Cover Assembly (Includes Items 15, 16 & 18) (Biscuit)
20Front Cover Assembly (Includes Items 15, 16 & 18) (White)
21WP2195051 Whirlpool Refrigerator Clip
22WP2304673 Whirlpool Refrigerator Bracket
23Sleeve, Delay Mechanism
242305571 Whirlpool Gasket Assembly
