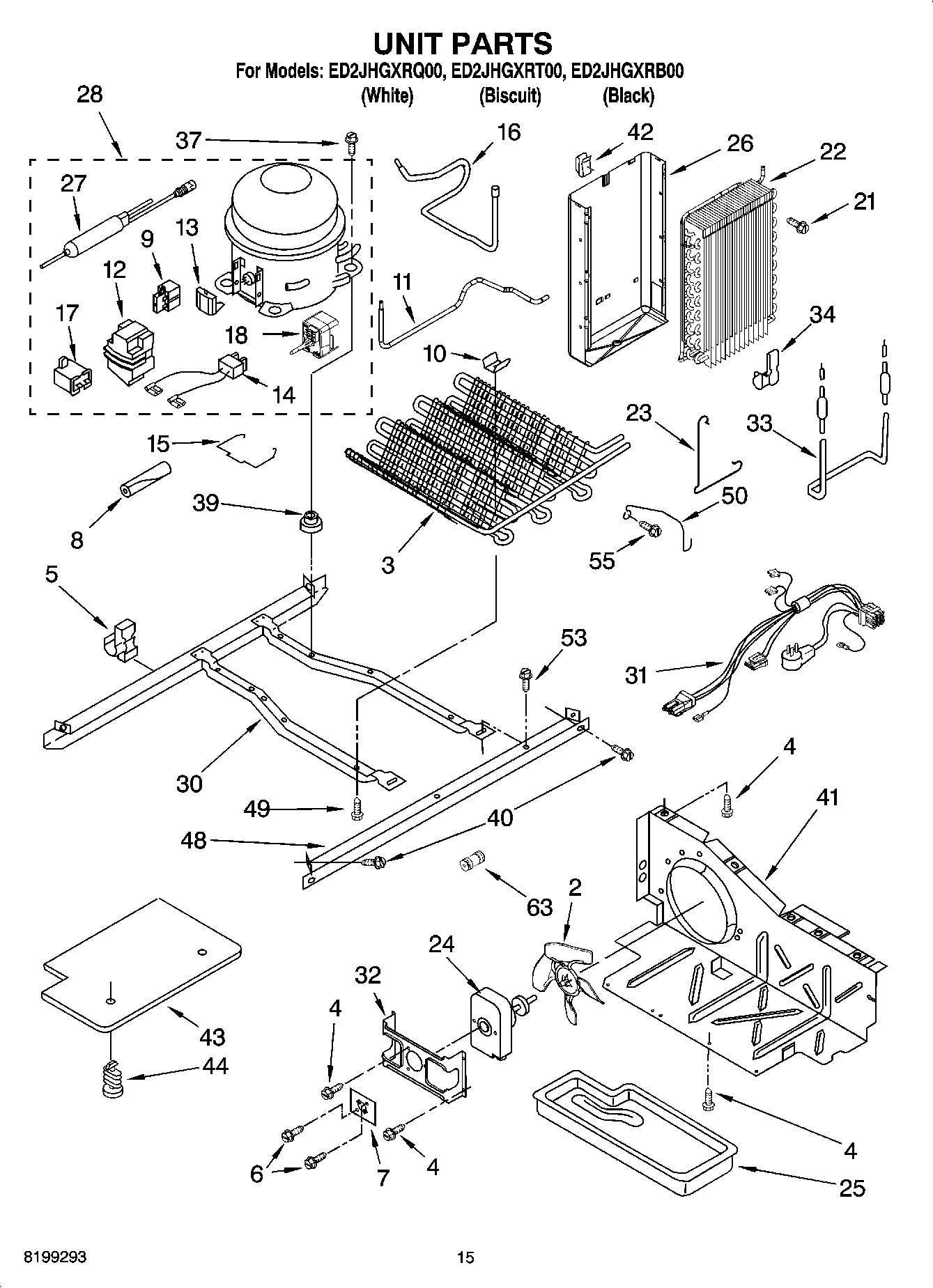

ED2JHGXRB00 09 – UNIT PARTSadmin2025-04-26T11:05:49+00:00ED2JHGXRB00 09 – UNIT PARTS ProductsPositionProduct2W11458267 Whirlpool Refrigerator Fan Blade32324712 Whirlpool Refrigerator Condenser4WP489464 Whirlpool Refrigerator Screw5Clip, Wire & Tube68281160 Whirlpool Screw7Insert, Bracket8SLEEVE9W10920279 Whirlpool Refrigerator Start Relay10W10683556 Whirlpool Refrigerator Clip112261599 Whirlpool Refrigerator Tube12WP2162358 Whirlpool Refrigerator Terminal Cover13WP2187145 Whirlpool Refrigerator Overload14WP2172890 Whirlpool Refrigerator Wire152255009 Whirlpool Retainer162220642 Whirlpool Refrigerator Tube17WP65889-4 Whirlpool Refrigerator Capacitor17WPW10662129 Whirlpool Refrigerator Run Capacitor18WP2188831 Whirlpool Refrigerator Start Device21WP489478 Whirlpool Refrigerator Screw22WP2188822 Whirlpool Refrigerator Evaporator23Clamp24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade25WPW10614158 Whirlpool Refrigerator Evaporator Tray26Heat Shield27W10843121 Whirlpool Refrigerator Tube28W10309990 Whirlpool Refrigerator Compressor302304903 Whirlpool Refrigerator Frame31WPW10309395 Whirlpool Refrigerator Wire Harness32WP2181929 Whirlpool Refrigerator Bracket33WP2323197 Whirlpool Refrigerator Heater34W11623163 Whirlpool Refrigerator Clip39876811 Whirlpool Grommet39WP4387558 Whirlpool Refrigerator Compressor Grommet40489340 Whirlpool Refrigerator Screw41W10896764 Whirlpool Refrigerator Air Baffle42Clip, Heat Shield43Unit Cover, Bottom44489396 Whirlpool Refrigerator Clip48Unit Mounting Rail49W11544659 Whirlpool Refrigerator Screw50Guard, Fan53WP489427 Whirlpool Refrigerator Screw55WPW10141625 Whirlpool Refrigerator Screw Assembly63FOLLOWING PARTS NOT ILLUSTRATED63and Optional Parts No63VALVE, ACCESS (5/8``)63978026 Whirlpool Refrigerator Primary Valve63978027 Whirlpool Refrigerator Primary Valve63978030 Whirlpool Refrigerator Valve63WP4373559 Whirlpool Fitting63WP978025 Whirlpool Refrigerator Valve63VALVE, ACCESS (1/2``)63876764 Whirlpool Refrigerator Primary Valve63WPL ARI31077A7
