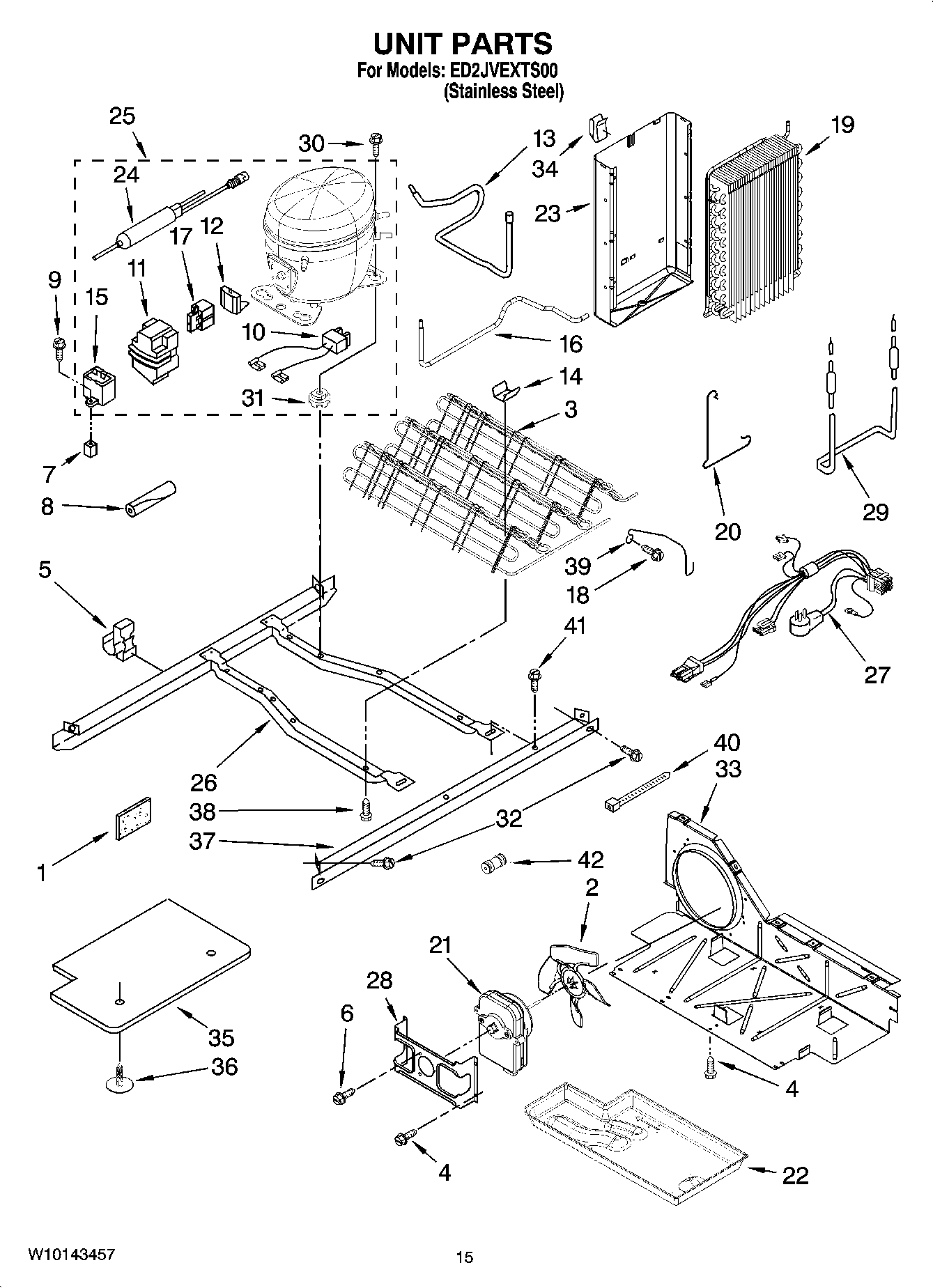

ED2JVEXTS00 09 – UNIT PARTS
Written by
in
ED2JVEXTS00 09 – UNIT PARTS
Products
Position
Product
1
W11553819 Whirlpool Refrigerator Insulation
2
W11458267 Whirlpool Refrigerator Fan Blade
3
2324712 Whirlpool Refrigerator Condenser
4
WP489464 Whirlpool Refrigerator Screw
5
Clip, Wire & Tube
6
WP8533993 Whirlpool Refrigerator Screw
7
Screw Grommet
8
SLEEVE
9
W11693756 Whirlpool Screw Assembly
10
2325306 Whirlpool Jumper Wire
10
WP2172890 Whirlpool Refrigerator Wire
11
2217635 Whirlpool Term Cover
11
WP2162358 Whirlpool Refrigerator Terminal Cover
12
2162216 Whirlpool Refrigerator Overload
12
WP2187145 Whirlpool Refrigerator Overload
13
2220642 Whirlpool Refrigerator Tube
14
W10683556 Whirlpool Refrigerator Clip
15
WP65889-4 Whirlpool Refrigerator Capacitor
15
WPW10662129 Whirlpool Refrigerator Run Capacitor
16
2261599 Whirlpool Refrigerator Tube
17
WP10097204 Whirlpool Start Relay
17
W10920279 Whirlpool Refrigerator Start Relay
18
WP489478 Whirlpool Refrigerator Screw
19
WP2188822 Whirlpool Refrigerator Evaporator
20
Clamp
21
WP2188874 Whirlpool Refrigerator Condenser Motor
22
WPW10614158 Whirlpool Refrigerator Evaporator Tray
23
2217195 Whirlpool Refrigerator Shield
24
WPW10143759 Whirlpool Dryer Filter
24
W10843121 Whirlpool Refrigerator Tube
25
W10309990 Whirlpool Refrigerator Compressor
26
2304903 Whirlpool Refrigerator Frame
27
Unit, Harness (Includes Power Cord)
28
WP2181929 Whirlpool Refrigerator Bracket
29
WP2323197 Whirlpool Refrigerator Heater
31
876811 Whirlpool Grommet
31
WP4387558 Whirlpool Refrigerator Compressor Grommet
32
489340 Whirlpool Refrigerator Screw
33
W10896764 Whirlpool Refrigerator Air Baffle
34
Clip, Heat Shield
35
W11115203 Whirlpool Control Panel
36
489396 Whirlpool Refrigerator Clip
37
Unit Mounting Rail
38
W11544659 Whirlpool Refrigerator Screw
39
Guard, Fan
40
WPW10339879 Whirlpool Wire Tie
41
WP489427 Whirlpool Refrigerator Screw
42
Following Parts Not Illust
42
VALVE, ACCESS (5/8“)
42
978026 Whirlpool Refrigerator Primary Valve
42
978027 Whirlpool Refrigerator Primary Valve
42
978030 Whirlpool Refrigerator Valve
42
WP978025 Whirlpool Refrigerator Valve
42
VALVE, ACCESS (1/2“)
42
WP4373559 Whirlpool Fitting
42
876764 Whirlpool Refrigerator Primary Valve
42
WPL ARI31210A9
←
