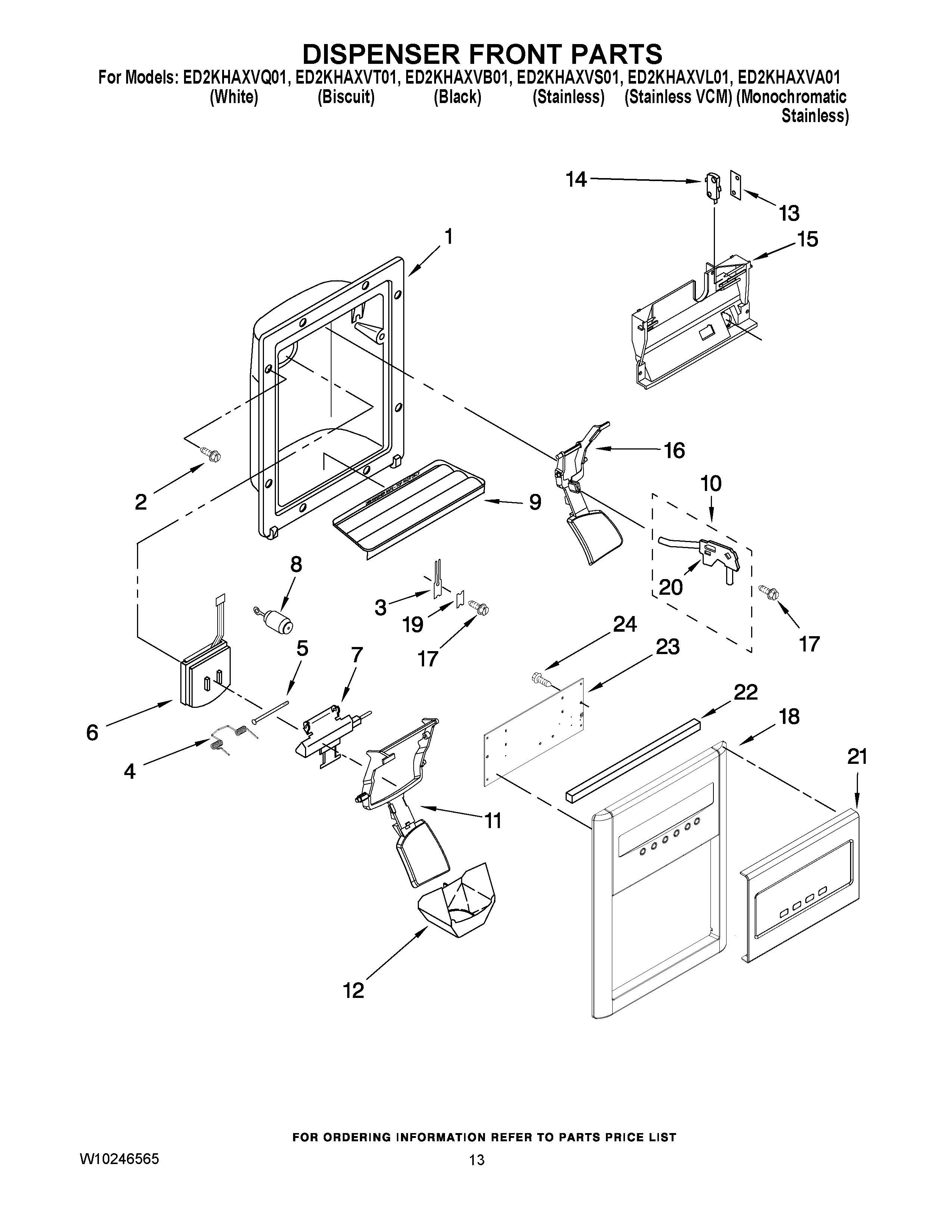

ED2KHAXVA01 08 – DISPENSER FRONT PARTS

ED2KHAXVA01 08 – DISPENSER FRONT PARTS

Written by

in

ED2KHAXVA01 08 – DISPENSER FRONT PARTS

Products

PositionProduct
2WP3196557 Whirlpool Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9WP2206671W Whirlpool Refrigerator Grille
9Grille, Overflow (Biscuit)
9WP2206671B Whirlpool Refrigerator Grille
9W10171992 Whirlpool Refrigerator Grille
108201537 Whirlpool Water Tubing Assembly
11WPW10152854 Whirlpool Refrigerator Dispenser Arm
11WPW10152853 Whirlpool Refrigerator Dispenser Arm
11W10152855 Whirlpool Refrigerator Dispenser Arm
11W10155161 Whirlpool Refrigerator Dispenser Arm
12WP2180224 Whirlpool Dispenser Funnel Guide
13Spacer, Switch (2)
14WP2162361 Whirlpool Switch
15Bracket, Control
16WPW10152859 Whirlpool Refrigerator Dispenser Arm
16W10152860 Whirlpool Refrigerator Dispenser Arm
16WPW10152858 Whirlpool Refrigerator Dispenser Arm
16Endcap (Nickel Alloy)
17WP3400906 Whirlpool Refrigerator Screw
18FRONT COVER ASSEMBLY (STANILESS)
18Front Cover Assembly (Includes Items 17, 18, 19, & 20) (White)
18Front Cover Assembly (Includes Items 17, 18, 19, & 20) (Biscuit)
18Front Cover Assembly (Includes Items 17, 18, 19, & 20) (Black)
18Front Cover Assembly (Includes Items 17, 18, 19, & 20) (Nickel)
19WP2195051 Whirlpool Refrigerator Clip
20WP2304673 Whirlpool Refrigerator Bracket
21CABINET (NOT A SERVICEABLE PART)
222305571 Whirlpool Gasket Assembly
23Control, Elec
242006254 Whirlpool Refrigerator Screw
