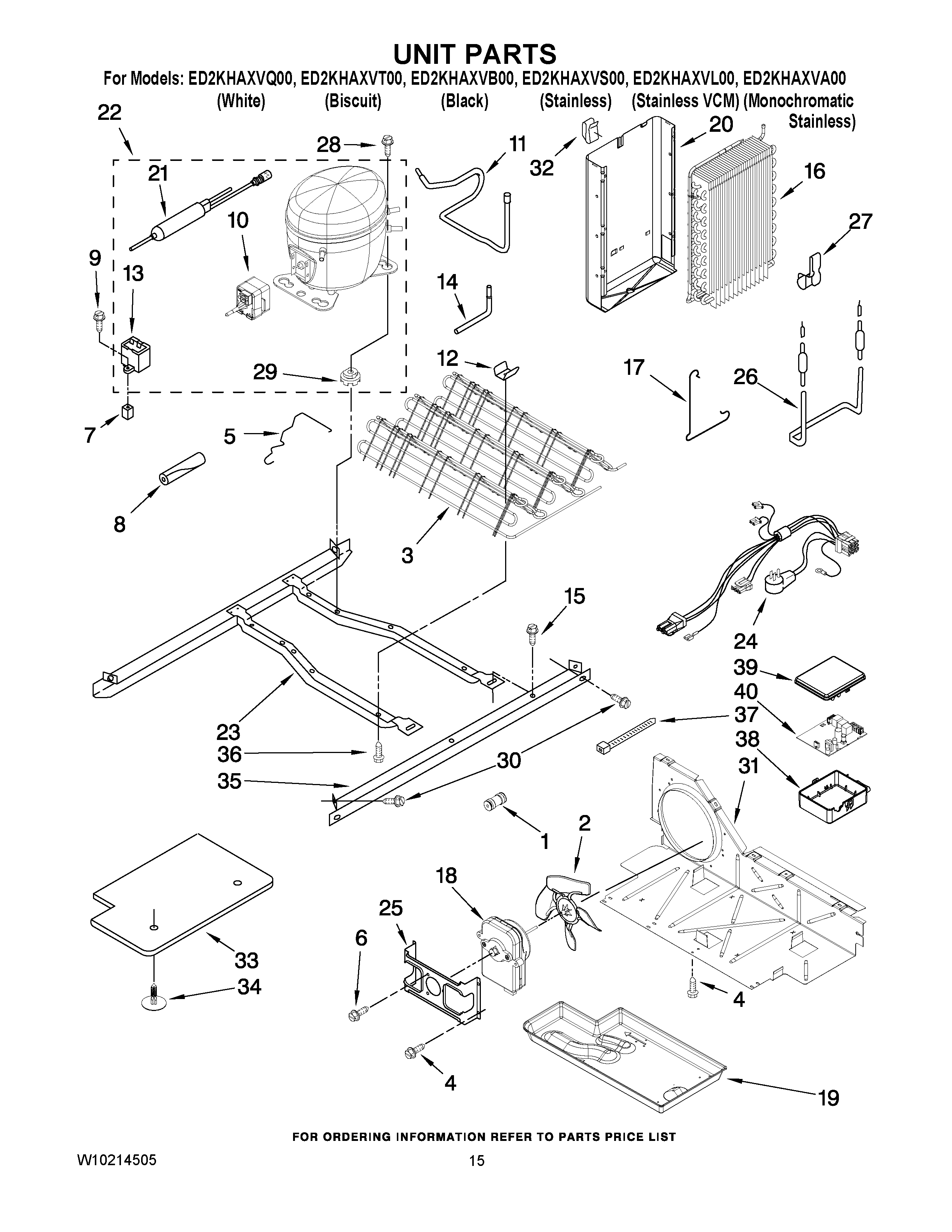

ED2KHAXVB00 09 – UNIT PARTS

Products

Position	Product
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
1	WPW10334458 Whirlpool Refrigerator Connector
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Retaining
6	WP8533993 Whirlpool Refrigerator Screw
7	Screw Grommet
8	SLEEVE
9	W11693756 Whirlpool Screw Assembly
10	WPW10197428 Whirlpool Start Device
10	WPW10197426 Whirlpool Refrigerator Start Device
11	2205764 Whirlpool Refrigerator Tube
12	W10683556 Whirlpool Refrigerator Clip
13	WPW10662129 Whirlpool Refrigerator Run Capacitor
14	W10858105 Whirlpool Refrigerator Tube
15	WP489427 Whirlpool Refrigerator Screw
16	WP2188822 Whirlpool Refrigerator Evaporator
19	WPW10614158 Whirlpool Refrigerator Evaporator Tray
20	2217195 Whirlpool Refrigerator Shield
21	WPW10143759 Whirlpool Dryer Filter
21	W10843121 Whirlpool Refrigerator Tube
22	W10309988 Whirlpool Refrigerator Compressor
23	2304903 Whirlpool Refrigerator Frame
24	2310425 Whirlpool Refrigerator Wire Harness
25	WP2188874 Whirlpool Refrigerator Condenser Motor
26	WP2323197 Whirlpool Refrigerator Heater
27	Clamp
29	876811 Whirlpool Grommet
30	489340 Whirlpool Refrigerator Screw
31	W10896764 Whirlpool Refrigerator Air Baffle
32	Clip, Heat Shield
33	W11115203 Whirlpool Control Panel
34	489396 Whirlpool Refrigerator Clip
35	Unit Mounting Rail
36	W11544659 Whirlpool Refrigerator Screw
37	WPW10339879 Whirlpool Wire Tie
38	2326982 Whirlpool Refrigerator Control Box
39	Box Cover
40	Elec. Control
