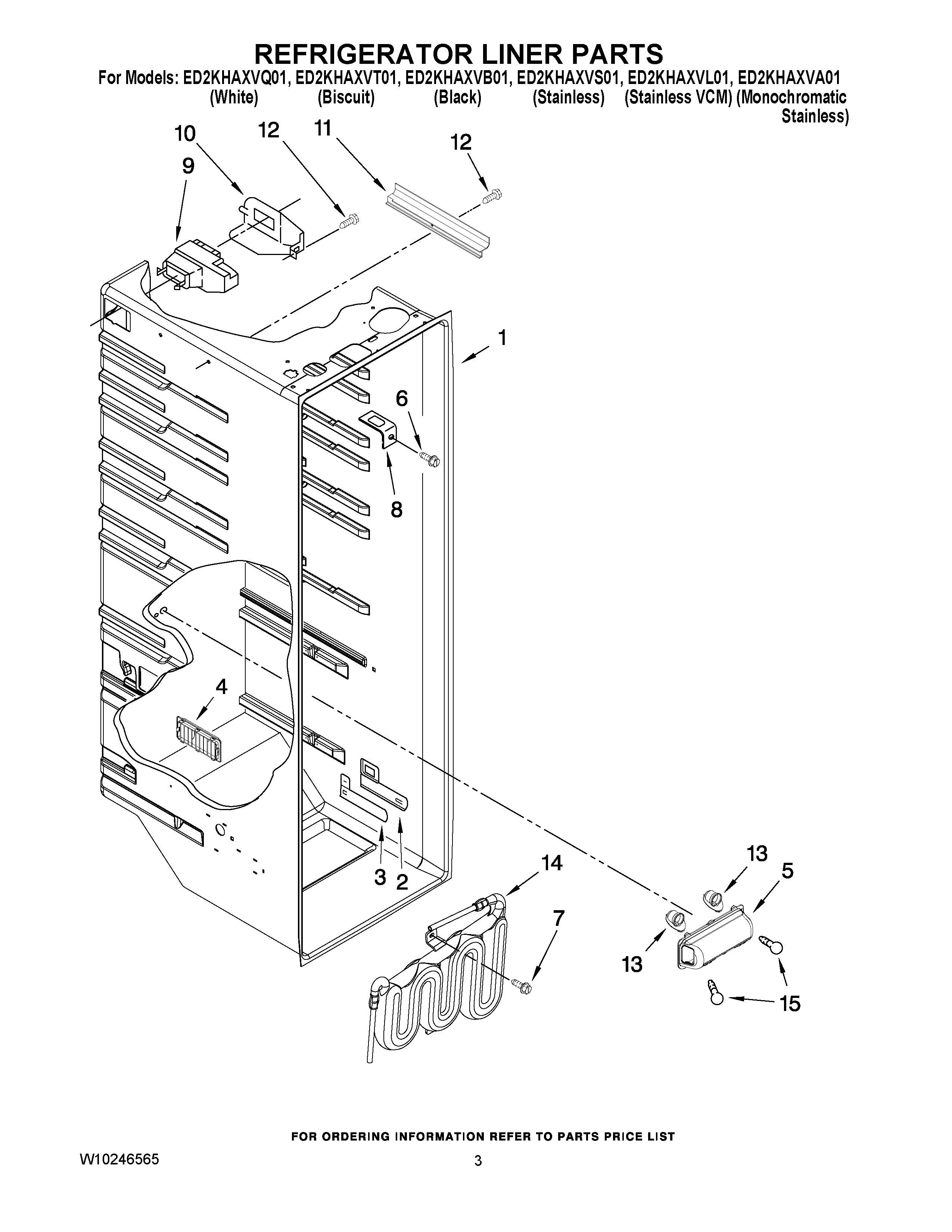

ED2KHAXVB01 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	W10175967 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	Louver
5	W11239891 Whirlpool Refrigerator Light Lens
6	WP488488 Whirlpool Refrigerator Screw
7	Screw (2)
8	WP2256085 Whirlpool Refrigerator Retainer
9	WPW10151375 Whirlpool Refrigerator Diffuser
10	2152019 Whirlpool Refrigerator Cover
11	2150331 Whirlpool Refrigerator Wire Cover
12	W10759522 Whirlpool Screw
13	4387478 Whirlpool Refrigerator Light Socket
14	RESERVOIR
15	RANGE ONLY 40W 120V APPL BULB
