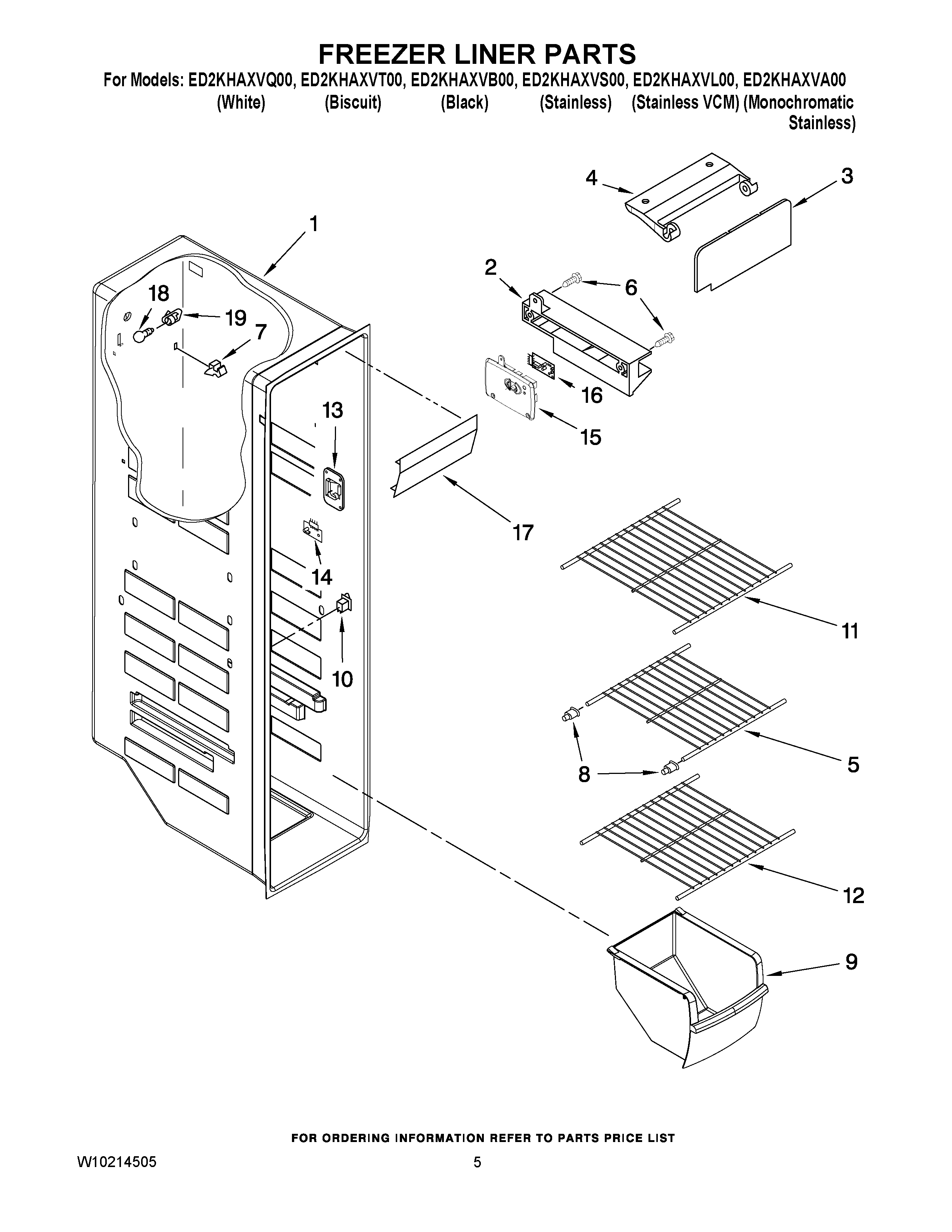

ED2KHAXVQ00 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	Slide, Ice Maker
3	W10180062 Whirlpool Refrigerator Ice Door
4	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
5	WPW10318953 Whirlpool Wire Shelf
6	WP489478 Whirlpool Refrigerator Screw
7	2215823 Whirlpool Refrigerator Clip
8	2163762 Whirlpool Refrigerator Cup Assembly
9	WP2309758 Whirlpool Refrigerator Freezer Bin
10	W11457217 Whirlpool Refrigerator Rocker Switch Combination
11	WPW10318952 Whirlpool Wire Shelf
12	WPW10318960 Whirlpool Wire Shelf
13	WP2198587 Whirlpool Refrigerator Cover
14	W10757851-includeCORE Whirlpool Electronic Control+Core
15	Cover, Receiver
17	2212376 Whirlpool Light Lens
18	W11679940 Whirlpool Refrigerator Light Bulb Assembly
19	4387478 Whirlpool Refrigerator Light Socket
