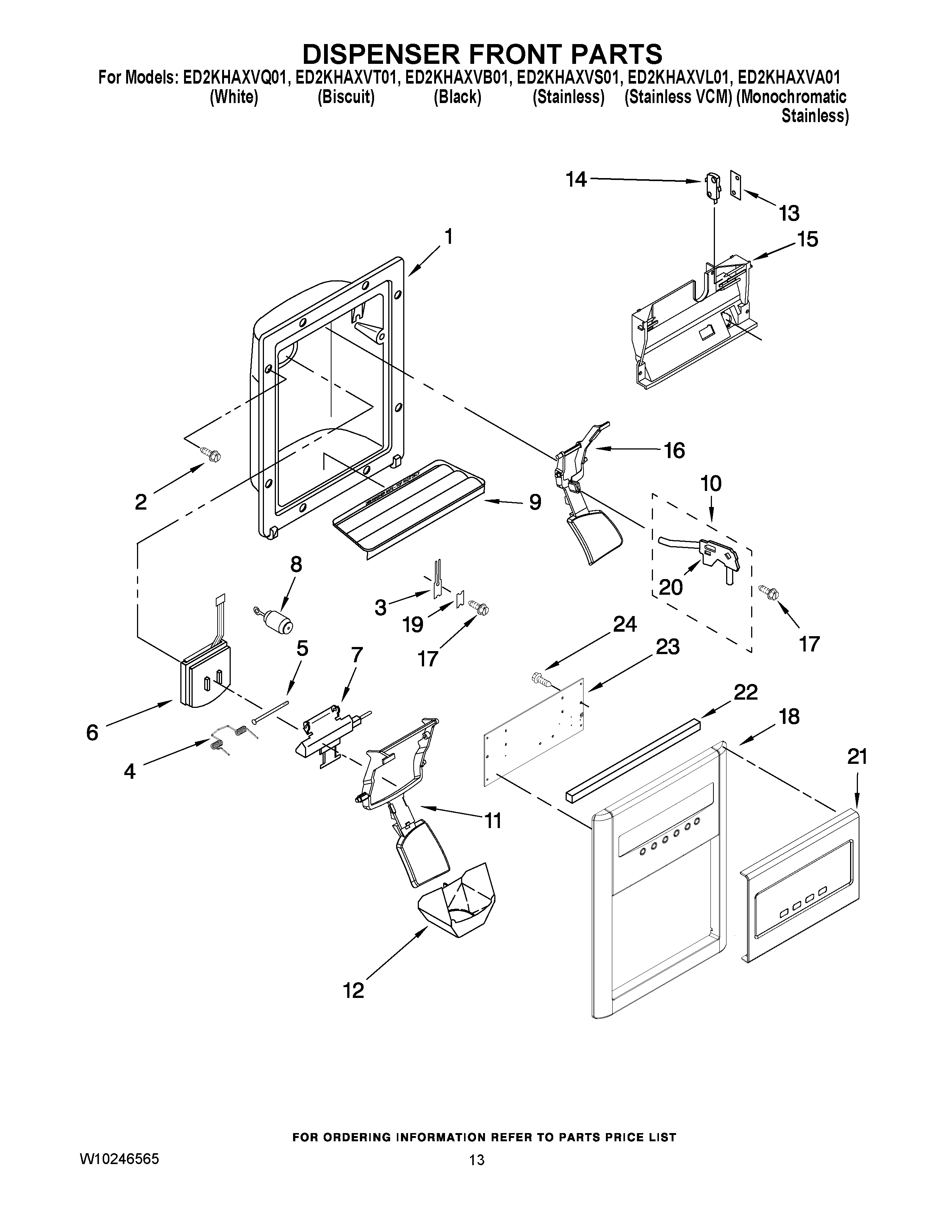

ED2KHAXVS01 08 – DISPENSER FRONT PARTS

Products

Position	Product
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	WP2206671W Whirlpool Refrigerator Grille
9	Grille, Overflow (Biscuit)
9	WP2206671B Whirlpool Refrigerator Grille
9	W10171992 Whirlpool Refrigerator Grille
10	8201537 Whirlpool Water Tubing Assembly
11	WPW10152854 Whirlpool Refrigerator Dispenser Arm
11	WPW10152853 Whirlpool Refrigerator Dispenser Arm
11	W10152855 Whirlpool Refrigerator Dispenser Arm
11	W10155161 Whirlpool Refrigerator Dispenser Arm
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	Spacer, Switch (2)
14	WP2162361 Whirlpool Switch
15	Bracket, Control
16	WPW10152859 Whirlpool Refrigerator Dispenser Arm
16	W10152860 Whirlpool Refrigerator Dispenser Arm
16	WPW10152858 Whirlpool Refrigerator Dispenser Arm
16	Endcap (Nickel Alloy)
17	WP3400906 Whirlpool Refrigerator Screw
18	FRONT COVER ASSEMBLY (STANILESS)
18	Front Cover Assembly (Includes Items 17, 18, 19, & 20) (White)
18	Front Cover Assembly (Includes Items 17, 18, 19, & 20) (Biscuit)
18	Front Cover Assembly (Includes Items 17, 18, 19, & 20) (Black)
18	Front Cover Assembly (Includes Items 17, 18, 19, & 20) (Nickel)
19	WP2195051 Whirlpool Refrigerator Clip
20	WP2304673 Whirlpool Refrigerator Bracket
21	CABINET (NOT A SERVICEABLE PART)
22	2305571 Whirlpool Gasket Assembly
23	Control, Elec
24	2006254 Whirlpool Refrigerator Screw
