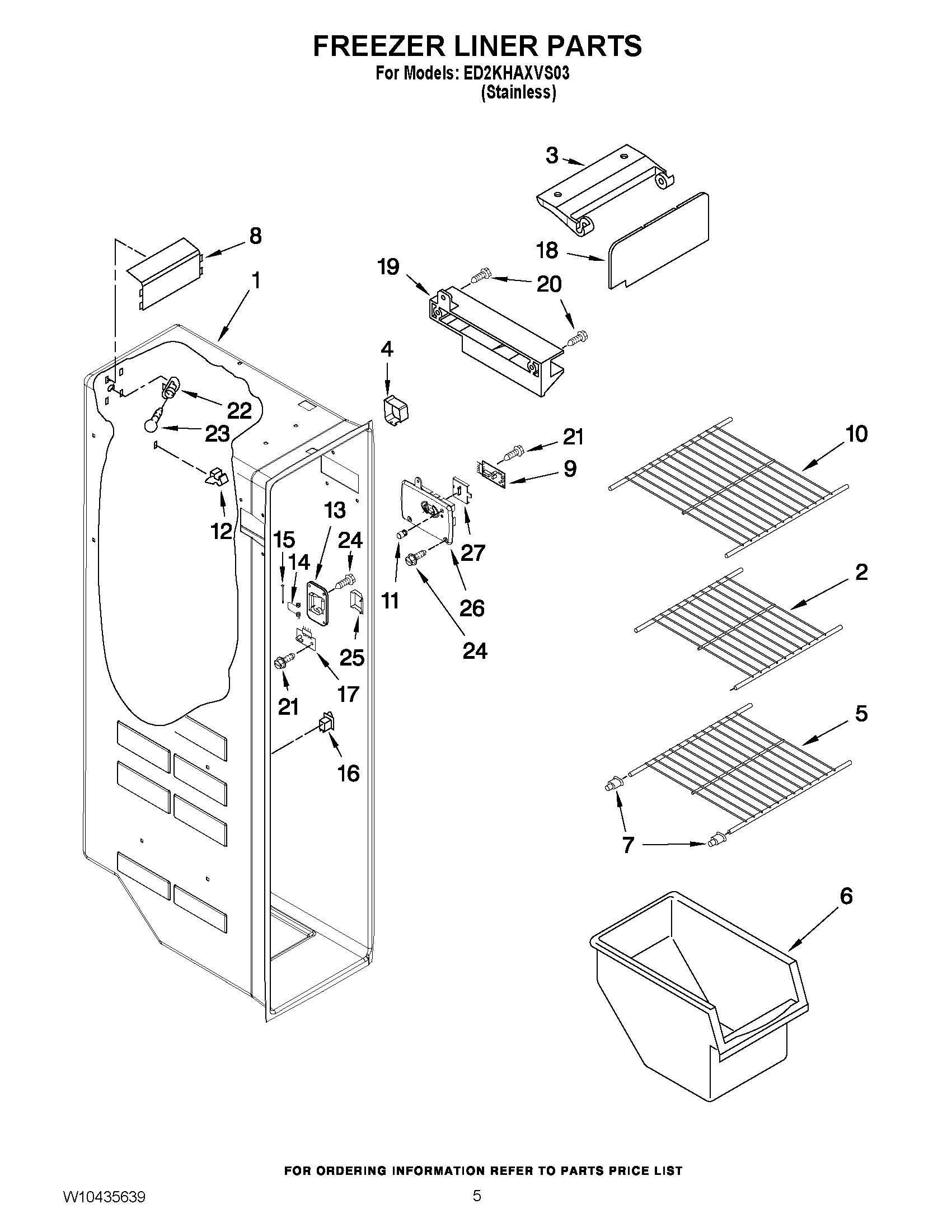

ED2KHAXVS03 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WPW10318953 Whirlpool Wire Shelf
3	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
4	2303234 Whirlpool Refrigerator Shield
5	WPW10318960 Whirlpool Wire Shelf
6	WP2309758 Whirlpool Refrigerator Freezer Bin
7	WPW10130299 Whirlpool Refrigerator Cup
8	2212376 Whirlpool Light Lens
10	WPW10318952 Whirlpool Wire Shelf
11	WP2198643 Whirlpool Refrigerator Lens
12	2215823 Whirlpool Refrigerator Clip
13	WP2198587 Whirlpool Refrigerator Cover
14	WP2198635 Whirlpool Refrigerator Spring
15	WP2198634 Whirlpool Door Pin
16	W11457217 Whirlpool Refrigerator Rocker Switch Combination
17	W10757851-includeCORE Whirlpool Electronic Control+Core
18	W10180062 Whirlpool Refrigerator Ice Door
19	Slide, Ice Maker
20	WP489478 Whirlpool Refrigerator Screw
21	2006254 Whirlpool Refrigerator Screw
22	4387478 Whirlpool Refrigerator Light Socket
23	W11679940 Whirlpool Refrigerator Light Bulb Assembly
24	WPW10142283 Whirlpool Refrigerator Screw
25	WP2198633 Whirlpool Refrigerator Flipper
26	Cover, Receiver
27	2315398 Whirlpool Refrigerator Slide
