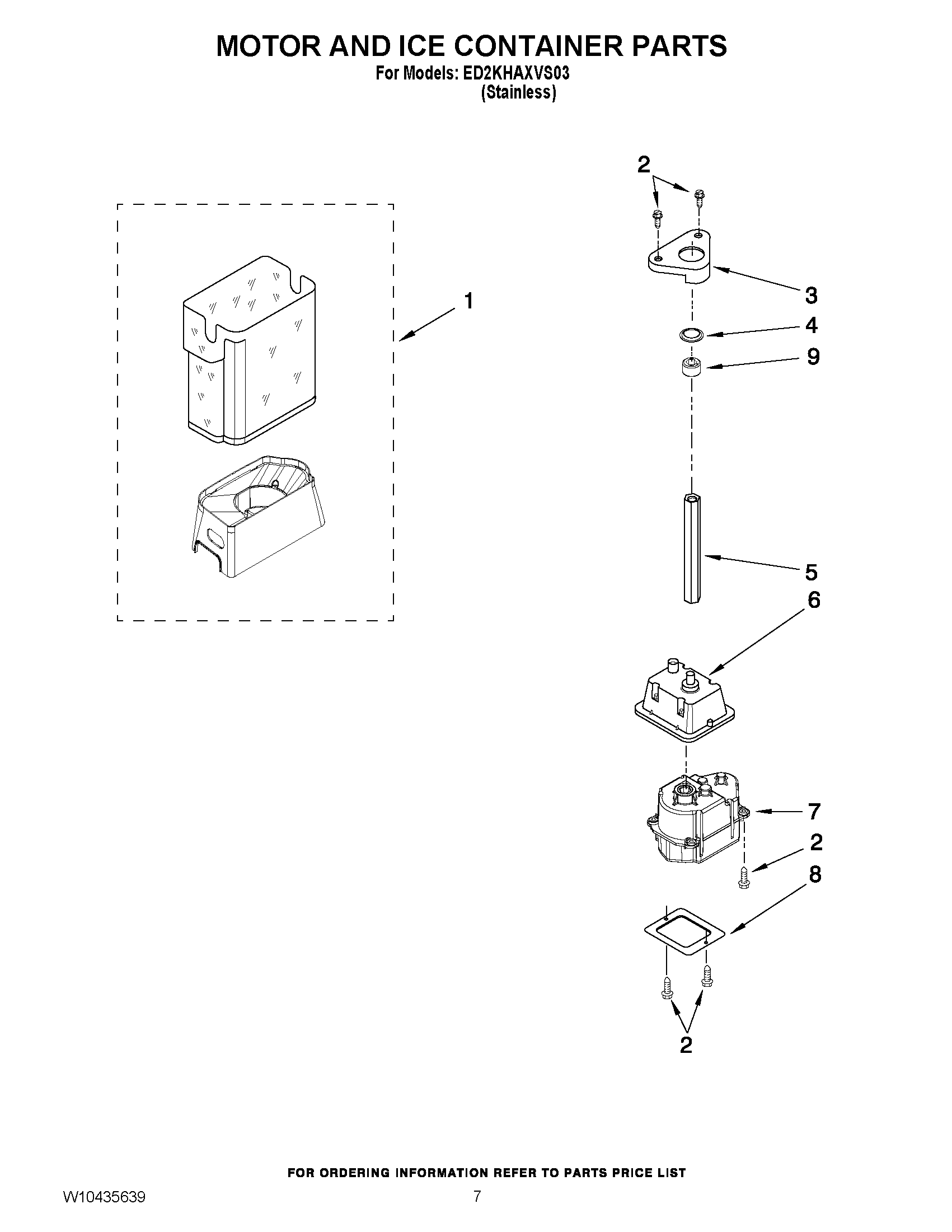

ED2KHAXVS03 05 – MOTOR AND ICE CONTAINER PARTS

Written by

Products

Position	Product
1	Crusher Bin
2	WP8281163 Whirlpool Refrigerator Screw
3	WP2188919 Whirlpool Refrigerator Holder
4	WP2198628 Whirlpool Door Seal
5	WP2188917 Whirlpool Drive Shaft
6	Enclosure, Motor
7	W10822606 Whirlpool Dishwasher Dispenser Motor
8	Cover
9	WP2315559 Whirlpool Motor Coupling
100	Ice Container (Complete)
