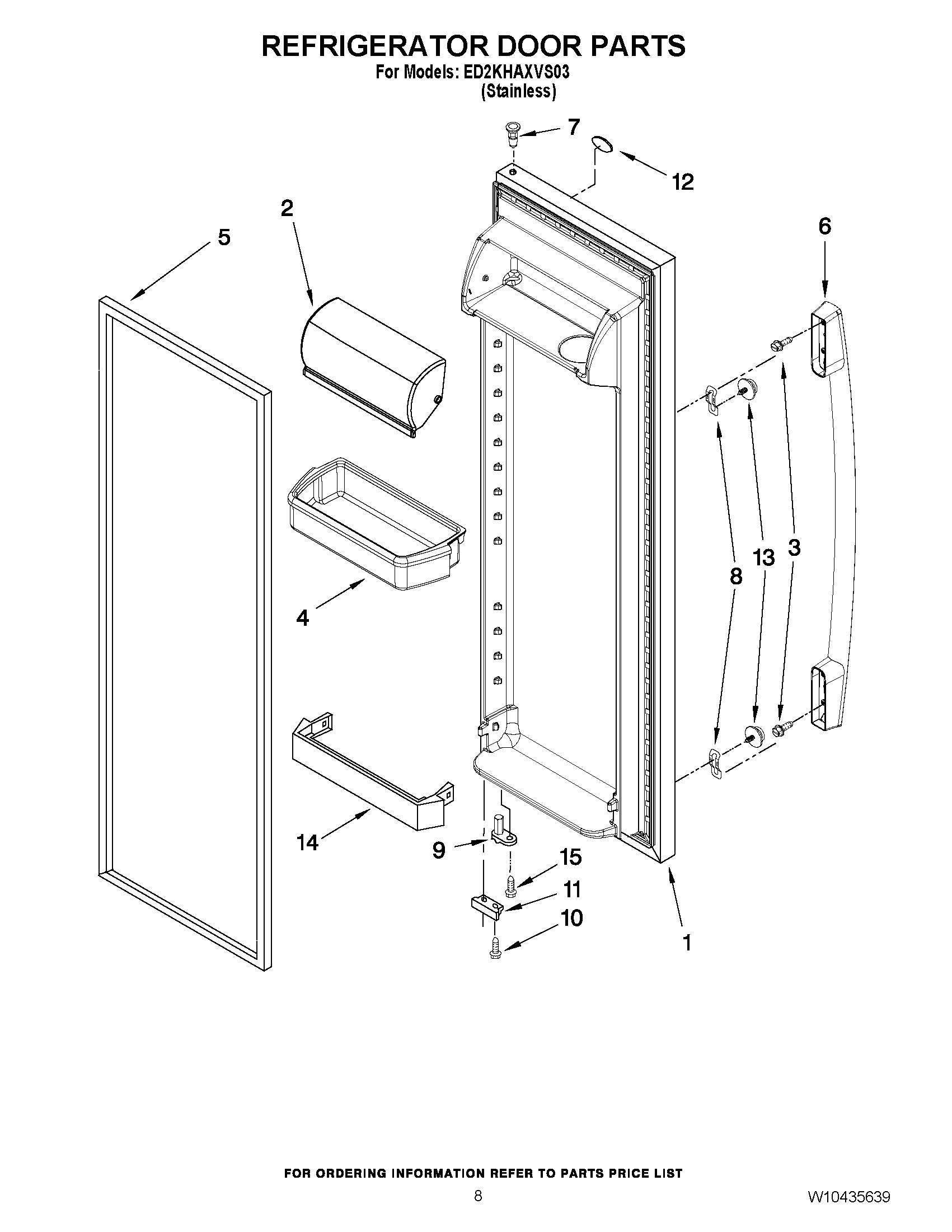

ED2KHAXVS03 06 – REFRIGERATOR DOOR PARTS

ED2KHAXVS03 06 – REFRIGERATOR DOOR PARTS

Written by

in

ED2KHAXVS03 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (STAINLESS STEEL)
2WP2256101 Whirlpool Dairy Door
3W10267047 Whirlpool Screw
4WPW10321304 Whirlpool Refrigerator Door Shelf Bin
52159081 Whirlpool Refrigerator Door Gasket
6WPW10257118K Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WP2255411 Whirlpool Refrigerator Clip
9WP2182179 Whirlpool Cam Closer
10WP489483 Whirlpool Screw
11BRACKET, DOOR STOP (BLACK)
12WP2213265 Whirlpool Refrigerator Nameplate
13WPW10288153 Whirlpool Refrigerator Screw
14WP2156022 Whirlpool Refrigerator Door Trim
15WP3400012 Whirlpool Refrigerator Screw
