ED2KHAXVS03 07 – FREEZER DOOR PARTS

ED2KHAXVS03 07 – FREEZER DOOR PARTS

Written by

in

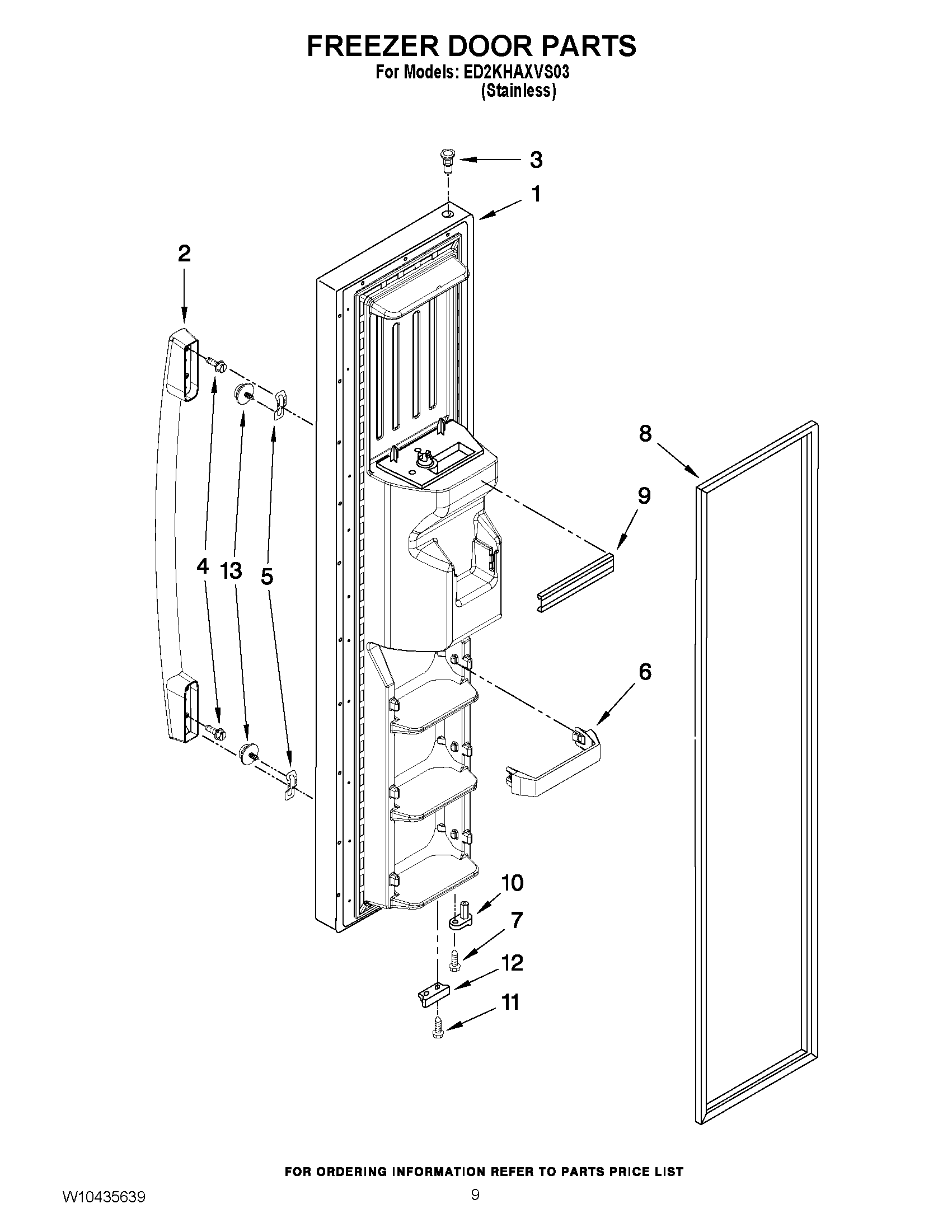

ED2KHAXVS03 07 – FREEZER DOOR PARTS

Products

PositionProduct
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
2WPW10257118K Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4W10267047 Whirlpool Screw
5WP2255411 Whirlpool Refrigerator Clip
6WP2309717 Whirlpool Refrigerator Door Trim
7WP3400012 Whirlpool Refrigerator Screw
82159080 Whirlpool Refrigerator Door Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12Bracket, Door Stop (Black)
13WPW10288153 Whirlpool Refrigerator Screw
