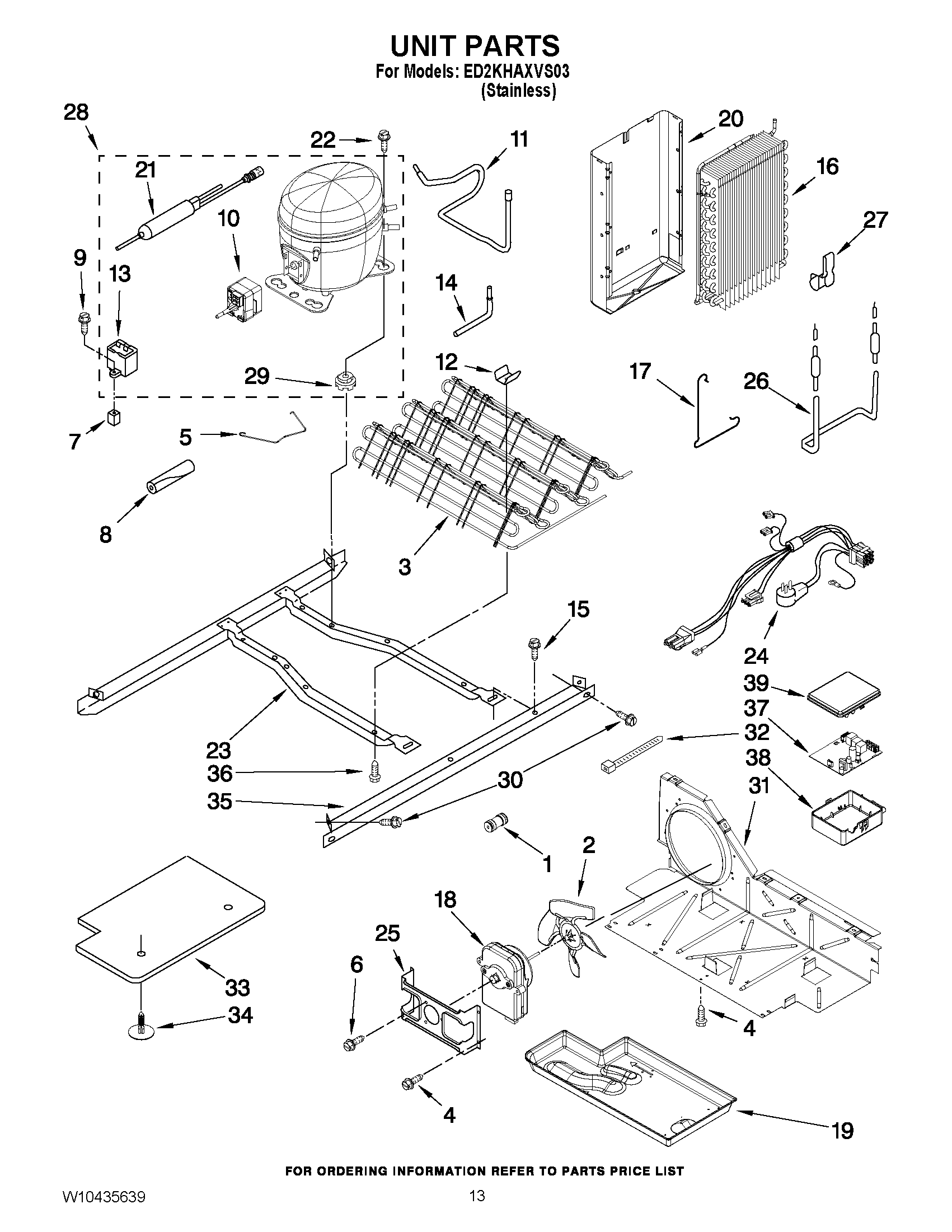

ED2KHAXVS03 09 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10334458 Whirlpool Refrigerator Connector
2	W10156818 Whirlpool Refrigerator Fan Blade
3	W10211163 Whirlpool Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	W11661170 Whirlpool Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	Screw Grommet
8	SLEEVE
9	W11693756 Whirlpool Screw Assembly
10	WPW10189190 Whirlpool Start Device
11	W10210787 Whirlpool Refrigerator Tube
12	W10683556 Whirlpool Refrigerator Clip
13	WPW10662129 Whirlpool Refrigerator Run Capacitor
14	W10274306 Whirlpool Refrigerator Tube
15	WP489427 Whirlpool Refrigerator Screw
16	WP2188822 Whirlpool Refrigerator Evaporator
18	WP2188874 Whirlpool Refrigerator Condenser Motor
19	WPW10614158 Whirlpool Refrigerator Evaporator Tray
20	WPW10194474 Whirlpool Refrigerator Shield
21	WPW10143759 Whirlpool Dryer Filter
22	SCREW
23	2304903 Whirlpool Refrigerator Frame
24	2310425 Whirlpool Refrigerator Wire Harness
25	WP2181929 Whirlpool Refrigerator Bracket
26	WP2323197 Whirlpool Refrigerator Heater
27	Clamp
28	W10233961 Whirlpool Refrigerator Compressor
29	W11661108 Whirlpool Grommet
29	876811 Whirlpool Grommet
30	489340 Whirlpool Refrigerator Screw
31	BAFFLE, AIR
32	WPW10339879 Whirlpool Wire Tie
33	W11115203 Whirlpool Control Panel
34	489396 Whirlpool Refrigerator Clip
35	W10207512 Whirlpool Rail Unit
36	W11544659 Whirlpool Refrigerator Screw
37	ELEC CONTROL
38	2326982 Whirlpool Refrigerator Control Box
39	Box Cover
