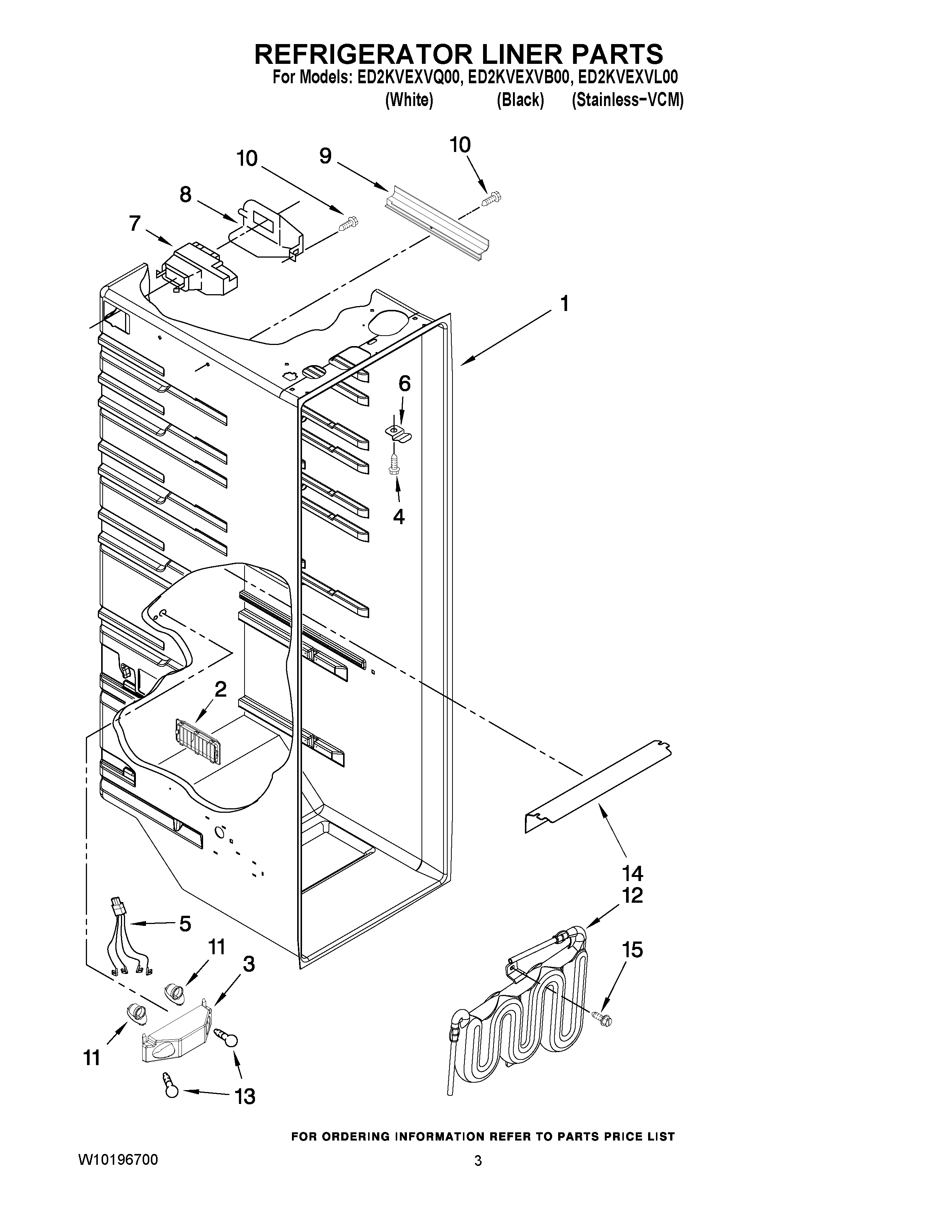

ED2KVEXVQ00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	Louver
3	Bracket, Dual Crisper Light
5	2311637 Whirlpool Refrigerator Wire Harness
6	2311612 Whirlpool Refrigerator Clip
7	WPW10151374 Whirlpool Refrigerator Diffuser
8	2152019 Whirlpool Refrigerator Cover
9	W10252495 Whirlpool Refrigerator Wire Cover
10	W10759522 Whirlpool Screw
11	4387478 Whirlpool Refrigerator Light Socket
12	RESERVOIR
13	RANGE ONLY 40W 120V APPL BULB
14	Light Lens
15	Screw (2)
