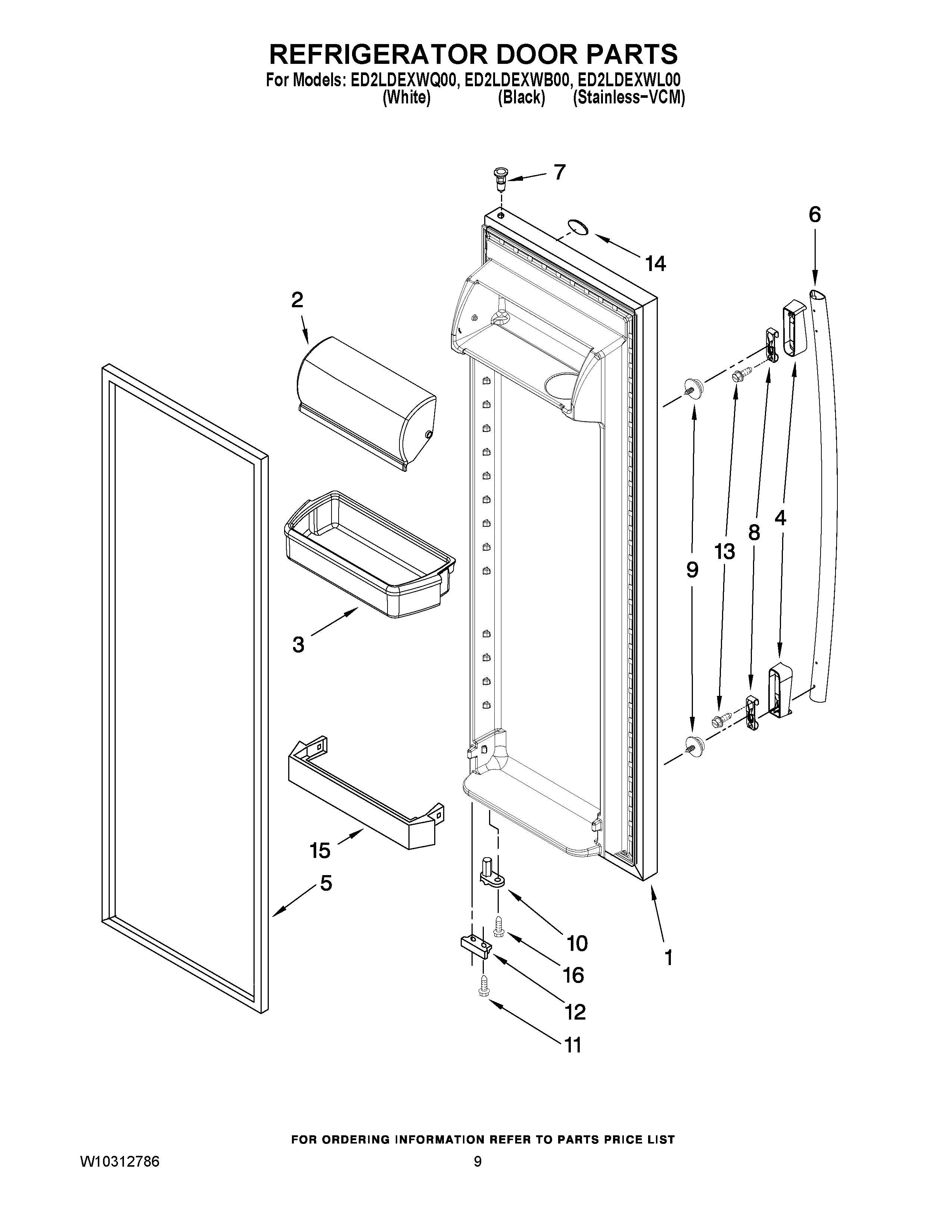

ED2LDEXWB00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1L2263189B Whirlpool Refrigerator Black Foam In Place Doorack
1Refrigerator Door (Includes Item 5) (Stainless VCM)
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (WHITE)
2WP2256101 Whirlpool Dairy Door
3WP2203828 Whirlpool Door Shelf Bin
4Endcap (Black)
4End Cap (Apollo Grey)
4W10127769 Whirlpool Refrigerator Handle End Cap
52159081 Whirlpool Refrigerator Door Gasket
52159073 Whirlpool Refrigerator Door Gasket
6WPW10127761K Whirlpool Refrigerator Handle
6WPW10127762 Whirlpool Refrigerator Handle
6HANDLE (STAINLESS/SATINA)
7WP2182181 Whirlpool Refrigerator Thimble
8WP2255411 Whirlpool Refrigerator Clip
9WPW10288153 Whirlpool Refrigerator Screw
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12Bracket, Door Stop (Black)
12Bracket, Door Stop (White)
13WP8533988 Whirlpool Screw Fastener
14WP2213265 Whirlpool Refrigerator Nameplate
15WP2309941 Whirlpool Refrigerator Door Bar Trim
16WP3400012 Whirlpool Refrigerator Screw
