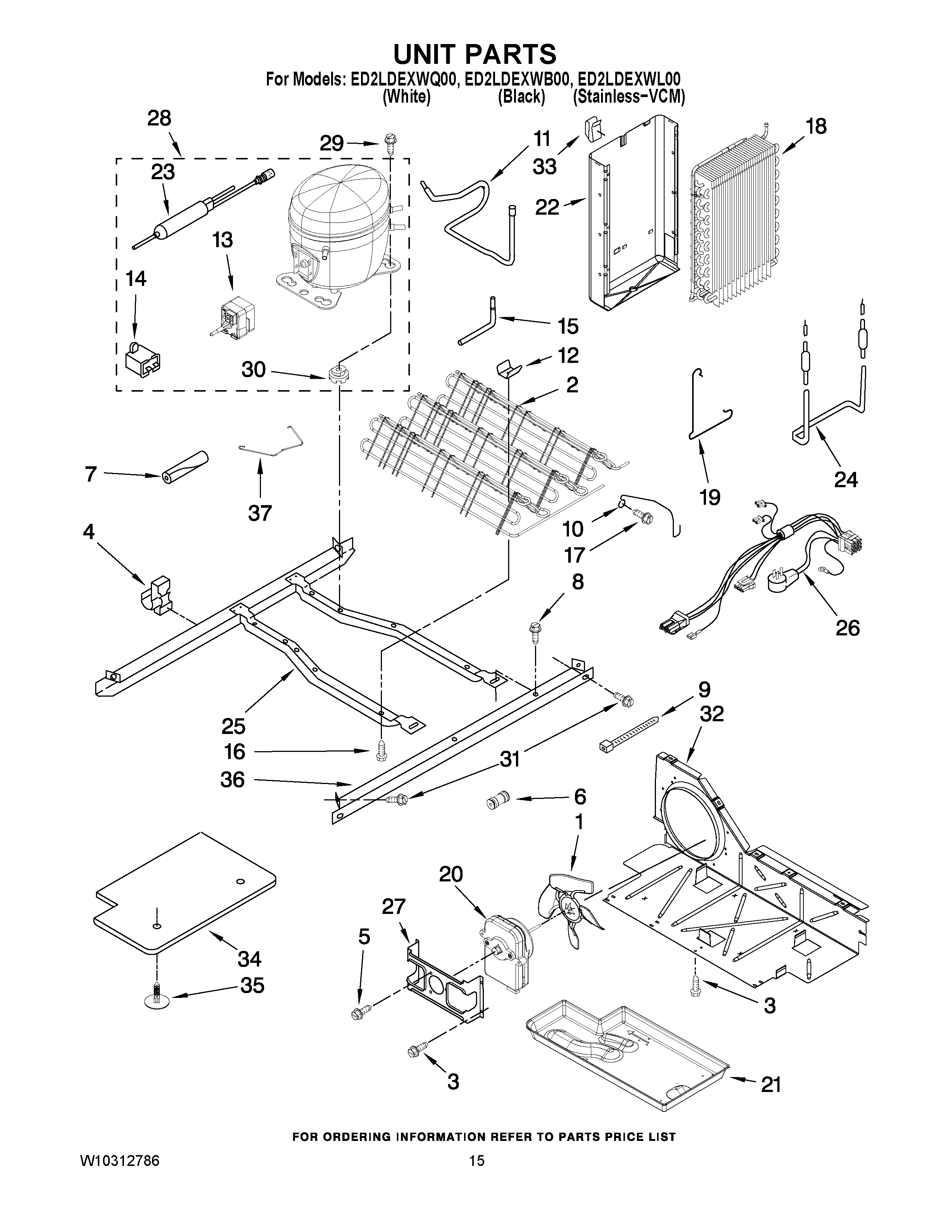

ED2LDEXWL00 09 – UNIT PARTS

Products

Position	Product
NI	978026 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
1	W10156818 Whirlpool Refrigerator Fan Blade
2	2324712 Whirlpool Refrigerator Condenser
4	Clip, Wire & Tube
5	WP8533993 Whirlpool Refrigerator Screw
6	WP4373559 Whirlpool Fitting
7	SLEEVE
8	WP489427 Whirlpool Refrigerator Screw
9	WPW10339879 Whirlpool Wire Tie
10	Guard, Fan
11	2220642 Whirlpool Refrigerator Tube
12	W10683556 Whirlpool Refrigerator Clip
13	WP2188831 Whirlpool Refrigerator Start Device
14	WP65889-4 Whirlpool Refrigerator Capacitor
15	W10858105 Whirlpool Refrigerator Tube
16	W11544659 Whirlpool Refrigerator Screw
17	WP489478 Whirlpool Refrigerator Screw
18	WP2188822 Whirlpool Refrigerator Evaporator
19	Clamp
20	WP2188874 Whirlpool Refrigerator Condenser Motor
21	WPW10614158 Whirlpool Refrigerator Evaporator Tray
22	WPW10194474 Whirlpool Refrigerator Shield
23	WPW10143759 Whirlpool Dryer Filter
24	WP2323197 Whirlpool Refrigerator Heater
25	2304903 Whirlpool Refrigerator Frame
26	WPW10309395 Whirlpool Refrigerator Wire Harness
27	WP2181929 Whirlpool Refrigerator Bracket
28	W10355489 Whirlpool Refrigerator Compressor
30	876811 Whirlpool Grommet
30	W11661108 Whirlpool Grommet
31	489340 Whirlpool Refrigerator Screw
32	Air Baffle
33	Clip, Heat Shield
34	W11115203 Whirlpool Control Panel
35	489396 Whirlpool Refrigerator Clip
36	WPW10196323 Whirlpool Refrigerator Rail Assembly
37	2212996 Whirlpool Refrigerator Retainer
