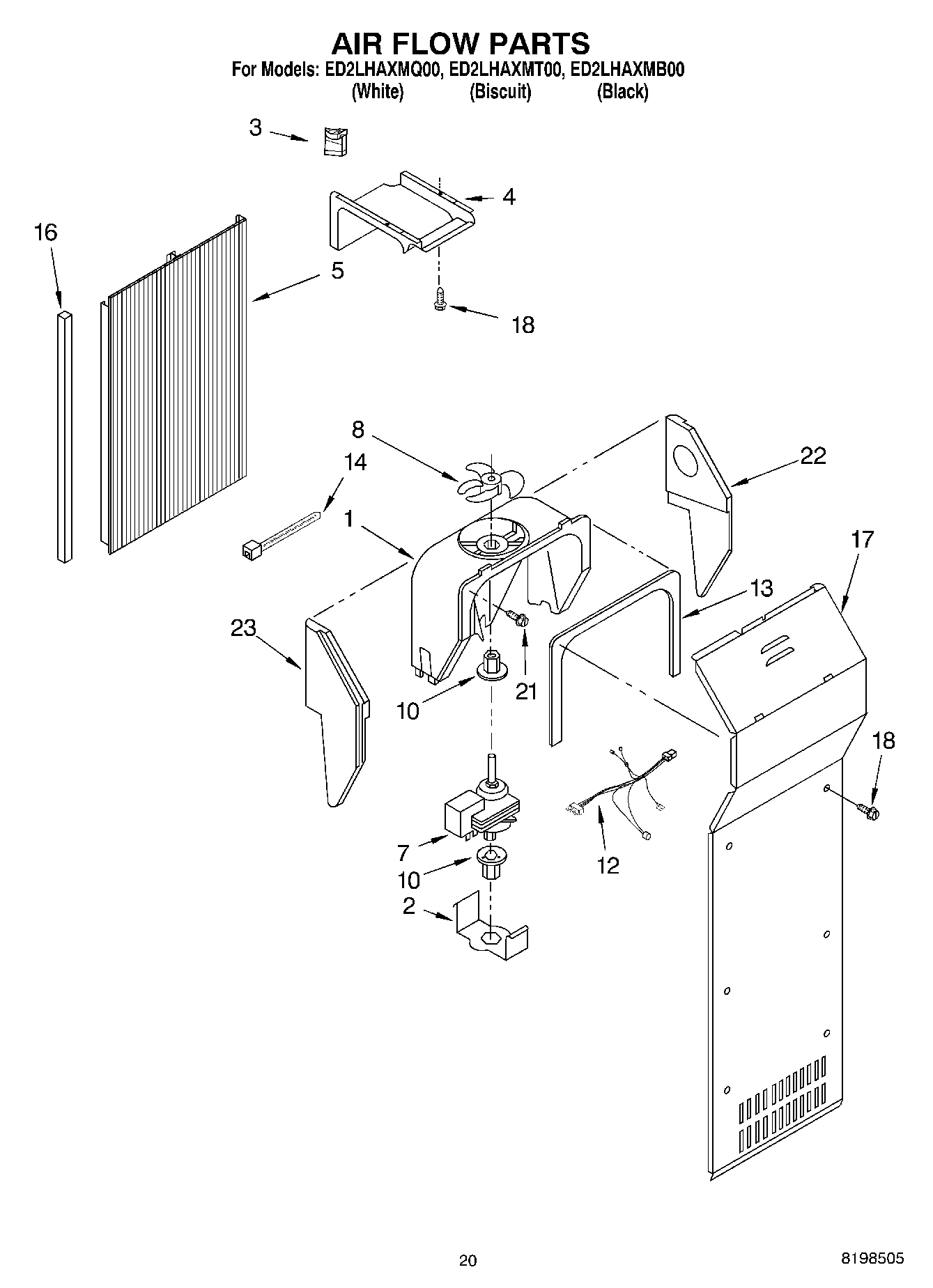

ED2LHAXMQ00 12 – AIR FLOW PARTS, PARTS NOT ILLUSTRATED

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WP505587 Whirlpool Refrigerator Sealer
	Enamel, Black (1 Qt. Uncut)
	WP542638 Whirlpool Refrigerator Grease
	Torx Key
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	WPL ARI31303A2
	WPL 799833
	WPL 876029
	WPL ARI31302A6
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	Ice Container Assembly
	WP503695 Whirlpool Refrigerator Sealer
	876370 Whirlpool Refrigerator Insulation
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	511873 Whirlpool Refrigerator Paint
	WPL ARI31305A2
	212643 Whirlpool Refrigerator Permagum Sealer
	833938 Whirlpool Refrigerator Terminal
	606755 Whirlpool Refrigerator Bag
	WPL ARI31304A4
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	WPL ARI31306A8
1	W11254898 Whirlpool Refrigerator Scroll Fan
2	WP2155590 Whirlpool Refrigerator Retainer
3	Air Scoop
4	Air Duct, Upper
5	Air Duct Freezer
5	Foam, Shield
7	4389144 Whirlpool Refrigerator Evaporator Fan Motor
8	WP2169142 Whirlpool Fan Blade
10	WP2176759 Whirlpool Refrigerator Grommet
12	W11234406 Whirlpool Refrigerator Wire Harness
13	WP2155789 Whirlpool Refrigerator Gasket
14	WPW10339879 Whirlpool Wire Tie
16	4388500 Whirlpool Refrigerator Gasket
17	Cover, Evaporator (Includes 9)
18	SCREW
21	WP489478 Whirlpool Refrigerator Screw
22	4388358 Whirlpool Refrigerator Support Bracket
