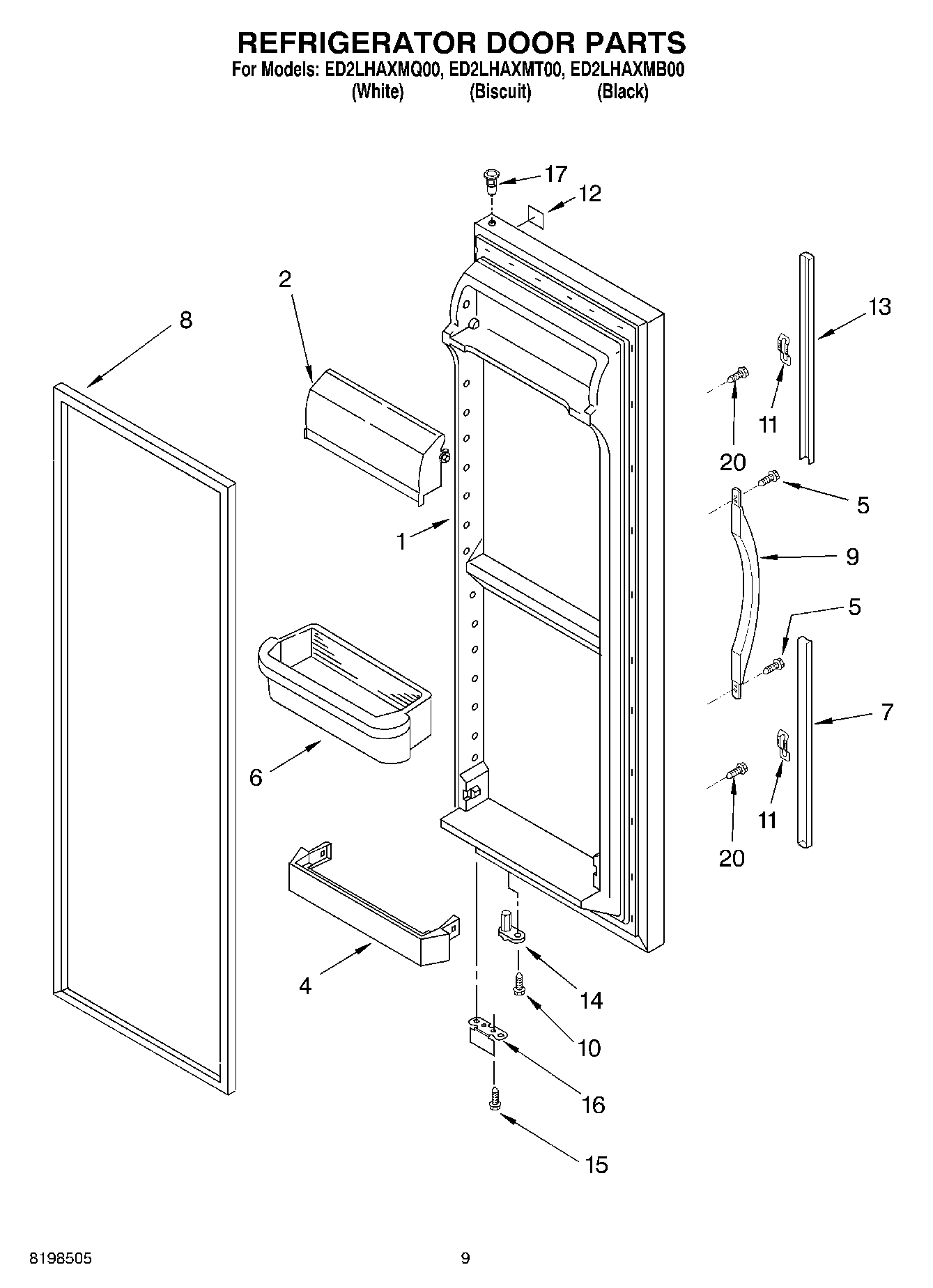

ED2LHAXMT00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Black)
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Biscuit)
2	WP2256101 Whirlpool Dairy Door
4	WP2156022 Whirlpool Refrigerator Door Trim
5	WP489491 Whirlpool Refrigerator Screw
6	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7	Extension, Bottom (Biscuit)
7	Extension, Bottom (White)
7	WP2194969B Whirlpool Refrigerator Handle Trim
8	2159081 Whirlpool Refrigerator Door Gasket
8	2159073 Whirlpool Refrigerator Door Gasket
9	Handle, Center (Biscuit)
9	Handle, Center (White)
9	WP2186649B Whirlpool Refrigerator Handle
10	WP3400012 Whirlpool Refrigerator Screw
11	WP2195327 Whirlpool Refrigerator Clip
12	WP2213265 Whirlpool Refrigerator Nameplate
13	Extension, Top (White)
13	Extension, Top (Biscuit)
13	WP2194971B Whirlpool Refrigerator Handle Trim
14	WP2182179 Whirlpool Cam Closer
15	WP489483 Whirlpool Screw
16	WP2206629B Whirlpool Refrigerator Bracket
17	WP2182181 Whirlpool Refrigerator Thimble
20	WP3400852 Whirlpool Refrigerator Screw
