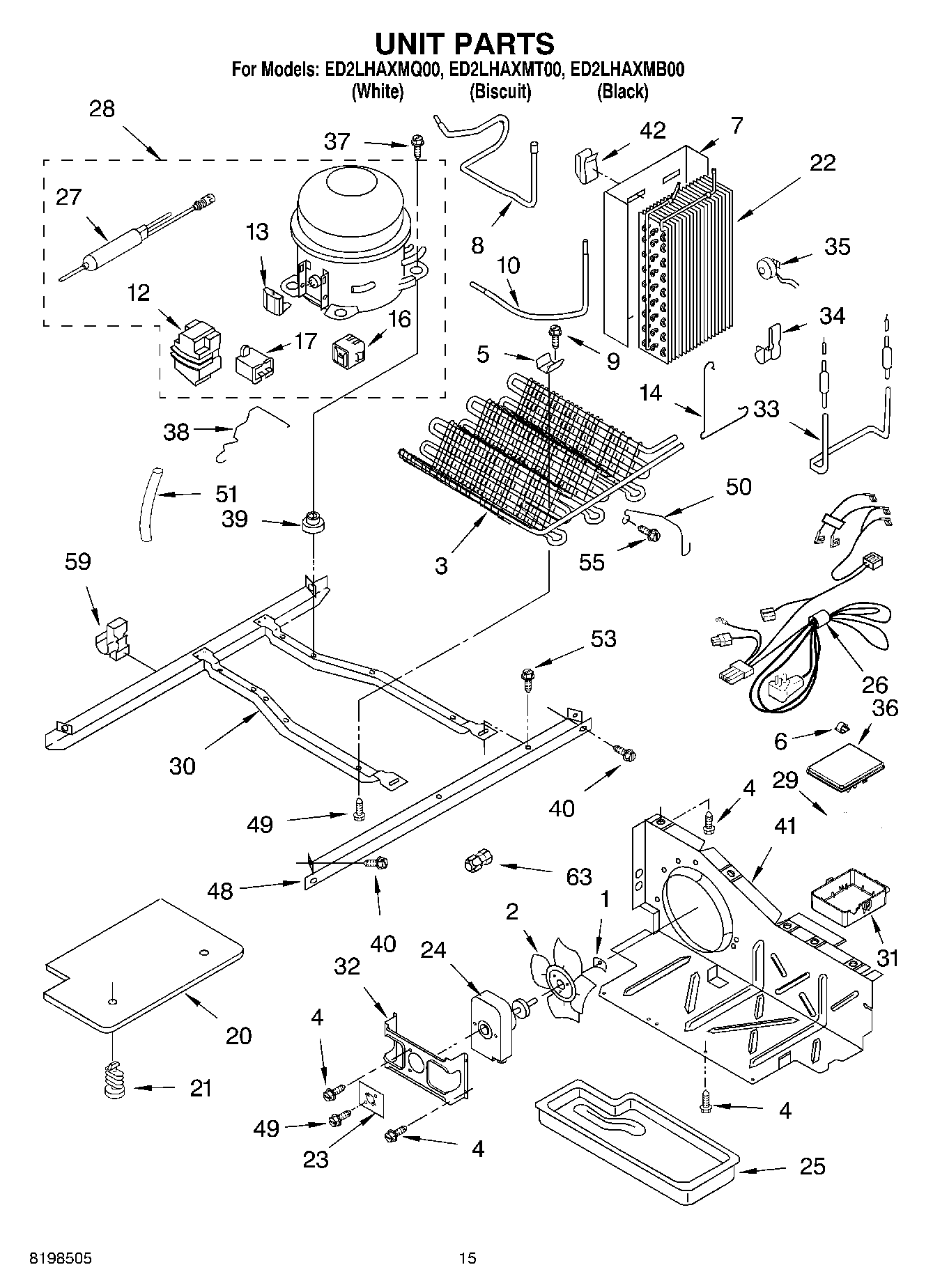

ED2LHAXMT00 09 – UNIT PARTS

ED2LHAXMT00 09 – UNIT PARTS

Written by

in

ED2LHAXMT00 09 – UNIT PARTS

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Blade, Fan
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5W10683556 Whirlpool Refrigerator Clip
6WP1115374 Whirlpool Refrigerator Clip
7Heat Shield
82205764 Whirlpool Refrigerator Tube
9W11544659 Whirlpool Refrigerator Screw
10Tube, Condenser to Heat Loop
12WP2162358 Whirlpool Refrigerator Terminal Cover
13OVERLOAD
14Clamp
168201786 Whirlpool Relay and Overload Start Kit
17WPW10662129 Whirlpool Refrigerator Run Capacitor
17WP4387764 Whirlpool Run Capacitor
20Unit Cover, Bottom
21489396 Whirlpool Refrigerator Clip
22WP2188822 Whirlpool Refrigerator Evaporator
23Insert, Bracket
24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
26Harness, Unit
27W10843121 Whirlpool Refrigerator Tube
28W10309990 Whirlpool Refrigerator Compressor
29Control, Electronic
302304903 Whirlpool Refrigerator Frame
31Box, Control
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323197 Whirlpool Refrigerator Heater
34Clip
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
36Box Cover
37SCREW
382223314 Whirlpool Refrigerator Clip
39WP4387558 Whirlpool Refrigerator Compressor Grommet
39W11661108 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
48Unit Mounting Rail
498281160 Whirlpool Screw
50Guard, Fan
51SLEEVE
53WP489427 Whirlpool Refrigerator Screw
55WP489478 Whirlpool Refrigerator Screw
59Clip, Wire & Tube
63FOLLOWING PARTS NOT ILLUSTRATED
63and
63VALVE, ACCESS (5/8“)
63978026 Whirlpool Refrigerator Primary Valve
63978027 Whirlpool Refrigerator Primary Valve
63978030 Whirlpool Refrigerator Valve
63WP978025 Whirlpool Refrigerator Valve
63VALVE, ACCESS (1/2“)
63WP4373559 Whirlpool Fitting
63876764 Whirlpool Refrigerator Primary Valve
63WPL ARI31347A7
