ED2LHAXMT10 09 – UNIT PARTS
Written by
in

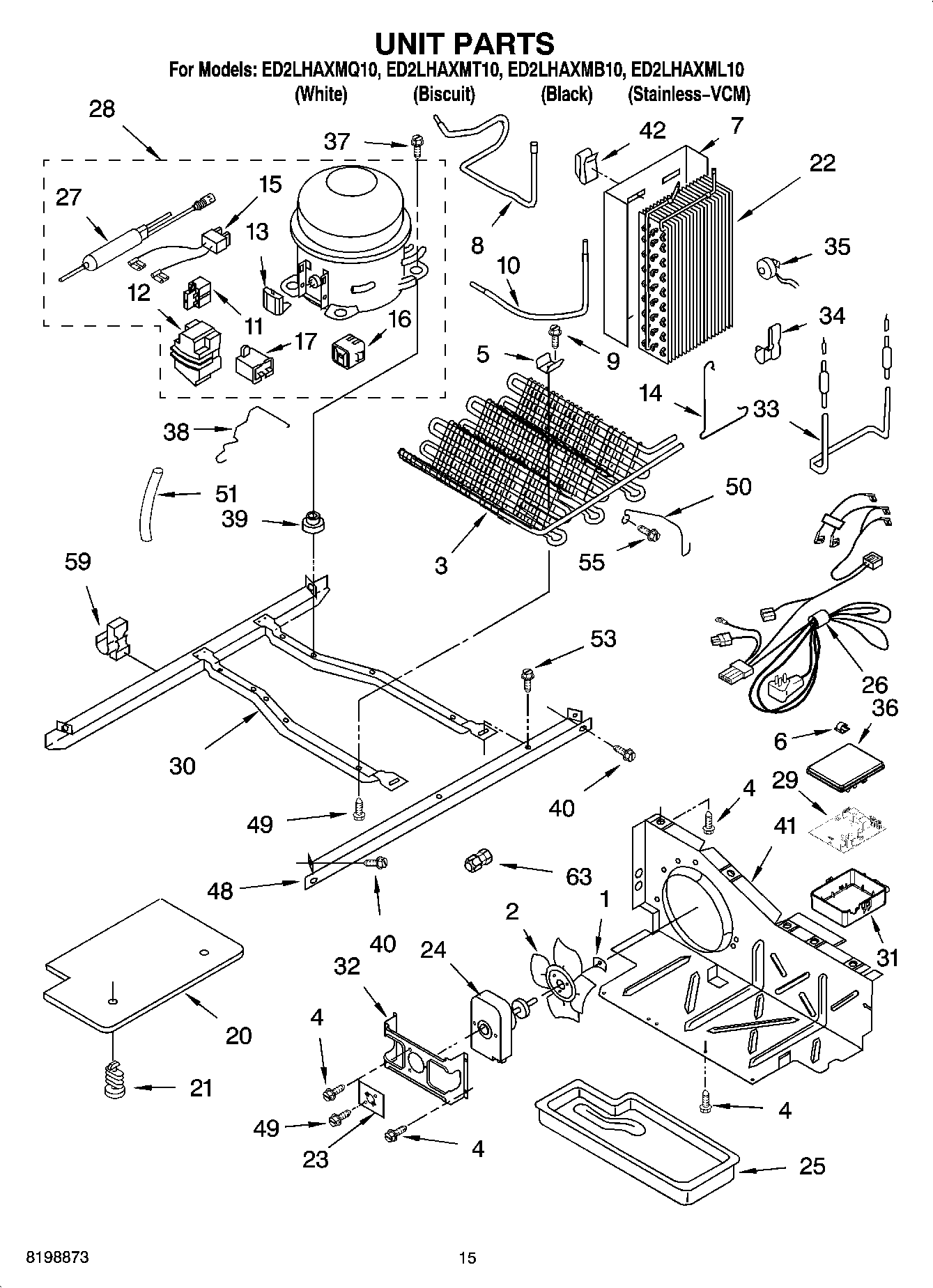

ED2LHAXMT10 09 – UNIT PARTS
Products
Position
Product
1
WP486692 Whirlpool Refrigerator Nut
2
Blade, Fan
3
Condenser Assembly
4
WP489464 Whirlpool Refrigerator Screw
5
W10683556 Whirlpool Refrigerator Clip
6
WP1115374 Whirlpool Refrigerator Clip
7
Heat Shield And Drain Pan
8
2205764 Whirlpool Refrigerator Tube
9
W11544659 Whirlpool Refrigerator Screw
10
Tube, Condenser to Heat Loop
11
W10920279 Whirlpool Refrigerator Start Relay
12
WP2162358 Whirlpool Refrigerator Terminal Cover
13
WP2187145 Whirlpool Refrigerator Overload
14
Clamp
15
WP2172890 Whirlpool Refrigerator Wire
16
8201786 Whirlpool Relay and Overload Start Kit
17
WPW10662129 Whirlpool Refrigerator Run Capacitor
20
Unit Cover, Bottom
21
489396 Whirlpool Refrigerator Clip
22
WP2188822 Whirlpool Refrigerator Evaporator
23
Insert, Bracket
24
W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25
WPW10614158 Whirlpool Refrigerator Evaporator Tray
26
Harness, Unit
27
W10843121 Whirlpool Refrigerator Tube
28
W10309990 Whirlpool Refrigerator Compressor
29
Control, Electronic
30
2304903 Whirlpool Refrigerator Frame
31
Box, Control
32
WP2181929 Whirlpool Refrigerator Bracket
33
WP2323197 Whirlpool Refrigerator Heater
34
Clip
35
WPW10225581 Whirlpool Refrigerator Defrost Thermostat
36
Box Cover
38
2223314 Whirlpool Refrigerator Clip
39
WP4387558 Whirlpool Refrigerator Compressor Grommet
39
876811 Whirlpool Grommet
40
489340 Whirlpool Refrigerator Screw
41
W10896764 Whirlpool Refrigerator Air Baffle
42
Clip, Heat Shield
48
Unit Mounting Rail
49
8281160 Whirlpool Screw
50
Guard, Fan
51
SLEEVE
53
WP489427 Whirlpool Refrigerator Screw
55
WP489478 Whirlpool Refrigerator Screw
59
W10169512 Whirlpool Clip
63
VALVE, ACCESS (5/8“)
63
WPL ARI31361A5
63
WPL ARI31360A6
63
876764 Whirlpool Refrigerator Primary Valve
63
978026 Whirlpool Refrigerator Primary Valve
63
978027 Whirlpool Refrigerator Primary Valve
63
978030 Whirlpool Refrigerator Valve
63
WP978025 Whirlpool Refrigerator Valve
63
VALVE, ACCESS (1/2“)
63
WP4373559 Whirlpool Fitting
63
WPL ARI31362A3
←
