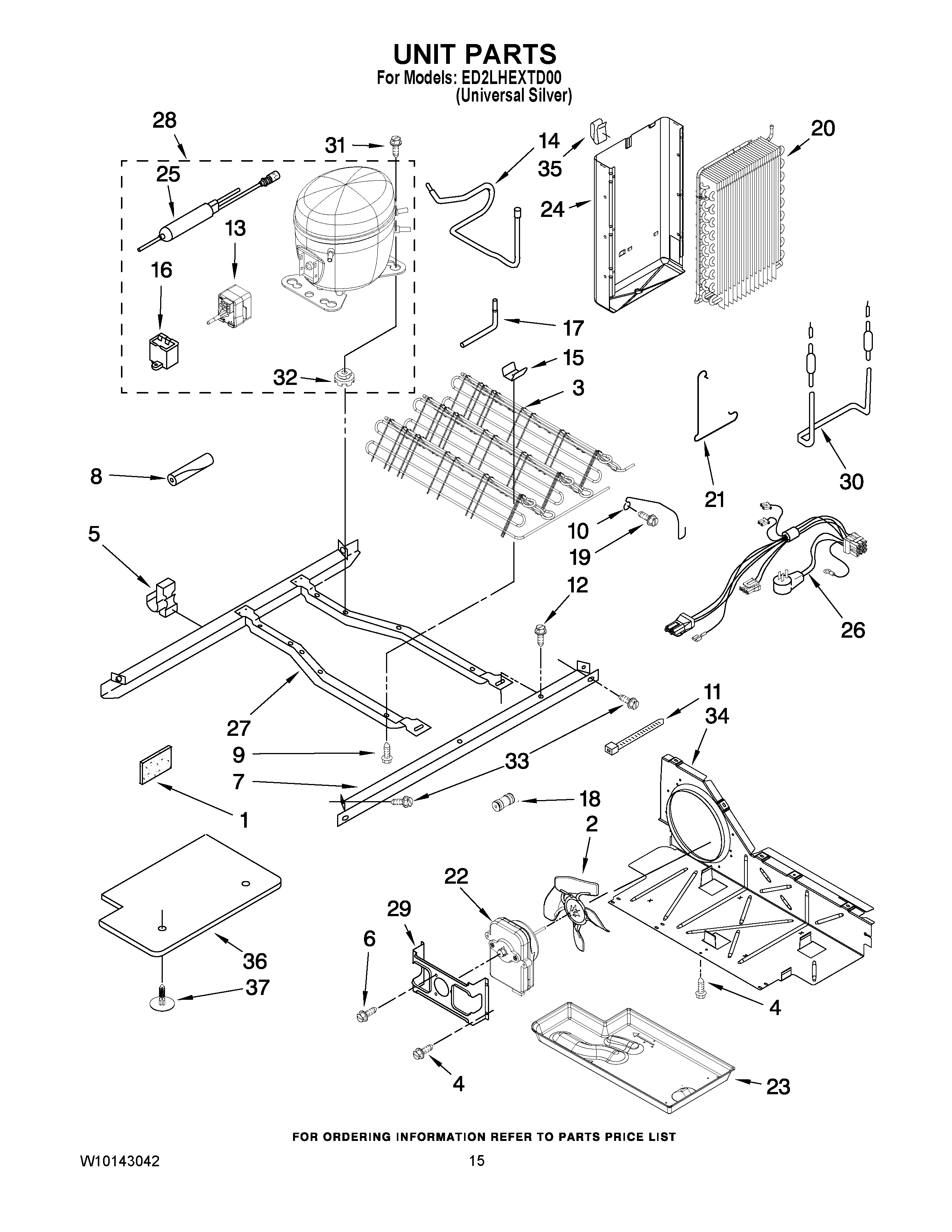

ED2LHEXTD00 09 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	WPW10196323 Whirlpool Refrigerator Rail Assembly
8	SLEEVE
9	W11544659 Whirlpool Refrigerator Screw
10	Guard, Fan
11	WPW10339879 Whirlpool Wire Tie
12	WP489427 Whirlpool Refrigerator Screw
13	WP2188831 Whirlpool Refrigerator Start Device
14	2220642 Whirlpool Refrigerator Tube
15	W10683556 Whirlpool Refrigerator Clip
16	WP65889-4 Whirlpool Refrigerator Capacitor
17	W10858105 Whirlpool Refrigerator Tube
18	WPW10334458 Whirlpool Refrigerator Connector
19	WP489478 Whirlpool Refrigerator Screw
20	WP2188822 Whirlpool Refrigerator Evaporator
21	Clamp
22	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
23	WPW10614158 Whirlpool Refrigerator Evaporator Tray
24	WPW10194474 Whirlpool Refrigerator Shield
25	WPW10143759 Whirlpool Dryer Filter
26	UNIT, HARNESS (INCLUDES POWER CORD)
27	2304903 Whirlpool Refrigerator Frame
28	W10355489 Whirlpool Refrigerator Compressor
29	WP2181929 Whirlpool Refrigerator Bracket
30	WP2323197 Whirlpool Refrigerator Heater
32	876811 Whirlpool Grommet
32	W11661108 Whirlpool Grommet
33	489340 Whirlpool Refrigerator Screw
34	W10896764 Whirlpool Refrigerator Air Baffle
35	Clip, Heat Shield
36	W11115203 Whirlpool Control Panel
37	489396 Whirlpool Refrigerator Clip
